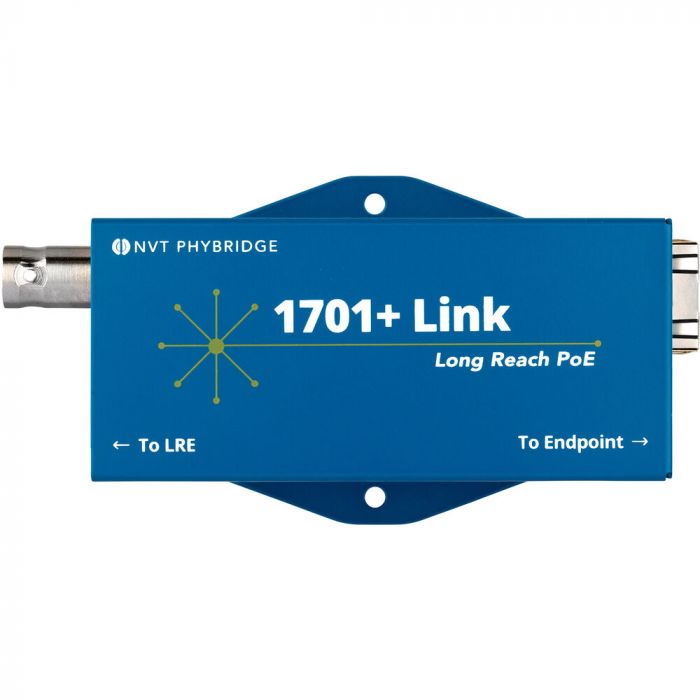

The NV-EC1701PLS-LK 1701+ Link Adapter from NVT is an endpoint solution compatible with 1701+ Base extender (available separately). When used in conjunction with the 1701+ Base extender, the pair will function as an extender solution to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000 . This unit can be powered locally with an optional adapter.
Pairs with 1701+ Base extender
Provides up to 25W of power on 2 pairs if 1701+ Link adapter is powered by 1701+ Base extender
328 reach from the adapter to IP endpoint via Cat 5 or higher cable
Negotiates with 802.3af/at IP endpoint
Supports RG-59, RG-6, RG-11, and Cat 3 or higher coax cables
Up to 420 Mb/s data rate (line side) with up to 8000 reach
1000 Mb/s IEEE side data rate
Can be locally powered (power adapter available separately)
Mean time before failure (MTBF) up to 20+ years
LED Indicators for power, link, and data
NVT Phybridge NV-EC1701PLS
| Interface | Line Side: 1 x BNC Port IEEE Side (IP Device): 1 x RJ45 Port (Will Negotiate Power with 802.3af/at Compliant Endpoints) |
| Data Rate | Line Side: Up to 420 Mb/s, HPAV2.1 (2-86 MHz) IEEE Side: 1000 Mb/s |
| Power Supply | 37 to 55 VDC 50 W Locally Powered, Delivered on 4 Pairs 25 W Locally or Line Powered, Delivered on 2 Pairs |
| DC Input | 37 to 55 VDC via Optional External AC/DC Power Adapter (Available Separately) |
| Power Consumption | 2 W |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 95% (Non-Condensing at 95°F / 35°C) |
| MTBF | 20+ Years |
| Certifications | EMC Emissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2016 Class B Immunity: EN 55024:2010, EN 50121-4:2016 Safety UL 60950-1 2nd Ed 2019-05-09, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018 Environment RoHS Directives 2011/65 & 2015/863 |
| Dimensions | 4.15 x 2.11 x 1.33' / 10.5 x 5.4 x 3.4 cm |
| Weight | 4.87 oz / 138 g |
Packaging Info
| Package Weight | 0.415 lb |
| Box Dimensions (LxWxH) | 5.5 x 2.9 x 1.8' |
