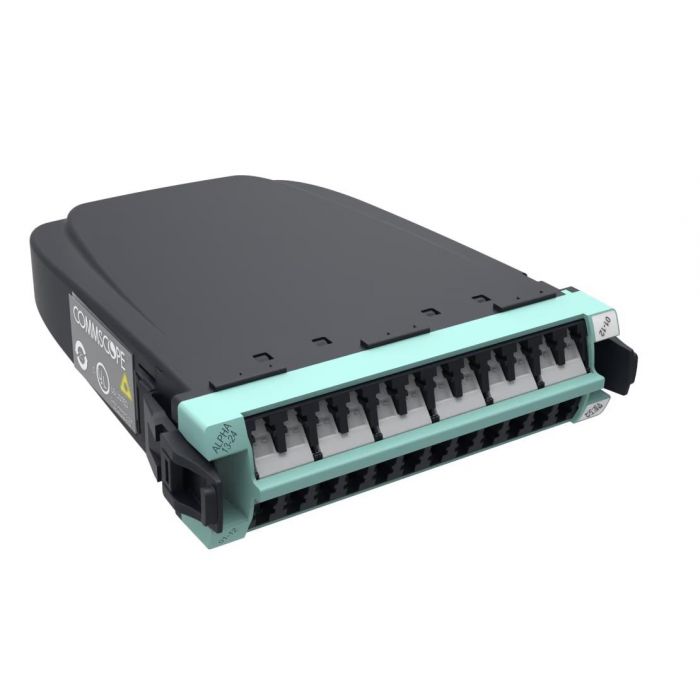

Commscope 760206532 | 360DMIS-24LC-LS g2 ll multimode om4 mpo 12 distribution module, 24 lc to 2x12f mpo's pinned, internal shutters
Precio especial $20,612.00 IVA incluido + Envio $150 MXN
Antes $23,910.00
Disponible 1 Pzas
Antes $23,910.00
Disponible 1 Pzas
sku: 360DMIS-24LC-LS
pub
MX0000091926
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber module |
| Product Series | G2 |
General Specifications
| Functionality | Breakout |
| Color, front | Aqua |
| Color, rear | Gray |
| Interface, front | LC/UPC |
| Interface, rear | MPO |
| Interface Feature, rear | Key up/up | Pinned |
| Polarity | Method B |
| Shuttered | Yes |
| Total Fibers, quantity | 24 |
Dimensions
| Height | 25.51 mm | 1.004 in |
| Width | 95.91 mm | 3.776 in |
| Depth | 119.69 mm | 4.712 in |
Optical Specifications
| Fiber Mode | Multimode |
| Fiber Type | OM4 |
| Insertion Loss, maximum | 0.47 dB |
Environmental Specifications
| Qualification Standards | IEC 61753-1 | TIA-568.3-D |
| Safety Standard | CE | CSA | UL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.109 kg | 0.240 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
| Marca | Otros |
|---|---|
| MPN: | 360DMIS-24LC-LS |
