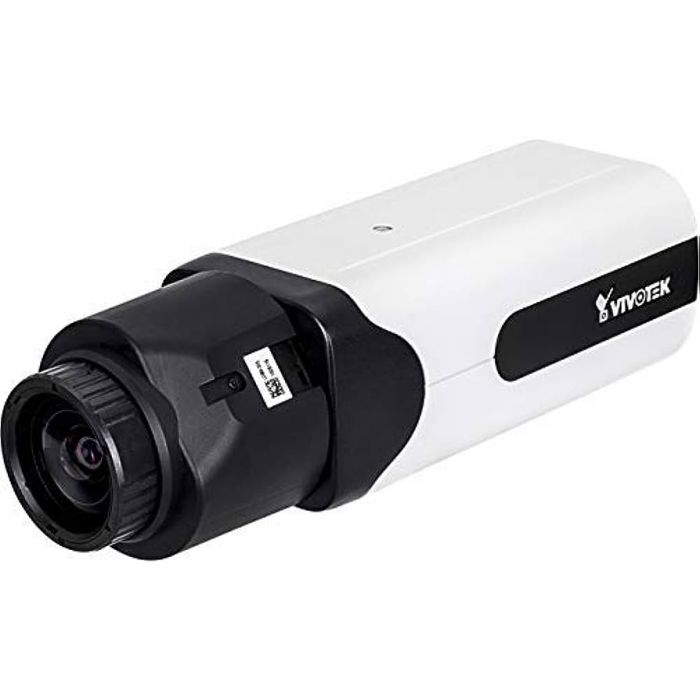

Vivotek IP9181-H caja camara 5mp 41 9 mm interior audio bidireccional di x
Precio especial $3,326.00 IVA incluido + Envio $150 MXN
Antes $3,858.00
Disponible 2 Pzas
Antes $3,858.00
Disponible 2 Pzas
sku: IP9181-H
pub
MX0000091911
| Informacion tecnica | |
|---|---|
| Model | IP9181-H |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features | |
| Image Sensor | 1/1.8' Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Vari-Focal, Remote Back Focus via UI |
| Focal Length | f = 4.1 ~ 9 mm |
| Aperture | F1.6 ~ F2.4 |
| Iris Type | DC-iris (P-iris reserved) |
| Field of View | 46° ~ 90° (Horizontal) 35° ~ 68° (Vertical) 58° ~ 117° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Minimum Illumination | 0.07 lux @ F1.6 (Color) 0.001 lux @ F1.6 (B/W) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: 30 fps @ 2560x1920 60 fps @ 1920x1080 MJPEG: 12 fps @ 2560x1920 30 fps @ 1920x1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 57 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | Timestamp, text overlay, flip & mirror configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, video rotation, 3D noise reduction, defog, snapshot focus, lens profile, DIS |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Event Trigger | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Event Action | Event notification using digital output, HTTP, SMTP, FTP, NAS server, SD Card, push notification File upload via HTTP, SMTP, FTP, NAS server and SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100/1000Mpbs Network/PoE connection Audio input Audio output DC 12V power input AC 24V Power input Digital input*3 Digital output*1 RS485 |
| LED Indicator | System power and status indicator |
| Power Input | DC 12V AC 24V IEEE 802.3af/at PoE Class 0 |
| Power Consumption | Max. 9.7 W |
| Dimensions | 210 (D) x 70 (W) x 63 (H) mm |
| Weight | 766 g |
| Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
| Included Accessories | |
| CD | User s manual, quick installation guide, Shepherd, VAST |
| Packing Contents | Quick installation guide, mounting bracket, screw pack, lens |
| Marca | Vivotek |
|---|---|
| MPN: | IP9181-H |
