Zebra AN510-CSCL60003US evm slim ip67-rated rfid antenna for indooroutdoor use vesa studded mount fcc freq size: 98 x inches
Precio especial $8,354.00 IVA incluido + Envio $150 MXN
Antes $9,691.00
Disponible 1 Pzas
Antes $9,691.00
Disponible 1 Pzas
sku: AN510-CSCL60003US
pub
MX0000091812

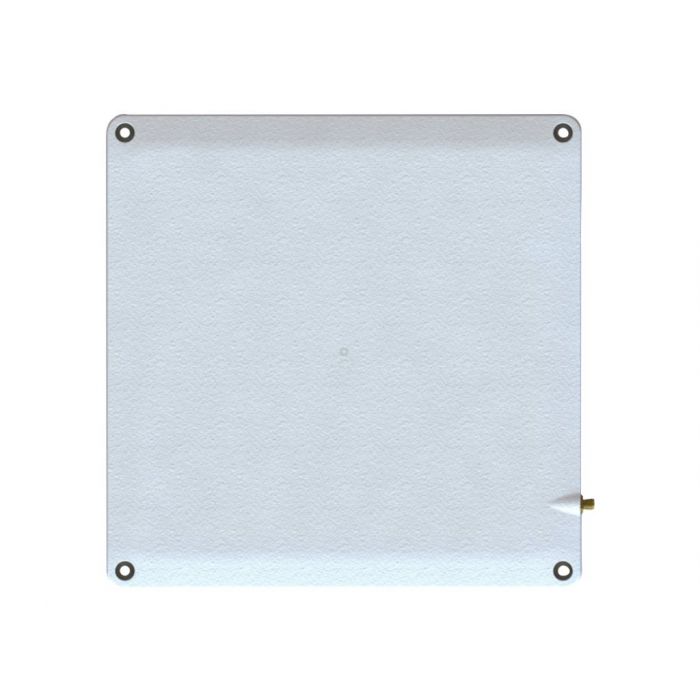

AN510-CSCL60003US - Zebra AN510 Ultra Rugged, Low Profile VESA Studded Mount RFID Antenna (US Frequency)
The Zebra AN510 is a TAA Compliant RFID Antenna with an IP67 Rating is suitable for use in a wide range of indoor and outdoor environments including shopping areas, receiving dock doors, ceilings, out on the tarmac, and on conveyor belts. The outer housing is designed to be sleek and discrete enough to be at home in any business, but rugged enough for outdoor environments.
Zebra AN510-CSCL60003US Antenna Specifications
- Freq. Range: 902-928 MHz
- Gain: 8.5 dBic
- Front to Back: Ratio 20dB
- Polarization: Right-hand Circular Polarization
- 3db Beam Width: 68° in both planes
- Dimensions: 9.85 in. L x 9.85 in. W x 0.55 in. D
- Connector: SMA Female
- Weight: 1.6 lbs./0.75 kg
- Casing: UV Resistant ABS
General | |
---|---|
Product Type | Antenna |
Product Material | UV Stable ABS |
Width | 9.8 in |
Depth | 0.6 in |
Height | 9.8 in |
Weight | 26.45 oz |
Localization | United States |
Antenna | |
Antenna Placing / Mounting | Outdoor, indoor, VESA bracket mounting |
Frequency Range | 902 - 928 MHz |
Gain | 8.5 dBi |
Voltage Standing Wave Ratio (VSWR) | 1.3:1 |
Horizontal Beamwidth | 68° |
Vertical Beamwidth | 68° |
Cabling & Wiring | |
Connector Provided | 1 x SMA female |
Miscellaneous | |
Features | Rugged, IP67 protection, right hand circular polarization, low profile |
TAA Compliant | Yes |
Environmental Parameters | |
Min Operating Temperature | -4 °F |
Max Operating Temperature | 131 °F |
Marca | Zebra |
---|---|
MPN: | AN510-CSCL60003US |
