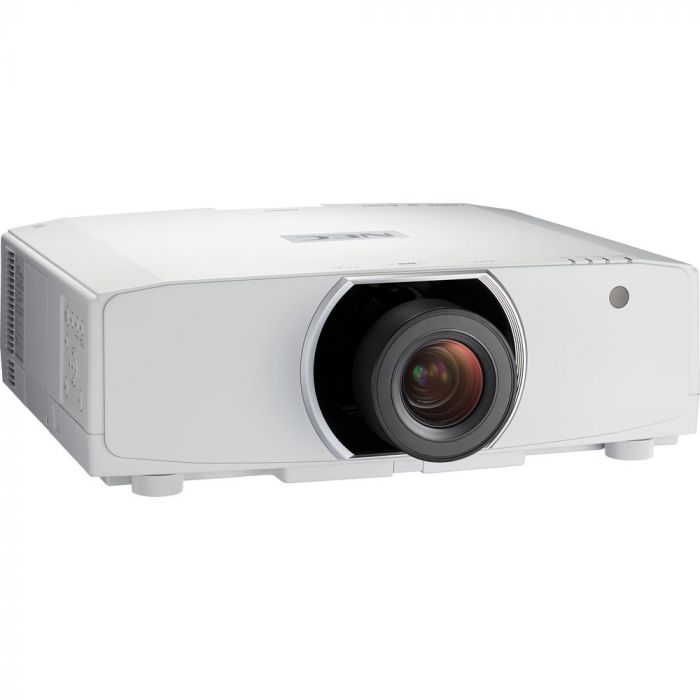

Nec NP-PA803U pa803u data projector large venue 8000 ansi lumens lcd 1080p (1920x1080) white
Precio especial $98,223.00 IVA incluido + Envio $150 MXN
Antes $113,939.00
Disponible 0 Pzas
Antes $113,939.00
Disponible 0 Pzas
Agotado
pub
MX0000091731
NEC’s PA803U is a 8000-lumen widescreen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals. - 4K Ready - HDR10, BT.2020 signal format applicable for use with the “Ultra HD Blu-ray” and “4K TV broadcasting” - Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list) - TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out - Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software - High performance video processing/scaling creates life-like images - Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control - 8000-lumen brightness enhances images for most applications
Technical Information
| Projector | |
|---|---|
| Projector native resolution | 1080p (1920x1080) |
| Screen size compatibility | 40 - 500' |
| Projection distance | 29.1 - 822.8' (0.74 - 20.9 m) |
| Contrast ratio (typical) | 10000:1 |
| Vertical synchronization (min) | 0.024 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Matrix size | 0.76' |
| Keystone correction, vertical | -30 - 30° |
| Keystone correction, horizontal | -40 - 40° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 153 kHz |
| Projection technology | LCD |
| Projector brightness | 8000 ANSI lumens |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 3000 h |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 420 W |
| Service life of light source (economic mode) | 5000 h |
| Lens system | |
| Number of optional lenses supported | 8 |
| Focus | Auto |
| Horizontal lens shift range | -0.3 - 0.3° |
| Vertical lens shift range | -0.1 - 0.6° |
| Video | |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160 |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| HDMI connector type | Full-size |
| HDBaseT port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Features | |
| Sync-on-green (SOG) | Yes |
| Separate H/V sync | Yes |
| Composite sync | Yes |
| HDCP | Yes |
| Noise level | 39 dB |
| Noise level (economic mode) | 33 dB |
| Certification | UL60950-1, FCC 15 B (ANSI C63.4.2014), C22.2 No.60950-1-07, ICES-003 6 (ANSI C63.4:2014) |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Design | |
| Product type | Large venue projector |
| Product colour | White |
| Placement | Desktop, Ceiling |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 566 W |
| Power consumption (standby) | 0.7 W |
| Power consumption (PowerSave) | 0.3 W |
| Power consumption (economy mode) | 390 W |
| Software | |
| Mac compatibility | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Weight & dimensions | |
| Weight | 22.5 lbs (10.2 kg) |
| Width | 19.8' (503 mm) |
| Depth | 16.2' (411 mm) |
| Height | 6.61' (168 mm) |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Batteries included | Yes |
| Other features | |
| RS-232 ports | 1 |
| Marca | Nec |
|---|---|
| MPN: | NP-PA803U |
