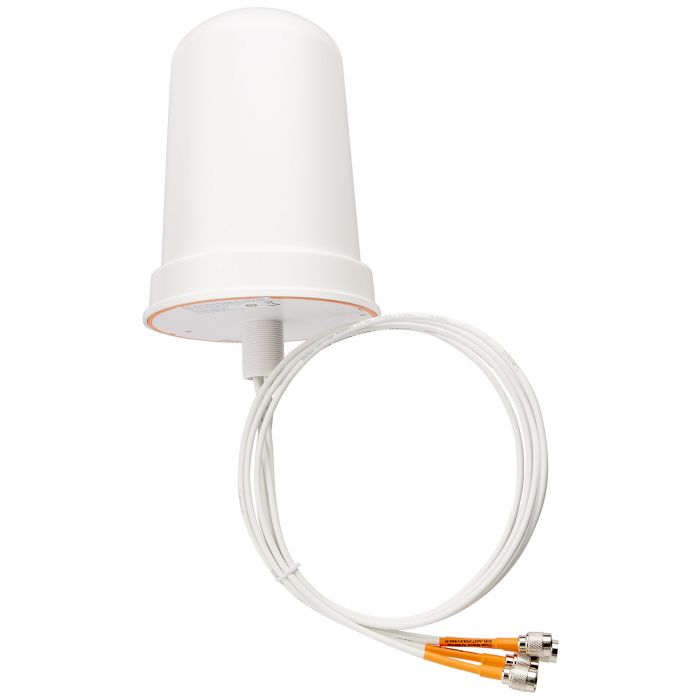

Cisco AIR-ANT2544V4M-RS= network antenna omni-directional rp-tnc 4 dbi
Precio especial $24,507.00 IVA incluido + Envio $150 MXN
Antes $28,428.00
Disponible 0 Pzas
Antes $28,428.00
Disponible 0 Pzas
Agotado
pub
MX0000091621
*Consulte antes de ofertar
The next generation of Cisco® Aironet® 802.11n access points – the Cisco Aironet 1600e, 2600e, 3600e Series and 1550 Series – requires the use of dual-band external antennas to make them fully functioning units. As these access points take greater advantage of the multiple-input multiple-output (MIMO) features supported under the 802.11n standard, the number of radio transceivers per frequency band has increased. Using dual-band antenna ports allows the access point to support these added transceivers while maintaining a reasonably low number of antenna connections. Each dual-band antenna can transmit or receive Wi-Fi signals in both the 2.4-GHz and 5-GHz bands simultaneously.
Technical Information
| Performance | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Networking standards | IEEE 802.11n |
| Frequency band | 2.4/5 GHz |
| Impedance | 50 O |
| Antenna gain (5 GHz) | 4 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Features | |
| Connector gender | Male |
| Antenna gain level (max) | 4 dBi |
| Networking standards | IEEE 802.11n |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | < 2:1 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 O |
| Product colour | White |
| Cable length | 94.5' (2.4 m) |
| Antenna gain (5 GHz) | 4 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna connector type | RP-TNC |
| Compatible products | Cisco Aironet 1600e, 2600e, 3600e |
| Technical details | |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | < 2:1 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 O |
| Cable length | 94.5' (2.4 m) |
| Antenna gain (5 GHz) | 4 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna connector type | RP-TNC |
| Compatible products | Cisco Aironet 1600e, 2600e, 3600e |
| Harmonized System (HS) code | 85177100 |
| Network | |
| Networking standards | IEEE 802.11n |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Packaging content | |
| Quick installation guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Marca | Cisco |
|---|---|
| MPN: | AIR-ANT2544V4M-RS= |
