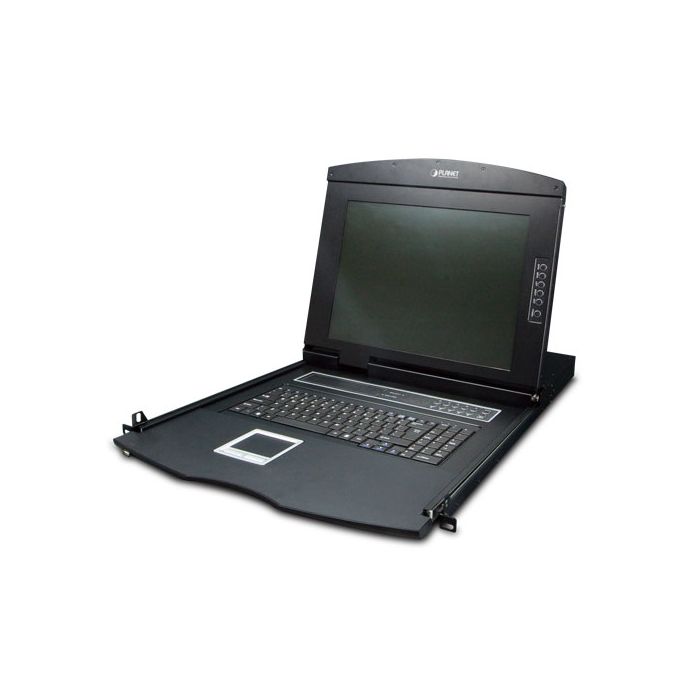

Planet KVM-210-08M monitor con teclado y trackpad kvm para rack de 1u 8 puertos vga
Precio especial $20,488.00 IVA incluido + Envio $150 MXN
Antes $23,766.00
Disponible 0 Pzas
Antes $23,766.00
Disponible 0 Pzas
Agotado
pub
MX0000091486
| Fácil de instalar Con el exclusivo diseño de riel separado, ayuda a instalar la consola KVM fácilmente. Además, cuando existe la necesidad de mantener la consola, el administrador puede desinstalar fácilmente el dispositivo sin afectar el servidor de arriba o de abajo. |
|
Operación autónoma El KVM-210-08M permite acceder y controlar hasta 8 computadoras desde la plataforma de control LCD. |
|
Operación en cascada Al conectarse en cascada a 8 conmutadores KVM, puede controlar hasta 64 servidores. |
|
Cambio de computadora Hay tres métodos convenientes para acceder a cualquier computadora conectada a la instalación: Botón de selección de puerto. Teclas de acceso rápido en el teclado. OSD (visualización en pantalla). |
Hardware
| Numero de puertos | 8 | ||||||||||
| Máximo | 64 en cascada (KVM-210-08 x 8) | ||||||||||
| Puertos de PC |
|
||||||||||
| Panel de selección de puerto |
|
||||||||||
| Panel LCD |
|
||||||||||
| Botón LCD |
|
||||||||||
| Puertos de concentrador USB de consola | 3 x USB 2.0 tipo A hembra | ||||||||||
| Teclado | 100 | ||||||||||
| Dimensiones | 445 x 611 x 44,5 mm | ||||||||||
| Peso | 17,52 kg | ||||||||||
| Requisitos de energía | 12 V CC, 4 A | ||||||||||
| Instalación |
|
||||||||||
| Temperatura de funcionamiento | 0 ~ 50 grados C | ||||||||||
| Humedad de funcionamiento | 0 ~ 80% | ||||||||||
| Garantía | 3 años | ||||||||||
Datos en ingles:
Easy Switching, Efficient Management PLANET KVM-210-08M Combo VGA LCD KVM Switch features an integrated 17' LED-backlit LCD panel allowing access to and control up to 8 computers from a single console (keyboard, mouse and monitor). Simply use the supplied Combo VGA cable set to link the KVM-210-08M to the console ports of your KVM Switch, regardless of the connected port interface -- USB or PS/2. Easy to Install With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below. Computer Switching There are three convenient methods to access any computer connected to the installation: - Port select button - Hotkeys on keyboard - OSD (on screen display) Security Two level password security only authorizes up to one user and an administrator with a separate profile for each user. Powerful Mouse/Keyboard Support In the present computer applications, a mouse has become an indispensable device. The KVM-210-08M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.
Technical Information
| Technical details | |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Ports & interfaces | |
| Console ports | VGA (D-Sub) |
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 3 |
| VGA (D-Sub) ports quantity | 8 |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Certification | CE, FCC |
| Rack capacity | 1U |
| Display | |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.2 cm (17') |
| Power | |
| Output current | 4 A |
| DC input voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 611 mm |
| Height | 44.5 mm |
| Weight | 17.5 kg |
| Certificates | |
| Certification | CE, FCC |
| Marca | Planet |
|---|---|
| MPN: | KVM-210-08M |
