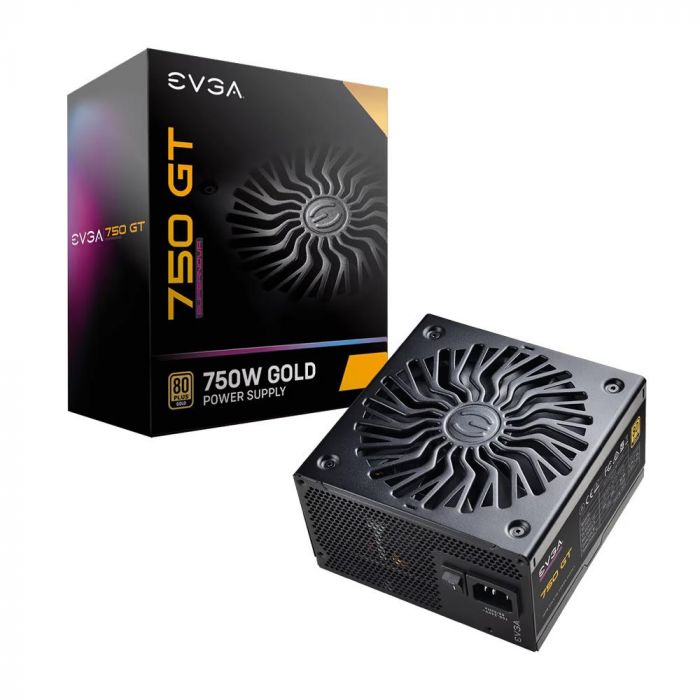

Evga 220-GT-0750-Y1 supernova 750 gt power supply unit w 24-pin atx black
Precio especial $2,683.00 IVA incluido + Envio $150 MXN
Antes $3,112.00
Disponible 0 Pzas
Antes $3,112.00
Disponible 0 Pzas
Agotado
pub
MX0000091411
REFINEMENT IN PERFORMANCE AND DESIGN Upgrade both aesthetics and electronic components with a unique radial design fan grill, compact 150mm length and width, and 100% Japanese capacitors.
80 PLUS GOLD EFFICIENCY 80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE +12V OUTPUT Provides a stable output for compatibility with the latest hardware.
FULLY MODULAR DESIGN Choose the cables you need to make cable management simple and clean.
AUTO ECO MODE Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.
Full Protection: OVP - Over Voltage Protection OCP - Over Current Protection OPP - Over Power Protection SCP- Short Circuit Protection UVP - Under Voltage Protection Dual OTP - Over Temperature Protection on the Primary and Secondary PCB
Technical Information
| Cooling | |
|---|---|
| Fan diameter | 5.31' (13.5 cm) |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| Silent mode | Yes |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
| Certification | TUV, CB, FCC, RCM, cTUVus, BSMI, CCC, Compliance with ErP Lot 3 2014 Requirement |
| Bearing technology | FDB |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Certification | TUV, CB, FCC, RCM, cTUVus, BSMI, CCC, Compliance with ErP Lot 3 2014 Requirement |
| Product colour | Black |
| Fan diameter | 5.31' (13.5 cm) |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 23.6' (60 cm) |
| SATA power cable length | 550,650,750 mm |
| Peripheral (Molex) power cable length | 550,650,750 mm |
| PCI Express power cable length | 33.5' (85 cm) |
| CPU power cable length | 27.6' (70 cm) |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Modular |
| EPS power connector (4+4 pin) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging content | |
| Cables included | AC, CPU, PCIe |
| Weight & dimensions | |
| Width | 5.91' (150 mm) |
| Depth | 5.91' (150 mm) |
| Height | 3.39' (86 mm) |
| Weight | 5.6 lbs (2.54 kg) |
| Packaging data | |
| Cables included | AC, CPU, PCIe |
| Technical details | |
| Sustainability certificates | CE, RoHS, WEEE |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Certification | TUV, CB, FCC, RCM, cTUVus, BSMI, CCC, Compliance with ErP Lot 3 2014 Requirement |
| Marca | Evga |
|---|---|
| MPN: | 220-GT-0750-Y1 |
