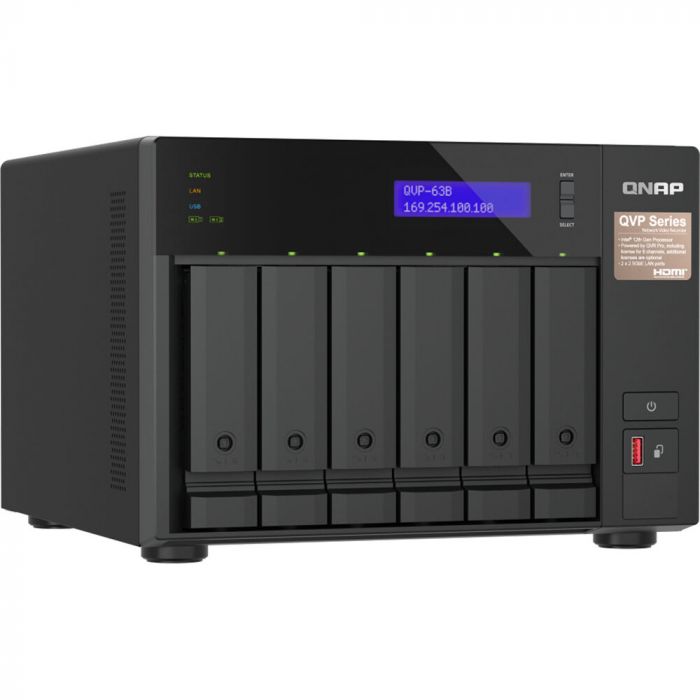

Qnap QVP-63B-US Qnap-nvr 6 bahias 8canales vms integrado vigilancia iphdmi(QVP-63B-US)
Precio especial $43,116.00 IVA incluido + Envio $150 MXN
Antes $50,015.00
Disponible 1 Pzas
Antes $50,015.00
Disponible 1 Pzas
sku: QVP-63B-US
pub
MX0000091374
General Features
Network Connectivity
The QVP-63B integrates with your network through two 2.5G Ethernet ports.
High-Speed USB
One USB-C and two USB-A 3.2 Gen 2 ports are available for connecting 10 Gb/s compatible devices.
Direct Playback
Connect a 4096 x 2160 resolution, 30 Hz 4K monitor using the HDMI 1.4b port to view surveillance footage directly from the NAS as though it were a dedicated workstation.
Upgrade Ready
Install up to two M.2 NVMe PCIe 4.0 cache drives to boost the performance of your NAS. Additionally, two DDR4 SO-DIMM slots support up to 64GB of memory. Expansions such as an entry level graphics card may be installed into the PCIe 4.0 x16 and x4 slots.
MP4 Videos
Videos are saved using the non-proprietary MP4 video format.
Comprehensive Camera Support
The QVP-63B supports thousands of camera models from over 190 brands with a variety of image formats (including cameras that use ONVIF and RTSP/ HTTP streaming). Even USB webcams are supported, allowing home and budget-conscious users to quickly build surveillance solutions tailored to their environment while providing convenient camera management.
Motion Detection with USB Webcams
The QVP-63B provides motion detection even for entry-level cameras and USB webcams. As long as your camera can stream its footage to the QVR Pro appliance (e.g. through RTSP protocol) it supports motion detection, allowing you to build a budget-friendly, motion-detecting surveillance system.
QVR Pro
QVR Pro Desktop Client
The QVR Pro Client software can be installed on Windows and Mac devices, allowing you to monitor from different platforms and flexibly switch from live view or playback mode to take full control over monitored areas.
Live View & Playback
Monitor the live view of multiple channels and play recordings on a single interface. You can also view recordings at a specific time by clicking the timeline or by defining a time range.
Region of Interest
The Region of Interest (ROI) feature allows for viewing multiple regional images from the same camera in live view and playback mode. You can define and enlarge multiple areas to watch the area more closely.
Qdewarp Technology
Qdewarp enables users to view standard fisheye camera recordings in proportional ratios and sizes without affecting original recordings. The distorted parts on the edges can be turned into a clear panoramic view.
Multiple Notification Methods
The event notification provides multiple ways of being informed of emerging events, including flashing red borders of channels, alert buzzers, and the motion icon on the e-map.
QVR Pro Client Mobile App
The QVR Pro Client mobile app allows you to remotely monitor multiple channels simultaneously. If your network connection is slow or metered/capped, you can choose the low-bandwidth mode to view a bandwidth-optimized stream without affecting the quality of recordings. In addition, you can remotely set the camera s preset point or control the PTZ cameras within the app.
Additional Surveillance Applications
QVR Center
Centrally manage multiple QVR Pro servers installed in different areas. You can also centrally monitor live feeds, play back recordings, and receive event notifications from multiple QVR Pro servers, helping you reduce response times to events.
QVR Guard
Protect QVR Pro from system failure to ensure uninterruptible surveillance recordings. If your QVR Pro fails or crashes, QVR Guard automatically takes over recording tasks, providing dependable redundancy for your surveillance system.
QVR Face
Obtain real-time video analytics from connected cameras and use them to set profiles, groups, and event notifications for instant facial recognition. This is ideal for smart retail, door access management, and VIP welcoming systems.
Computing
| CPU | Quad-Core |
| Processor | Intel Core i3 |
| GPU | Intel UHD 730 Graphics |
| Total Installed Memory | 16 GB DDR4 |
| User-Replaceable Memory | 1 x 16 GB |
| Total Memory Slots | 2 x SO-DIMM |
| Maximum Memory Capacity | 64 GB |
| Flash Memory | 5 GB |
General
| Number of Bays | 6 x 2.5'/3.5' 2 x M.2 (2280) |
| Inputs/Outputs | 1 x USB-C 3.1/3.2 Gen 2 2 x Mini-USB 3.1/3.2 Gen 2 1 x HDMI 1.4b 2 x RJ45 2.5GbE |
| Compatible Drive Interface | SATA III |
| Media Card Slots | None |
| Form Factor | Desktop |
| RAID | RAID 0, 1, 10, 5, 6 |
| Hot-Swap Support | Yes |
| PCI Expansion | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 |
| Wake on LAN | Yes |
Networking
| Max Cameras Supported | 36 |
Software
| Installed Operating System | QVR Pro |
| Supported File Systems | Internal: EXT4 |
| OS Compatibility | Windows 7 or Later macOS 10.11.5 or Later Ubuntu 16.10 or Later *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Supported Browsers | Chrome, Firefox, Internet Explorer |
Security
| Security Features | Kensington Security Slot, Lockable Bay Door |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | Internal Power Supply |
| Power Consumption | 79.363 W (Typical) 39.911 W (Standby) |
| PSU Wattage | 1 x 250 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
Physical
| Status Monitoring | LED Indicator |
| Audible Alarm | Yes |
| Cooling | 2 x 92 mm Fans |
| Noise Level | 23.8 dBA |
| Built-In Speakers | None |
| IR Sensor | None |
| Dimensions | 11.06 x 10.41 x 7.41' / 280.92 x 264.41 x 188.21 mm |
| Weight | 13.9 lb / 6.3 kg |
| Marca | Qnap |
|---|---|
| MPN: | QVP-63B-US |
