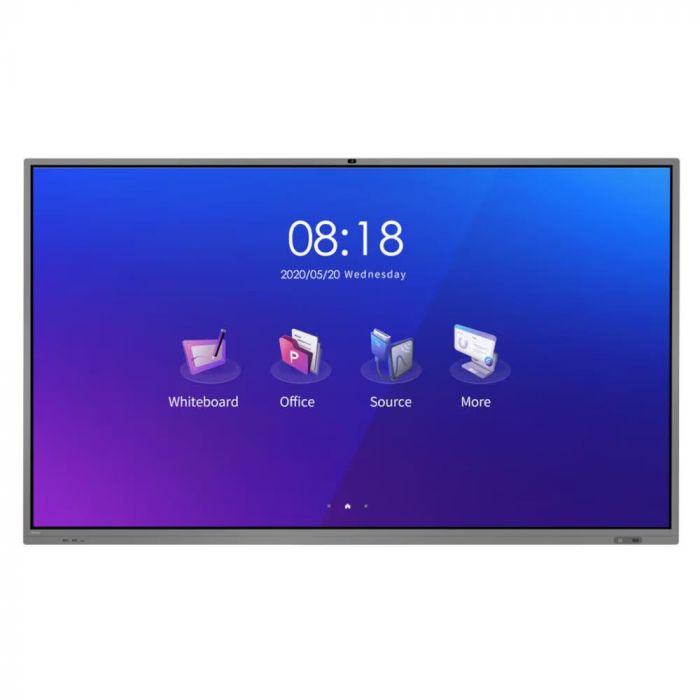

Horion 65M5A pizarron interactivo multi-touch 65 pulg 3gb 64gb compatible con windows android linux mac os x
Antes $33,530.96
Disponible 0 Pzas
Pizarrones interactivos horion pantalla 4k uhd + interfaz de usuario 4k, efecto de visualización más nitido, excelente calidad de imágenes, textos y videos, supera las pantallas convencionales 4k, brindando una vista mas vívida.
Cámara de 13 megapíxeles imagen nitida y clara para reuniones a varias escalas. horion adopta un chipset completamente nueva con arquitectura arm a73 que ofrece un rendimiento ultrapotente, una respuesta rápida y una capacidad informática excelente, que funciona de manera estable bajo alta frecuencia continua.
Panel d-led
Resolucion uhd rgb 3840 x 2160
Contraste 350 cd/m2
Tiempo de respuesta 8ms
Refresh 60hz
Angulo de vision 178 grados
Gama de colores 1.07 b
Tiempo de vida 30,000 horas
Sistema operativo android 8
Chipset msd8386 quadcore
3gb ram
64gb de almacenamiento
Hdmi-in x 2
Lan x 2
Dp-in x 1
Vga-in x 1
Audio-in x 1
Usb 2.0 x 4
Ops(opcional)x 1
Touch-usb x 1
Spdif-out x 1
Hdmi-out x 1
Audio-out x 1
Type-c x 1
Rs232-in x 1
Datos en ingles:
|
Display
|
|
|
Certification
|
65M5A
|
|
Size
|
64.5'
|
|
Backlight type
|
D-LED
|
|
Brand
|
3840*2160(UHD)(RGB)
|
|
Brightness
|
350cd/m²
|
|
Contrast ratio
|
1200:1
|
|
Response time
|
8ms
|
|
Pixel pitch
|
0.372mm*0.372mm
|
|
Refreshing frequency
|
60Hz
|
|
Viewing angle
|
178°(H) / 178°(V)
|
|
Color gamut(x% NTSC)
|
72%
|
|
View area
|
1428.48mm*803.52mm
|
|
Display colors
|
1.07B(8bit+FRC)
|
|
Life time
|
30,000 hrs
|
|
System
|
|
|
Solution
|
MSD8386
|
|
Operation system
|
Android 8.0
|
|
CPU Architecture
|
ARM A73+A53
|
|
CPU Working Frequency
|
1.5GHz
|
|
CPU Core
|
Quad Core
|
|
GPU
|
Mali-G51
|
|
RAM
|
3GB DDR4
|
|
ROM
|
64GB Standard
|
|
Power
|
|
|
Voltage
|
100 V ~ 240 V/AC, 50/60 Hz
|
|
Power consumption without OPS
|
220W
|
|
OPS Power
|
18V(DC)/5A
|
|
Power consumption in standby mode
|
<0.5W
|
|
Power(AC)input
|
*1
|
|
Camera
|
|
|
Pixel
|
13M
|
|
FOV
|
DIAGONAL 78°
|
|
Array Size
|
MJPEG : 3840*2160(12fps)
4139*3104(8fps)
1280*720(30fps)
1920*1080(30fps)
|
|
Array Mic
|
|
|
MIC Category
|
8pcs omnidirectional silicon wheat
|
|
Pick-up Distance
|
8M
|
|
Pick-up Angle
|
180°
|
|
Function
|
|
|
Audio Output Power
|
10W * 2
|
|
WIFI
|
Support
|
|
NFC
|
Support
|
|
Bluetooth
|
Support
|
|
Interface
|
|
|
HDMI In
|
*2
|
|
DP In
|
*1
|
|
VGA In
|
*1
|
|
OPS (Optional)
|
*1
|
|
LAN
|
*2
|
|
Type-c
|
*1
|
|
Android USB
|
*2
|
|
Public USB
|
*2
|
|
Touch-USB
|
*1
|
|
PC-Audio In
|
*1
|
|
HDMI Out
|
*1
|
|
S/PDIF Out
|
*1
|
|
Audio OUT
|
*1
|
|
RS232 In
|
*1
|
|
Environment
|
|
|
Working Temperature
|
0 ~ 40
|
|
Storage Temperature
|
-10 ~ 60
|
|
Working Humidity
|
20% ~ 80%
|
|
Storage Humidity
|
10% ~ 80%
|
|
Image Model
|
Standard Computer Gorgeous Bright Soft Nature Exercise Game Automatic Users
|
|
The longest service time(Hour*Day)
|
18Hours*7days
|
|
Structure
|
|
|
Net Weight
|
42Kg±1.5Kg
|
|
Gross Weight
|
54Kg±1.5Kg(Heavy Carton)
|
|
Product Size(W*D*H)
|
1511.56mm*86.08mm*907.89mm
|
|
Package Size(W*D*H)
|
1660mm*245mm*1045mm(Heavy Carton)
|
|
VESA
|
4-M8 Screw Hole 600mm*400mm
|
|
Housing Material(Surface Frame /Back Cover)
|
Aluminum/Sheet Metal
|
|
Housing Color(Surface Frame /Back Cover)
|
Gray(White)/Black
|
|
Accessories
|
|
|
Pen
|
*2
|
|
Remote Control
|
*1
|
|
Expansion Screw
|
*8
|
|
USB Disk
|
*1
|
|
User Manual
|
*1
|
|
Certificate of quality/Warranty card
|
*1
|
|
HDMI Cable
|
*1
|
|
Touch Cable
|
*1
|
|
Power Cord
|
*1
|
|
USB Extension Cable
|
*1
|
| Marca | Otros |
|---|---|
| MPN: | 65M5A |
