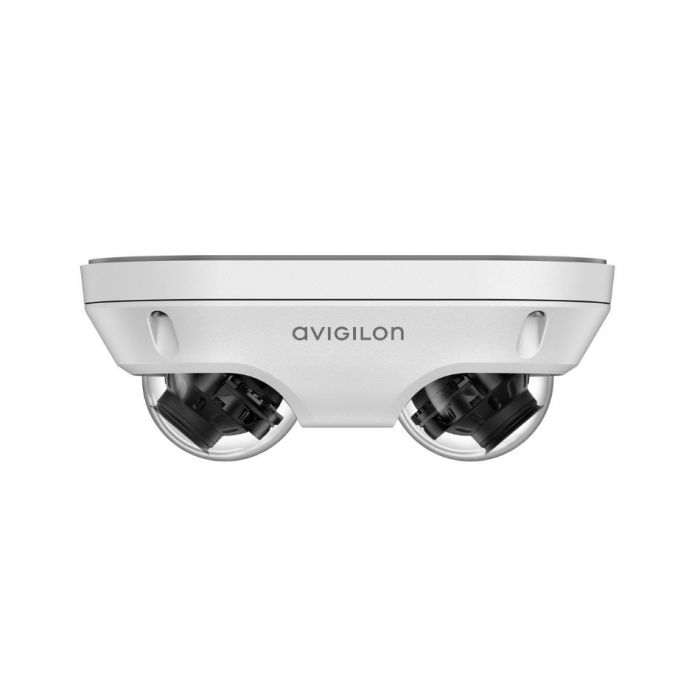

Avigilon 10.0C-H5DH-DO1-IR camara de cabezal doble 2x 5mp 335 7mm enfoque remoto exterior
Antes $38,214.00
Disponible 7 Pzas
Cámara de doble cabezal H5A de 5MP. Cámara exterior con IR incorporado. Con análisis de última generación. Lente 3.35 – 7.0 mm, F/1.93 enfoque remoto y zoom.
Su método de compresión de imagen H.264 HDSM SmartCodec, H.265 HDSM SmartCodec.
Esta cámara de doble sensor rentable y de bajo perfil brinda seguridad mejorada a cualquier sitio al aumentar la cobertura y minimizar los puntos ciegos para aquellas áreas difíciles de asegurar. Las capacidades analíticas avanzadas de la cámara mejoran aún más el conocimiento de la situación al permitir que los equipos de seguridad respondan rápidamente a eventos potencialmente críticos.
Datos en ingles
2x 5 MP, 1/2.7” CMOS, WDR, 3.35-7mm, 218x118x82 mm
The Avigilon H5A Dual Head Camera is a cost-effective and low profile dual-sensor camera that provides increased area coverage and IR illumination, helping to bring enhanced security for blind spots and hard to secure places such as hallways, stairwells, corner intersections, and parking lot entry and exit points. Along with its small footprint, the H5A Dual Head Camera offers Next-Generation Video Analytic capabilities that further improve situational awareness by enabling security teams to respond swiftly to potentially critical events.
IMPROVED COVERAGE, MINIMAL BLIND SPOTS
Provides increased area coverage, while minimizing blind spots for enhanced security with a single camera installation, for indoor and outdoor areas such as long hallways, L-shaped hallway intersections, stairwells to monitor both up and down staircases, or any application that requires the coverage of two cameras installed in close proximity with high imaging quality.
NEXT-GENERATION VIDEO ANALYTICS
Detects more objects with expanded object classifications and greater accuracy for faster responses, even in crowded scenes. The H5A Dual Head camera’s analytic capabilities include expanded object detection and classification, support for Facial Recognition and Avigilon Appearance Search technologies to expedite real-time responses and forensic investigations, and Occupancy Counting and No Face Mask Detection to combat the spread of COVID-19.
COST-EFFECTIVE
As a dual-head sensor, sites can lower their overall deployment costs by reducing camera count, network infrastructure, power and cabling, installation labour, and VMS licensing costs.
-
NEXT-GENERATION VIDEO ANALYTICS
-
COVID-19 RESPONSE TECHNOLOGY
-
ONVIF COMPLIANT
-
IMPROVED COVERAGE, MINIMAL BLIND SPOTS
-
COST-EFFECTIVE
-
FIPS 140-2 COMPLIANT
Technical Information |
|
|---|---|
General Information |
|
|
Part Number
|
10.0C-H5DH-DO1-IR
|
|
Brand Name
|
Avigilon Unity
|
|
Manufacturer
|
Motorola Solutions, Inc.
|
|
Manufacturer Part Number
|
10.0C-H5DH-DO1-IR
|
|
Product Model
|
10.0C-H5DH-DO1-IR
|
|
Product Name
|
H5A Dual Head Camera
|
|
Product Series
|
H5A
|
|
Product Type
|
Panoramic Cameras
|
Technical Information |
|
|
Effective Camera Resolution
|
5 Megapixel
|
|
Field of View
|
Horizontal Angle of View 43° - 91°, Vertical Angle of View 32° - 67°
|
|
HD Recording
|
Yes
|
|
Lens Type
|
Varifocal
|
|
Maximum Aperture
|
f/1.93
|
|
Maximum Frame Rate
|
24 fps
|
|
Minimum Focal Length
|
3.35 mm
|
|
Night Vision
|
Yes
|
|
Night Vision Type
|
Infrared
|
|
Optical Zoom
|
2.1x
|
|
Video Formats
|
H.264, H.265, Motion JPEG
|
Camera |
|
|
Connectivity Technology
|
Wired
|
|
Image Sensor Type
|
CMOS
|
|
Night Vision Distance
|
30 m
|
|
Night Vision Distance (mm)
|
30000
|
Category Specific Attributes |
|
|
Maximum Focal Length (mm)
|
7
|
Display & Graphics |
|
|
Effective Camera Resolution (Pixel)
|
5000000
|
|
Maximum Video Resolution
|
2592 x 1944
|
|
Number of Sensors
|
2
|
Environmental Conditions |
|
|
Maximum Operating Temperature
|
65°C
|
|
Maximum Operating Temperature (°F)
|
149
|
|
Minimum Operating Temperature
|
-30°C
|
|
Minimum Operating Temperature (°F)
|
-22
|
|
Operating Humidity
|
95%
|
Exposure |
|
|
Longest Shutter Speed
|
1/7.5 Second
|
|
Shortest Shutter Speed
|
1/8000 Second
|
Interfaces/Ports |
|
|
Network (RJ-45)
|
Yes
|
Lens |
|
|
Lens Included
|
Yes
|
|
Maximum Focal Length
|
7 mm
|
Network & Communication |
|
|
Remote Management
|
Yes
|
Physical Characteristics |
|
|
Color
|
White
|
|
Durability
|
Impact Resistant, Weather Resistant
|
Product Information |
|
|
Mount Type
|
Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount
|
Projection Lens |
|
|
Minimum Focal Length (mm)
|
3.35
|
Storage |
|
|
Storage Type
|
Memory Card
|
Video |
|
|
Maximum Frame Rate (fps)
|
24
|
Miscellaneous |
|
|
Environmental Certification
|
REACH, RoHS, WEEE
|
|
Environmentally Friendly
|
Yes
|
|
Features
|
3D Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Motion Detection, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
|
|
Impact Protection Rating
|
IK10
|
|
Indoor/Outdoor
|
Outdoor
|
|
Ingress Protection Rating
|
IP66, IP67
|
| Marca | Avigilon |
|---|---|
| MPN: | 10.0C-H5DH-DO1-IR |
