Panduit CT-100B
Precio especial $1,395.00 IVA incluido + Envio $150 MXN
Antes $1,618.00
Disponible 3 Pzas
Antes $1,618.00
Disponible 3 Pzas
sku: CT-100B
pub
MX0000090879

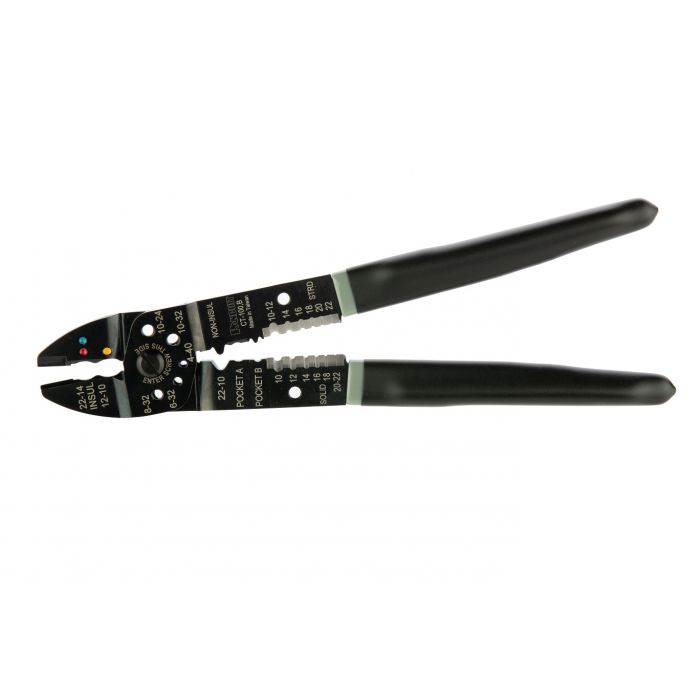

The CT-100B Pan-Term hand crimping tool is an excellent all-around application tool of heat-treated finished steel with a comfortable cushioned plastic grip handle. This tool is designed to crimp most Panduit #22-10 AWG insulated and non-insulated terminals, disconnects, and splices, cut wire, strip wire, and cut screws.
Specifications
| Note | CT-100B replaces CT-100A |
| Crimp Profile | Insulated - Circumferential, Non-insulated - Indented |
| Base Material | Steel |
| Compatible Connector | Select Terminals, Splices, Wire Joints, and Disconnects |
| Sub Brand | Contour Crimp™ |
| Tool Configuration | Multi-functional |
| Overall Width (In.) | 2.077 |
| Overall Width (mm) | 52.75 |
| Product Type | Hand Crimping Tool |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #22 |
| Overall Height (In.) | 0.63 |
| Overall Height (mm) | 16 |
| Overall Length (In.) | 9.22 |
| Overall Length (mm) | 234.21 |
| Weight (Kg) | 0.253 |
| Weight (lb) | 0.56 |
| Part Features | Crimps most panduit terminals, cuts wire and non-hardened screws, and strips wire. |
Packaging Detail
| UPC | 61305676451 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0137 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
| Marca | Panduit |
|---|---|
| MPN: | CT-100B |
