Panduit PLT1.5I-M0 cincho de bloqueo pan-ty sección transversal intermedia 142mm negro - plt15im0
Precio especial $1,309.00 IVA incluido + Envio $150 MXN
Antes $1,518.00
Disponible 64 Pzas
Antes $1,518.00
Disponible 64 Pzas
sku: PLT1.5I-M0
pub
MX0000090878

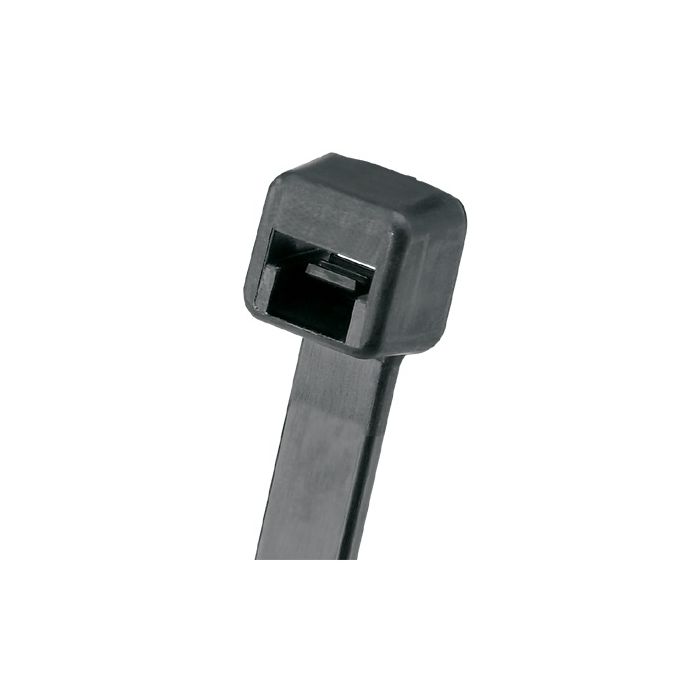

Panduit PLT1.5I-M0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 5.6” (142mm) length. For Indoor/Outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 1000.
Specifications
Product Type | Premium Cable Tie |
Color | Black |
Environment | Indoor/Outdoor |
For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
Material | Weather Resistant Nylon 6.6 |
Resistance Properties | UV Resistant |
Maximum Bundle Diameter (In.) | 1.38 |
Maximum Bundle Diameter (mm) | 35 |
Maximum Installation Temperature (°F) | 32 |
Maximum Operating Temperature (°C) | 85 |
Maximum Operating Temperature (°F) | 185 |
Minimum Bundle Diameter (In.) | 0.06 |
Minimum Bundle Diameter (mm) | 1.5 |
Minimum Installation Temperature (°C) | -20 |
Minimum Installation Temperature (°F) | -4 |
Minimum Loop Tensile Strength (N) | 178 |
Minimum Loop Tensile Strength (lb) | 40 |
Minimum Operating Temperature (°C) | -60 |
Minimum Operating Temperature (°F) | -76 |
Overall Length (In.) | 5.6 |
Overall Length (mm) | 142 |
Body Width (In.) | 0.142 |
Body Width (mm) | 3.6 |
Body Thickness (In.) | 0.045 |
Body Thickness (mm) | 1.1 |
Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Packaging Detail
UPC | 07498354145 |
Std. Pkg. Qty. | 1000 |
Std. Pkg. Volume (cf) | 0.1254 |
Std. Ctn. Qty. | 25000 |
Std. Ctn. Volume (cf) | 3.1343 |
Marca | Panduit |
---|---|
MPN: | PLT1.5I-M0 |
