Hoffman EXE303012SS61 316ss hc haz loc exe 1-gp inch
Precio especial $88,191.00 IVA incluido + Envio $150 MXN
Antes $102,302.00
Disponible 1 Pzas
Antes $102,302.00
Disponible 1 Pzas
sku: EXE303012SS61
pub
MX0000090832

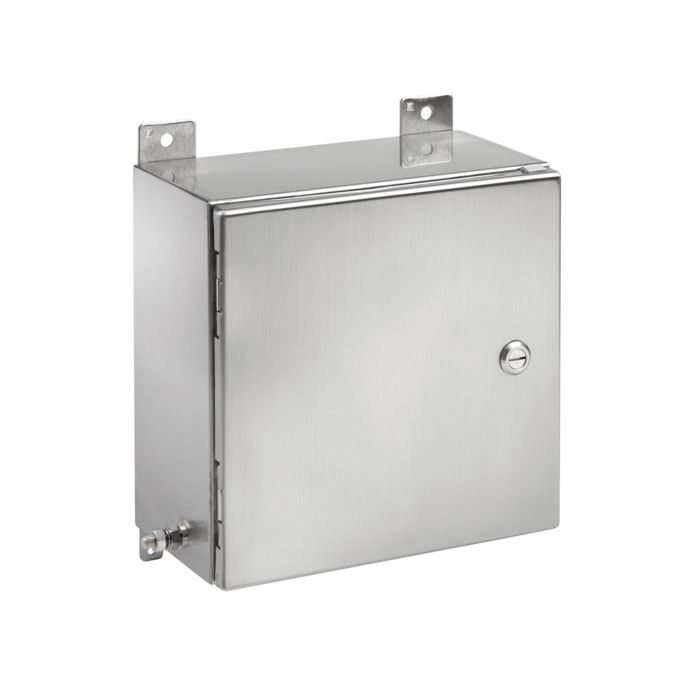

ZonEx ATEX- and IECEx-Certified EXE Design Type 4X, 30x30x12, Brushed, SS 316
- 10-mm brass internal/external bonding provision
- Type 316 stainless steel quarter-turn latch with slotted insert
- Large 3-mm-thick, flat gasketed gland plate(s)
- Continuous seal gasket on door and gland plate(s)
- Hardware for panel and bonding provisions included
- Operating temperature range: -40 C to +70 C standard polyurethane gasket
- Increased safety: Ex e. IECEx e certified
- 3-mm thick individual welded-on top and bottom wall-mounting brackets
PRODUCT ATTRIBUTES
- Height: 30 in / 762 mm
- Width: 30 in / 762 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66
- Material: Stainless Steel 316L
- Latch Quantity: 2
- Optional Panel: CP3030G
- Color: Unpainted
- Finish: Brushed #4
- Thickness: 16 ga / 1.4 mm
- Weight: 71 lb
Marca | Hoffman |
---|---|
MPN: | EXE303012SS61 |
