Panduit ABM100-AT-C montaje de brida para cables alta temperatura adh 1 x1 - abm100atc
Precio especial $1,304.00 IVA incluido + Envio $150 MXN
Antes $1,513.00
Disponible 1 Pzas
Antes $1,513.00
Disponible 1 Pzas
sku: ABM100-AT-C
pub
MX0000090798

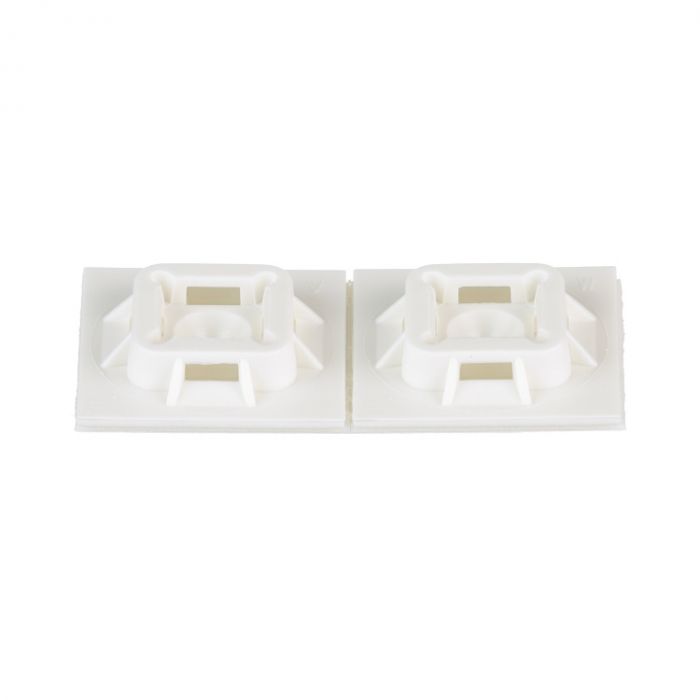

Panduit’s ABM100-AT-C 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature, intermediate, and standard cable ties and are intended for use in indoor, high-temperature environments. The mounts are 1” x 1” (25.4mm x 25.4mm), supplied in strips of 2, are white in color and come in packages of 100.
Specifications
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Acrylic Adhesive Tape |
| Overall Height (In.) | 0.24 |
| Overall Height (mm) | 6.1 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Standards Met | RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Packaging Detail
| UPC | 07498353609 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0334 |
| Std. Ctn. Qty. | 1000 |
| Std. Ctn. Volume (cf) | 0.3338 |
| Marca | Panduit |
|---|---|
| MPN: | ABM100-AT-C |
