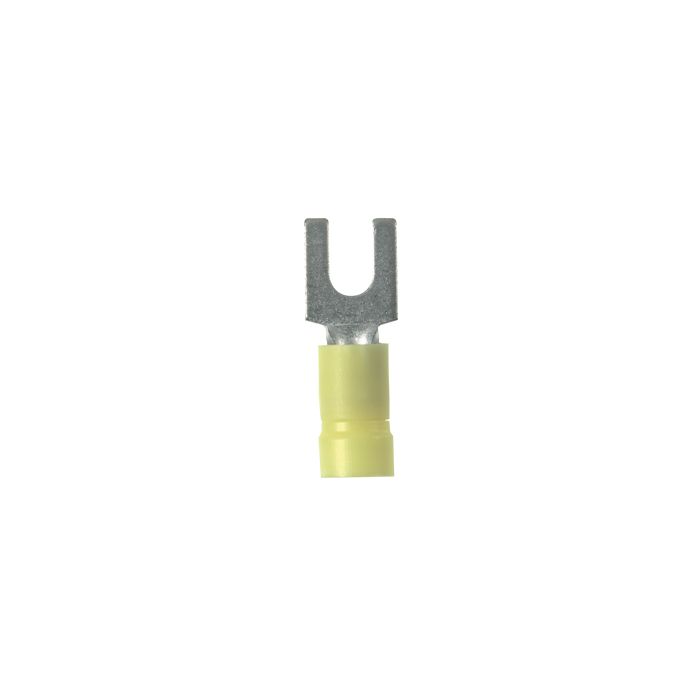

Panduit PV10-8F-D terminal tipo horquilla con aislamiento 14 - 10 amarillo pv108fd
Precio especial $1,593.00 IVA incluido + Envio $150 MXN
Antes $1,848.00
Disponible 27 Pzas
Antes $1,848.00
Disponible 27 Pzas
sku: PV10-8F-D
pub
MX0000090795
Fork Terminal, vinyl insulated, funnel entry, 14- 10AWG, #8 stud size, bulk package.
Specifications
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.52 |
| Barrel Length (mm) | 13.2 |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Overall Length (In.) | 1.04 |
| Overall Length (mm) | 26.4 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Tongue Length (In.) | 0.52 |
| Tongue Length (mm) | 13.2 |
| Sub Brand | Pan-Term® |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.37 |
| Tongue Width (mm) | 9.4 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength |
Packaging Detail
| UPC | 07498380413 |
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.0482 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
| Marca | Panduit |
|---|---|
| MPN: | PV10-8F-D |
