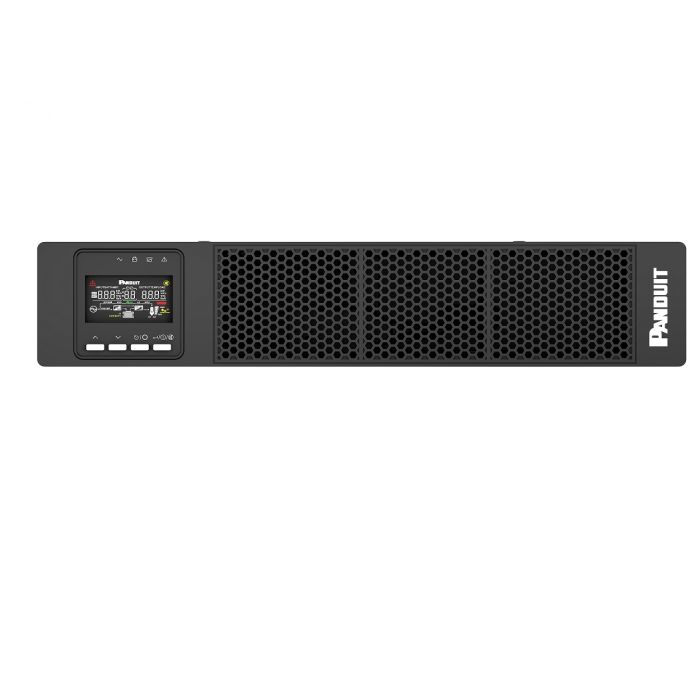

Panduit U03N11V smartzone ups 3kva 2u 120v vrla double-conversion on-line power protection with intelligent network card & rail kit
Precio especial $40,588.00 IVA incluido + Envio $150 MXN
Antes $47,082.00
Disponible 3 Pzas
Antes $47,082.00
Disponible 3 Pzas
sku: U03N11V
pub
MX0000090737
SmartZone UPS, 3kVA, 2U, 120V, single phase, double-conversion on-line power protection with Intelligent Network Card The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Technical Information
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power factor | 1 |
| Input power factor | 0.98 |
| Output power | 3000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Maximum current | 2 A |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 92% |
| Charging current | 2 A |
| Efficiency (ECO mode) | 96.5% |
| ECO mode | Yes |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| Cable length | 118.1' (3 m) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45,RS-232,RS-485 |
| AC outlets quantity | 5 AC outlet(s) |
| AC outlet types | NEMA 5–20R,NEMA L5-30R |
| Power plug | NEMA L5-30P |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Surge protection | Yes |
| Power protection features | Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 1 |
| Input power factor | 0.98 |
| Output power | 3000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Maximum current | 2 A |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 92% |
| Efficiency (ECO mode) | 96.5% |
| ECO mode | Yes |
| Input frequency | 40 - 70 Hz |
| Charging current | 2 A |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 4 |
| Battery voltage | 72 V |
| Battery capacity | 54 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of battery cells | 6 |
| Battery recharge time | 6 h |
| Typical backup time at half load | 14.1 min |
| Typical backup time at full load | 4.6 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Charging current | 2 A |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Cable length | 118.1' (3 m) |
| Built-in fan | Yes |
| Control type | Buttons |
| Display type | LCD + LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2' (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, ENERGY STAR, REACH, RoHS, UL ECOLOGO |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Package width | 21.9' (555 mm) |
| Package depth | 28.7' (730 mm) |
| Package height | 7.95' (202 mm) |
| Weight | 56.7 lbs (25.7 kg) |
| Width | 17.3' (440 mm) |
| Package weight | 69.9 lbs (31.7 kg) |
| Height | 3.41' (86.5 mm) |
| Depth | 23.6' (600 mm) |
| Packaging data | |
| Package width | 21.9' (555 mm) |
| Package depth | 28.7' (730 mm) |
| Package height | 7.95' (202 mm) |
| Package weight | 69.9 lbs (31.7 kg) |
| Marca | Panduit |
|---|---|
| MPN: | U03N11V |
