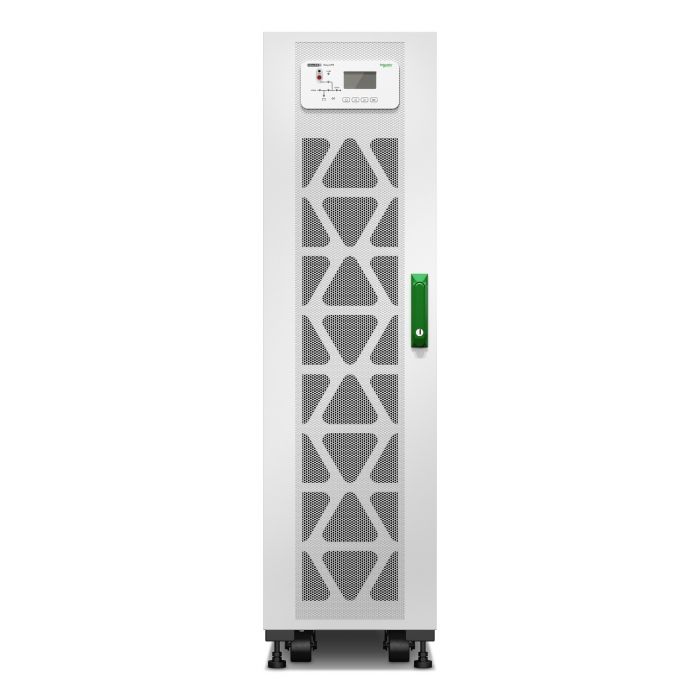

Apc E3SUPS30KFBS easy ups 3s 30 kva 208v 3:3 for internal batteries start-up 5x8 6 strings de baterias incluidos
Precio especial $196,657.00 IVA incluido + Envio $150 MXN
Antes $228,122.00
Disponible 2 Pzas
Antes $228,122.00
Disponible 2 Pzas
sku: E3SUPS30KFBS
pub
MX0000090687
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Technical Information
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power | 30000 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 220 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 220 V |
| Input current Total Harmonic Distortion (THD) | 4% |
| Output power capacity | 30 kVA |
| Input frequency | 40 - 70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Power protection features | Overload |
| Noise level | 68 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Output power | 30000 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 220 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 220 V |
| Power protection features | Overload |
| Noise level | 68 dB |
| Input current Total Harmonic Distortion (THD) | 4% |
| Output power capacity | 30 kVA |
| Input frequency | 40 - 70 Hz |
| Heat dissipation | 2100 BTU/h |
| Battery | |
| Battery voltage | 96 V |
| Design | |
| International Protection (IP) code | IP20 |
| Product colour | White |
| Certification | UL 1778 5th edition IEC 62040-2 FCC part 15 class B IEC 62040-3 cTUVus ISTA 2B |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 590551.2' (0 - 15000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Weight & dimensions | |
| Package width | 47.2' (1200 mm) |
| Package depth | 31.5' (800 mm) |
| Package height | 62.8' (1595 mm) |
| Package weight | 414.5 lbs (188 kg) |
| Packaging data | |
| Package width | 47.2' (1200 mm) |
| Package depth | 31.5' (800 mm) |
| Package height | 62.8' (1595 mm) |
| Package weight | 414.5 lbs (188 kg) |
| Certificates | |
| Certification | UL 1778 5th edition IEC 62040-2 FCC part 15 class B IEC 62040-3 cTUVus ISTA 2B |
| Marca | Apc |
|---|---|
| MPN: | E3SUPS30KFBS |
