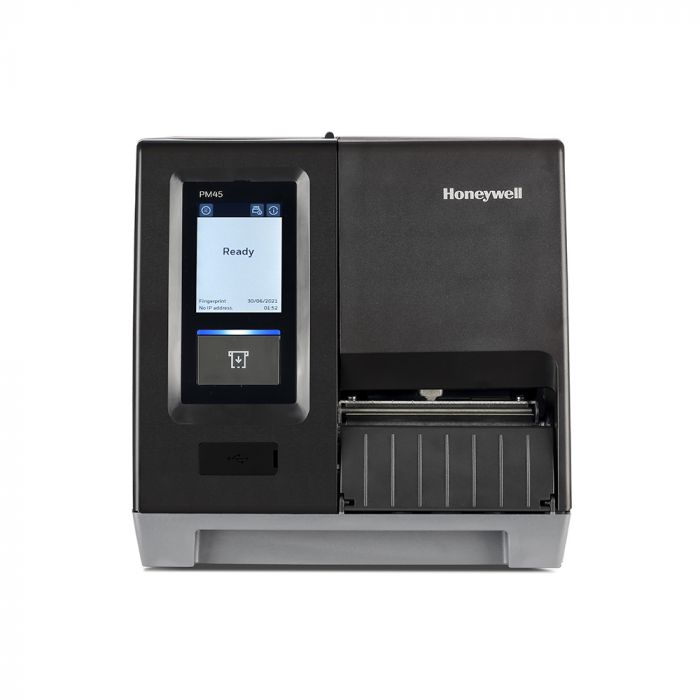

Honeywell PM45A10000030400 Honeywell, pm45a, full touch display, ethernet, fixed hanger, rewinder + label taken sensor, thermal transfer, 406 dpi, no power cord, must order p/n 1-974028-025 separately
Precio especial $72,055.00 IVA incluido + Envio $150 MXN
Antes $83,584.00
Disponible 5 Pzas
Antes $83,584.00
Disponible 5 Pzas
sku: PM45A10000030400
pub
MX0000090245
The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency. Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management. Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels. As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server. Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies. The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
| Printing | |
|---|---|
| Print technology | Thermal transfer |
| Printing colours | Black |
| Colour | No |
| Print speed | 250 mm/sec |
| Maximum resolution | 406 x 406 DPI |
| Maximum printing width | 4.09' (10.4 cm) |
| Maximum print length | 47.2' (1.2 m) |
| Printable dot numbers | 16 dot |
| Margin depth settings | Fixed |
| Display | |
| Display | LCD |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Maximum roll diameter | 8.39' (21.3 cm) |
| Maximum label width | 4.49' (11.4 cm) |
| Core diameter | 2.99' (7.6 cm) |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| USB 2.0 ports quantity | 2 |
| RS-232 ports | 1 |
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D |
| Mobile operating systems supported | Android, iOS |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian, Thai |
| Internal memory | 256 MB |
| Image formats supported | BMP, GIF, PCX, PNG |
| Flash memory | 512 MB |
| Page description languages | DP, DPL, IPL, XML, ZPL II |
| Design | |
| Display | LCD |
| Product colour | Black |
| Control type | Touch |
| Power | |
| Power consumption (standby) | 9.6 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Weight & dimensions | |
| Width | 11.2' (284 mm) |
| Depth | 19' (483 mm) |
| Height | 11.6' (295 mm) |
| Technical details | |
| Sustainability certificates | CE, ENERGY STAR, RoHS |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian, Thai |
| Supported network protocols | TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6 |
| Marca | Honeywell |
|---|---|
| MPN: | PM45A10000030400 |
