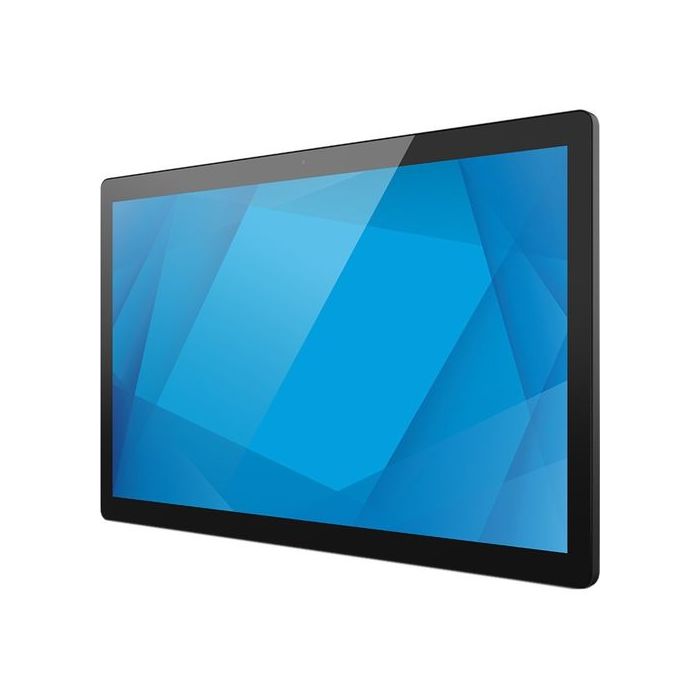

Elo Touch E391032 i-series 4 value android 10 wgms 156-inch rockchip 3399 processor projected capacitive 10-touch clear wi-fi lan bt 50 5mp camera black ww

Specifications

• ---

  Part Number(s)

  Standard Model:
  Black - E390075
  White - E412033 (MTO)

  Value Model:
  Black - E391032
  White - E412421 (MTO)

  Enclosure Color

  White or Black

  Touch Technology & Capacity

  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Touch Thru

  Supports up to 6mm / 0.24' glass or 3mm / 0.12' plastic with up to 2 touches

  Processor

  Standard Model: Qualcomm Snapdragon SDA660
  Value Model: Rockchip RK3399

  Memory (RAM)

  4GB

  Storage

  Standard Model: 64GB
  Value Model: 32GB

  OS

  Android 10 with Google Play Services and EloView content deployment and management

  Diagonal Size

  15.6 diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  16:9

  Active Area (mm)

  13.55' x 7.62' / 344 mm x 194 mm

  Resolution

  1920 x 1080 @ 60Hz

  Number of Colors

  8-bit (16.7 million)

  Brightness (typical)

  Standard Model:
  LCD Panel: 300 nits
  TouchPro PCAP: 258 nits

  Value Model:
  LCD Panel: 250 nits
  TouchPro PCAP: 215 nits

  Response Time-total (typical)

  25 msec

  Contrast Ratio

  700:1

  Viewing Angle

  Standard Model:
  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Value Model:
  Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

  I/O Ports

  1x USB 3.0 support (900mA)
  Type C USB output
  Micro SD slot
  GPIO
  Ethernet 1x LAN (Gigabit)
  DC in

  Peripheral Mounting

  4x micro-USB 2.0 Elo Edge Connect ports

  Support for 1.2A on one port and 500mA for the remaining three ports

  Webcam

  Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm
  Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus

  Wireless

  802.11a/b/g/n/ac + Bluetooth 5.0

  Audio Ports

  Standard Model: 2x built-in Digital Microphones
  Value Model: 1x built-in Analog Microphone

  Speakers

  Standard Model: 2x 0.8W
  Value Model: 2x 2W

  Power Supply

  AC input voltage: 100-240 VAC
  Input frequency: 50-60 Hz

  power adapter (included in accessory box)

  Power Consumption (Typical)

  Standard Model:
  On: 11.0W
  Off: 0.4W
  Sleep: 4.4W

  Value Model:
  On: 10.0W
  Off: 0.4W
  Sleep: 3.4W

  Power Over Ethernet (PoE)

  Supported via Elo PoE Device PN: E413396
  Reference the I-Series 4.0 user guide for details.

  Dimensions

  Standard Model: 14.87' x 9.83' x 0.88' / 377.7 mm x 249.7 mm x 22.3 mm
  Value Model: 15.34' x 9.83' x 0.88' / 389.7 mm x 249.7 mm x 22.3 mm

  Shipping Box Dimensions

  Standard Model: 17.7' x 6.5' x 13.0' / 450 mm x 165 mm x 330 mm
  Value Model: 18.3' x 6.3' x 13.0' / 465 mm x 160 mm x 330 mm

  Weight (Unpackaged)

  Standard Model: 3.9 lbs / 1.8 kg
  Value Model: 3.5 lbs / 1.6 kg

  Weight (Packaged)

  Standard Model: 7.8 lbs / 3.5 kg
  Value Model: 7.2 lbs / 3.3 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 50°C / -4°F to 122°F

  Humidity

  Operating: 20% to 80%
  Storage: 5% to 95%

  Regulatory approvals and declarations

  UL/cUL (US)
  FCC (US)
  IC (Canada)
  CE (Europe)
  CB (International)
  VCCI, MIC (Japan)
  RCM (Australia)

  Supported Countries

  Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil

  Real-Time Clock

  lithium coin cell battery

  MTBF

  50,000 hours demonstrated

  Mounting Options

  VESA 75mm and 100mm

  Warranty

  2-year

  Extended Service Options

  3 year OS 360 - Elo P/N: E873133
  5 year OS 360 - Elo P/N: E873326
  3 year Warranty Coverage – Elo P/N: E819394
  4 year Warranty Coverage – Elo P/N: E819598
  5 year Warranty Coverage – Elo P/N: E819795
  3 year Warranty Coverage + ADP – Elo P/N: E130329
  4 year Warranty Coverage + ADP – Elo P/N: E130530
  5 year Warranty Coverage + ADP – Elo P/N: E130719
  3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908
  4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109
  5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294
  2 year Warranty Coverage + AUR – Elo P/N: E819985
  3 year Warranty Coverage + AUR – Elo P/N: E820186
  4 year Warranty Coverage + AUR – Elo P/N: E820388
  5 year Warranty Coverage + AUR – Elo P/N: E820582
  2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
  3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
  4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
  5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
  2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245
  3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432
  4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627
  5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811

  OS Support

  Complimentary security updates provided for the first three months.
  Optional extended coverage available with Elo OS 360 package.

  Sealability

  Touchscreen sealed to LCD

  What s in the Box

  I-Series 4
  North American Power Cable
  European Power Cable
  1x Power Brick
  Quick Install Guide
  Screws for cable cover door (located in the power/Ethernet bay)

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Fingerprint Scanner – Elo P/N: E134286
  2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
  2D Barcode Scanner (White - SE2707) – Elo P/N: E551946
  2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
  2D Barcode Scanner (White - SE4720) – Elo P/N: E454122
  2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
  2D Barcode Scanner (White - SE4107) – Elo P/N: E454318
  POE Module Kit - Elo P/N: E413396
  Status Light (Micro-USB Connectivity) - Elo P/N: E644767
  Temperature Sensor Pro – Elo P/N: E534879
  3D Camera - Elo P/N: E134699
  Webcam - Elo P/N: E201494
  Expansion Module – Elo P/N: E809509
  RFID - Elo P/N: E673037

  Stands, Mounts & Kits

  Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
  Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162
  Tabletop Flip Stand for 10 & 15 I-Series - Elo P/N: E924077
  Z20 Stand for 10 & 15 I-Series - Elo P/N: E809321
  Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
  Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
  Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
  Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
  Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
  Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
  Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
  Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330
  Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844
  Elo Stand 1302L - White (75 mm VESA) - Elo P/N: E307974
  65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
  90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579
  Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
  Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
  Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
  Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
  Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363
