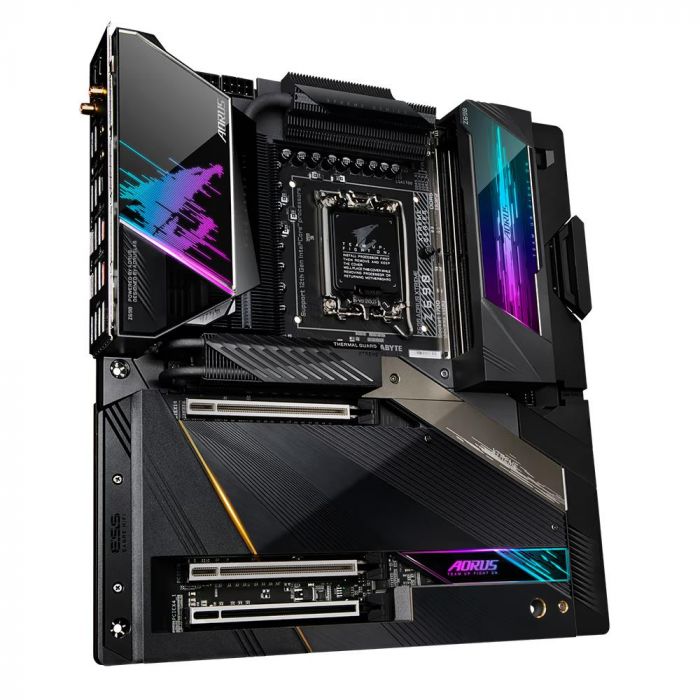

Gigabyte Z690 AORUS XTREME tarjeta madre ddr5 lga 1700 e-atx wifi 6e/bt
Precio especial $20,493.00 IVA incluido + Envio $150 MXN
Antes $23,772.00
Disponible 0 Pzas
Antes $23,772.00
Disponible 0 Pzas
Agotado
pub
MX0000090020
Internal I/O | |
---|---|
Number of M.2 (M) slots | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Front panel connector | Yes |
12V power connector | Yes |
Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
USB 2.0 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |
Number of chassis fan connectors | 4 |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
Supported processor sockets | LGA 1700 |
PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
Motherboard form factor | Extended ATX |
Component for | PC |
Audio | |
Audio output channels | 2.0 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
RAID levels | 0, 1, 5, 10 |
Supported processor sockets | LGA 1700 |
PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
Audio output channels | 2.0 channels |
Motherboard form factor | Extended ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
Supported processor sockets | LGA 1700 |
Processor socket | LGA 1700 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
ECC | Yes |
Non-ECC | Yes |
Supported memory clock speeds | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
RAID levels | 0, 1, 5, 10 |
Number of storage drives supported | 8 |
RAID support | Yes |
Graphics | |
Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
Maximum resolution | 5120 x 2880 pixels |
HDCP | Yes |
Rear panel I/O ports | |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 10 |
DisplayPort version | 1.4 |
USB connector type | USB Type-A, USB Type-C |
WiFi-AP antenna jack | 2 |
Thunderbolt ports quantity | 2 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 2 |
Ethernet LAN (RJ-45) ports | 2 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
LAN controller | Marvell AQtion AQC113C |
Ethernet interface type | 10 Gigabit Ethernet |
Bluetooth | Yes |
Bluetooth version | 5.2 |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
WLAN controller model | Intel Wi-Fi 6E AX210 |
Features | |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z690 |
Supported processor sockets | LGA 1700 |
PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
Audio output channels | 2.0 channels |
Motherboard form factor | Extended ATX |
Component for | PC |
Harmonized System (HS) code | 84733020 |
Expansion slots | |
Number of M.2 (M) slots | 4 |
PCI Express x16 slots | 3 |
BIOS | |
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
ACPI version | 5.0 |
Clear CMOS button | Yes |
System Management BIOS (SMBIOS) version | 2.7 |
Desktop Management Interface (DMI) version | 2.7 |
Video | |
Maximum resolution | 5120 x 2880 pixels |
HDCP | Yes |
Software | |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Bundled software | Norton Internet Security, cFosSpeed |
Weight & dimensions | |
Height | 70 mm |
Weight | 1 kg |
Width | 305 mm |
Depth | 285 mm |
Packaging content | |
Cables included | SATA |
Bundled software | Norton Internet Security, cFosSpeed |
Other features | |
Height | 70 mm |
Weight | 1 kg |
Marca | Gigabyte |
---|---|
MPN: | Z690 AORUS XTREME |
