Liberty DL-UHDILC digitalinx brand by hdmi in-line controller
Precio especial $2,285.00 IVA incluido + Envio $150 MXN
Antes $2,651.00
Disponible 2 Pzas
Antes $2,651.00
Disponible 2 Pzas
sku: DL-UHDILC
pub
MX0000089768

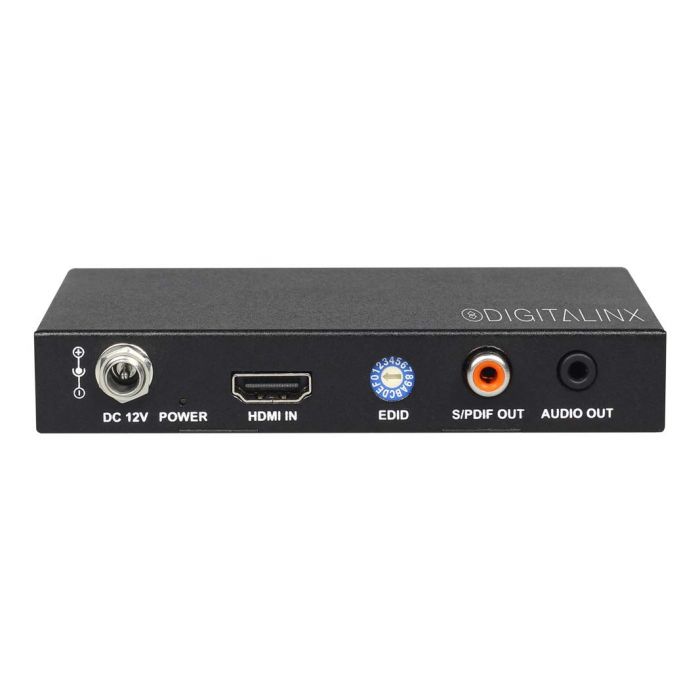

The DigitaLinx DL-UHDILC is an HDMI in-line controller that can automate room peripherals and sink devices when a video signal is introduced to the unit. The DL-UHDILC is 4K compatible, supports HDCP version 2.2, has an analog and digital de-embedded audio output and has 15 built in EDID presets that can be adjusted by the rotary dial on the front panel. When the DL-UHDILC auto-detects an input video signal, the DL-UHDILC will automatically turn a display or projector on either by CEC or by pre-loaded RS232 serial commands. The DL-UHDILC will trigger the first relay port to switch a projector screen or window shade down. When a video signal is no longer present after a specified amount of time, the DL-UHDILC will turn off the display or projector by either CEC or pre-loaded RS232 commands and will trigger the second relay port to switch a projector screen or window shade up.
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| RS-232 ports | 1 |
| HDMI version | 2.0a |
| HDMI ports quantity | 2 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| DC-in jack | Yes |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Analog audio output | 1 |
| Features | |
| Product colour | Black |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768, 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| External power adapter | Yes |
| Maximum frame rate | 60 fps |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Power | |
| Power consumption (typical) | 3 W |
| Weight & dimensions | |
| Width | 119.8 mm |
| Height | 20 mm |
| Depth | 80 mm |
| Weight | 226.8 g |
| Technical details | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 119.8 mm |
| Height | 20 mm |
| Depth | 80 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768, 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| HDMI version | 2.0a |
| HDMI ports quantity | 2 |
| HDCP | Yes |
| External power adapter | Yes |
| Maximum frame rate | 60 fps |
| Packaging content | |
| Quick start guide | Yes |
| Packaging content | 12V Power Supply with 4 power adapter plugs for US, UK, EU and AU RS232 to 3 pin phoenix breakout cable 3 pin phoenix male connectors Quick Install Guide |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Marca | Otros |
|---|---|
| MPN: | DL-UHDILC |
