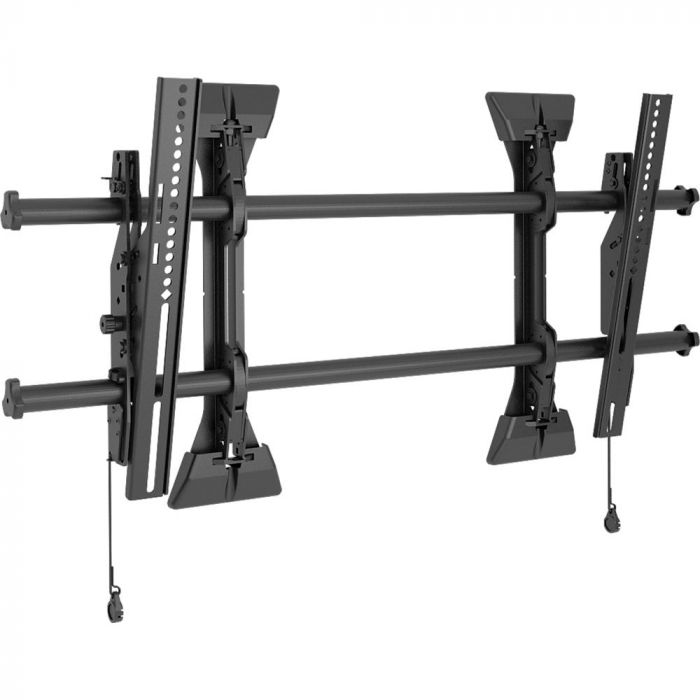

Chief Manufacturing LTM1U tv mount large fusion micro-adjustable wall universal landscape +2-12 degree tilt 200 lb load 3475" width x 2" depth 17" height black
Precio especial $7,158.00 IVA incluido + Envio $150 MXN
Antes $8,303.00
Disponible 25 Pzas
Antes $8,303.00
Disponible 25 Pzas
sku: LTM1U
pub
MX0000089764
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. - Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall - Centerless Shift provides up to 17.5' (445 mm) of post-installation lateral shift - 8.75' (222 mm) left/right of uprights - for limitless centering - Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile - Set screws keep the mount rigid, stable and secure throughout the life of the installation - ClickConnect offers an audible click when the screen safely engages with the mount - Built-in cable stand provides easy access under the screen - A full line of accessories can be installed with the mount and the entire unit can be adjusted together - Multiple installation options for various stud distances - Exclusive nesting spacers can be stacked to achieve any depth - Quick-Store Cords use magnets to easily store and access pull cords - Improved cable management with new end caps - Integrated Security - Ships with a custom hardware kit that can be hung from mount rails if installing in stages - Easy Open box with less waste to throw away
| Mounting | |
|---|---|
| Minimum screen size | 94 cm (37') |
| Maximum weight capacity | 91 kg |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 830 x 400 mm |
| Maximum screen size | 160 cm (63') |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt angle range | -12 - 2° |
| Design | |
| Certification | UL |
| Product colour | Black |
| Weight & dimensions | |
| Width | 883 mm |
| Depth | 51 mm |
| Height | 432 mm |
| Package weight | 10 kg |
| Packaging data | |
| Package weight | 10 kg |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Certificates | |
| Certification | UL |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Marca | Otros |
|---|---|
| MPN: | LTM1U |
