Atlona AT-VGW-250 av control processor for velocity system
Precio especial $10,894.00 IVA incluido + Envio $150 MXN
Antes $12,637.00
Disponible 2 Pzas
Antes $12,637.00
Disponible 2 Pzas
sku: AT-VGW-250
pub
MX0000089762

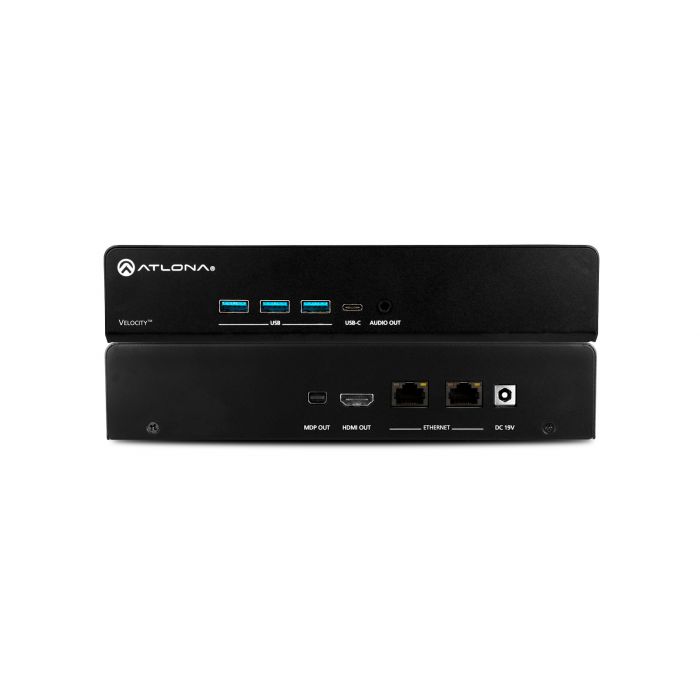

The Atlona AT-VGW-250 Velocity Control Gateway is an AV control processor for the Atlona Velocity Control System. The VGW-250 is capable of serving up to 250 simultaneous IP device connections for Atlona and third-party AV devices, Velocity touch panels, and BYOD control from web browsers and mobile devices. This device control capacity makes the VGW-250 Gateway highly scalable from a single room installation to several AV systems over a network. This control processor also features an innovative network-based system architecture that allows full redundancy and failover with two Gateways in operation, maximizing AV control system reliability. It supports industry-standard, secure data communications, and features dual Gigabit Ethernet ports for isolating an AV device LAN from a facility or corporate network. High Capacity, Software Control Processor Available In addition to the VGW-250, a licensed software version of the Velocity Control Gateway is available that enables high capacity AV control processing on standard IT server infrastructure provisioned by the integrator or end user. Software licenses are available for serving up to 2,500 or 5,000 simultaneous IP device connections for large-scale integration of AV control systems spanning a facility, building, campus, or enterprise. The software can be hosted on a dedicated virtual machine, server hardware, or in a Linux container. As with the VGW-250, the software version allows full redundancy and failover when two instances are in operation. A software license can be purchased by contacting your Atlona representative.
| Design | |
|---|---|
| Certification | CE, FCC |
| Protocols | |
| Supported protocols | DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP |
| Network | |
| Networking standards | IEEE 802.1x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power | |
| Output voltage | 19 V |
| Output current | 3.42 A |
| Power consumption (typical) | 40 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 219.5 x 114 x 44 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Certificates | |
| Certification | CE, FCC |
| Performance | |
| Certification | CE, FCC |
| Marca | Otros |
|---|---|
| MPN: | AT-VGW-250 |
