Atlona 4K-HDVS-WP-EXT 4kuhd hdbaset txrx with two-input wallplate switcher ethernet control and poe
Precio especial $17,006.00 IVA incluido + Envio $150 MXN
Antes $19,727.00
Disponible 0 Pzas
Antes $19,727.00
Disponible 0 Pzas
Agotado
pub
MX0000089741

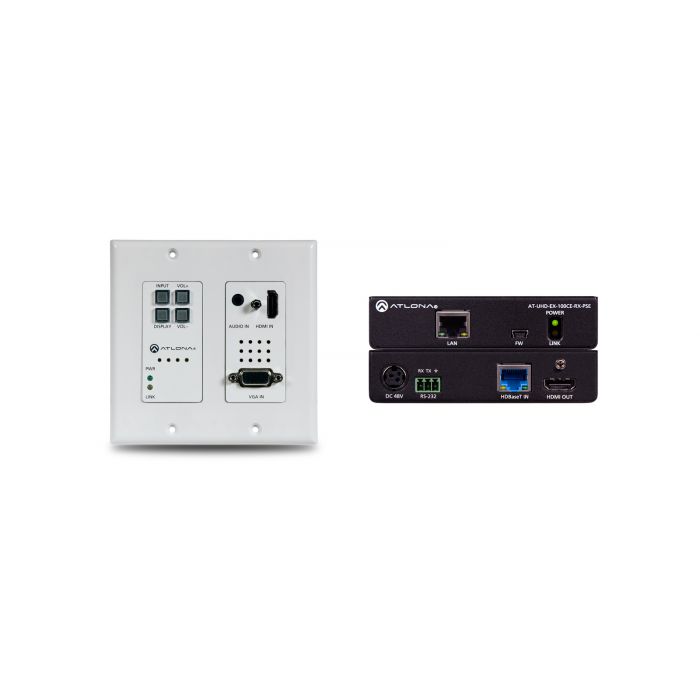

The Atlona 4K-HDVS-WP-EXT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K/UHD extension, automatic HDMI and VGA input switching, and automatic display control. It includes the AT-HDVS-200-TX-WP two-input HDBaseT wallplate switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. The 4K-HDVS-EXT-WP extends HDMI up to 330 feet (100 meters) over category cable with Ethernet pass-through and control. This HDBaseT extender solution supports video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The transmitter is remotely powered by the receiver via Power over Ethernet. This makes the 4K-HDVS-EXT-WP ideal for applications in which the transmitter needs to be installed at a wall location or in a lectern where local AC power may not be available. For your convenience, the 4K-HDVS-WP-EXT part number makes it quick and easy to purchase the AT-HDVS-200-TX-WP and AT-UHD-EX-100CE-RX-PSE in a single step. Both products will appear as individual line items in your order, and will be shipped in their individual packaging.2×1 HDBaseT wallplate switcher in a US two-gang, Decora®-style form factorFeatures an HDMI input plus a VGA input with audio Allows advanced HDMI display devices to be used with legacy VGA sources Audio input can be assigned to either video input Audio-only playback available without video signal present4K/UHD capability @ 60 Hz with 4:2:0 chroma subsamplingCompatible with HDMI sources up to 4K/60 4:2:0 and 4K/30 4:4:4 Supports high resolution applications such as CAD, 3D visualization, desktop publishing, and detailed financial reportingHDCP 1.4 compliantAdheres to version 1.4 specification for High-bandwidth Digital Content Protection Allows protected content stream to pass between devicesExtended distance HDMI extensionTransmits AV, control, and Ethernet up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable Uses easy-to-integrate category cable for low-cost, reliable system installationAutomatic Display ControlAutomatically changes display power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, or CEC. Enables display and volume control. CEC enables control of consumer displays. Eliminates the need for a complex AV control systemAutomatic input selection using hot plug detect and video detection technologySelects active input when sources are connected or if there is a change in source power status Enables simplified, automatic system operation with no user intervention necessaryTransmitter powered by receiver via PoE (Power over Ethernet)Power for transmitter is supplied by receiver over HDBaseT Allows convenient transmitter installation at a wall or in a lectern without the need for local AC power
| Features | |
|---|---|
| HDCP | Yes |
| Colour depth | 12 bit |
| Audio output channels | 2.0 channels |
| Consumer Electronics Control (CEC) support | Yes |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC |
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 3937' (100 m) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1080, 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048, 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black, White |
| HDCP version | 1.4 |
| Ports & interfaces | |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Connectivity technology | Wired |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Marca | Otros |
|---|---|
| MPN: | 4K-HDVS-WP-EXT |
