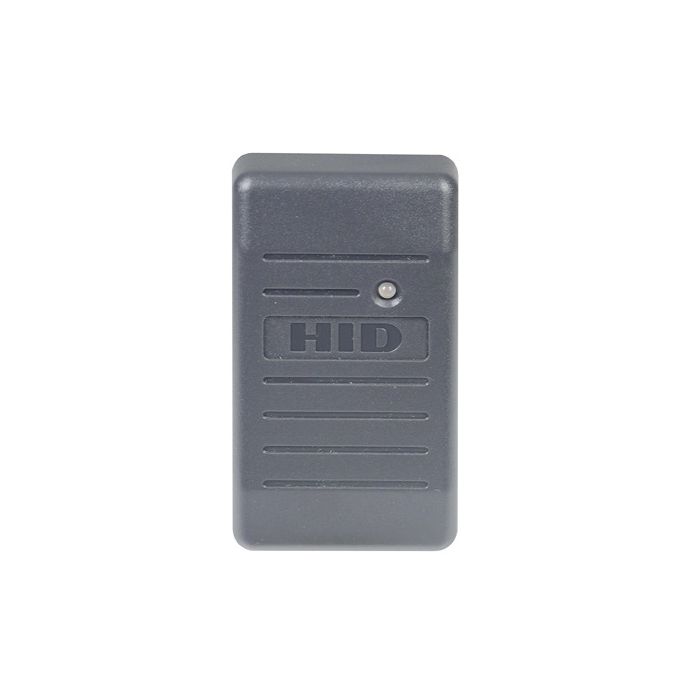

Hid Global Corporation 6005BGB00 proxpoint plus proximity card reader current revision no - b classic charcoal gray pigtail 18 inch beep on led normally red flashes green tag read wiegand interface
Precio especial $3,271.00 IVA incluido + Envio $150 MXN
Antes $3,794.00
Disponible 0 Pzas
Antes $3,794.00
Disponible 0 Pzas
Agotado
pub
MX0000089734
HID s ProxPoint Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications. - Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled. - Potted reader suitable for indoor or outdoor use. - 18' (45 cm) wire pigtail standard; consult factory for 9 (2.7 m) pigtail available by special order. - Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray. - Features a beeper and multicolor LED which can be hostand/ or locally controlled. - Enables various beeper and LED configurations, depending on individual site requirements. - Can read HID cards with formats up to 85 bits. - Designed for mounting directly onto metal with no change in read range performance. - Available with either Wiegand or Clock-and-Data (magnetic stripe data) output. - Compatible with all standard access control systems. - Aesthetic design available in two cover designs and in four colors to match any decor. - Includes multilingual installation manual.
Technical details | |
---|---|
Authentication type | Access chip/card |
Keypad integrated | No |
Fingerprint reader | No |
Access code reader | No |
Access chip/card reader type | Contactless |
Access chip/card reader | Yes |
Product colour | Gray |
Housing material | Polycarbonate (PC) |
Carrier frequency | 125 kHz |
International Protection (IP) code | IP55 |
Sustainability certificates | RoHS |
Display | |
Built-in display | No |
Ports & interfaces | |
PC connection | Wiegand |
PC connected | Yes |
Maximum cable length | 5905.5' (150 m) |
Power | |
Power consumption | 75 mA |
DC voltage range | 5 - 16 V |
Operational conditions | |
Operating temperature (T-T) | -30 - 65 °C |
Operating relative humidity (H-H) | 0 - 95% |
Certificates | |
Certification | CE, FCC |
Weight & dimensions | |
Width | 1.72' (43.7 mm) |
Weight | 2.65 oz (75 g) |
Height | 0.661' (16.8 mm) |
Depth | 3.13' (79.6 mm) |
Marca | Otros |
---|---|
MPN: | 6005BGB00 |
