Chief Manufacturing LSM1U tv mount large fusion micro-adjustable fixed wall universal landscape 200 lb load 3475" width x 2" depth 1825" height black
Precio especial $5,299.00 IVA incluido + Envio $150 MXN
Antes $6,147.00
Disponible 22 Pzas
Antes $6,147.00
Disponible 22 Pzas
sku: LSM1U
pub
MX0000089595
CHIEF LSM1U

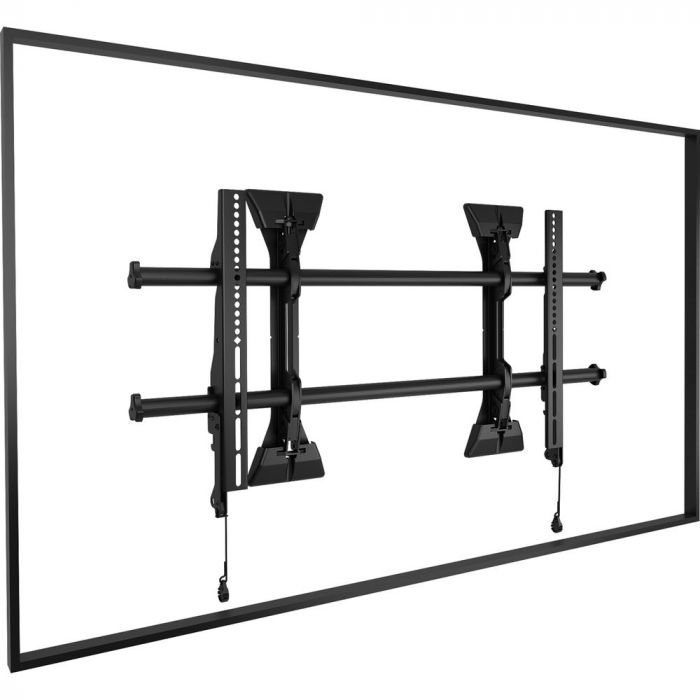

Large Fusion Micro-Adjustable Fixed Wall Display Mount
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Features:
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4' (441 mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Product Specifications:
- Certifications: UL Listed, OSHPD Approved
- Colour: Black
- Lateral Shift:17.4' (441 mm)
- Manual Height Adjustment: 1' (25 mm)
- Minimum Depth: 2' (51 mm)
- Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm - 800 x 500 mm
- Orientation: Landscape
- Overall Dimensions (H x W x D): 18.25 x 34.75 x 2' (464 x 883 x 51 mm)
- Shipping Weight: 9 kg
- Solution Type: Universal
- Typical Screen Sizes: 42 - 86'
- Wall Stud Compatibility In: 16' - 32' (406 mm - 813 mm)
- Weight Capacity: 200 lbs (90.7 kg)
Chief LSM Specs
Compatibility
| Supported Screen Sizes | 42 to 86' / 106.7 to 218.4 cm |
| Weight Capacity | 200 lb / 90.7 kg |
| Mounting-Hole Pattern | 100 x 100 to 880 x 400 mm |
Adjustments
| Vertical Adjustment | 1.0' / 2.5 cm |
| Orientation | Landscape |
General
| Security | Padlock Supported |
| Stud Distance | 16.0' / 40.6 cm 20.0' / 50.8 cm 24.0' / 61.0 cm 32.0' / 81.3 cm |
| Distance from Mounting Surface | 2.0' / 5.1 cm |
| Dimensions | 18.25 x 34.75 x 2' / 46.4 x 88.3 x 5.1 cm |
Packaging Info
| Package Weight | 19.5 lb |
| Box Dimensions (LxWxH) | 37.5 x 18.5 x 3' |
| Marca | Otros |
|---|---|
| MPN: | LSM1U |
