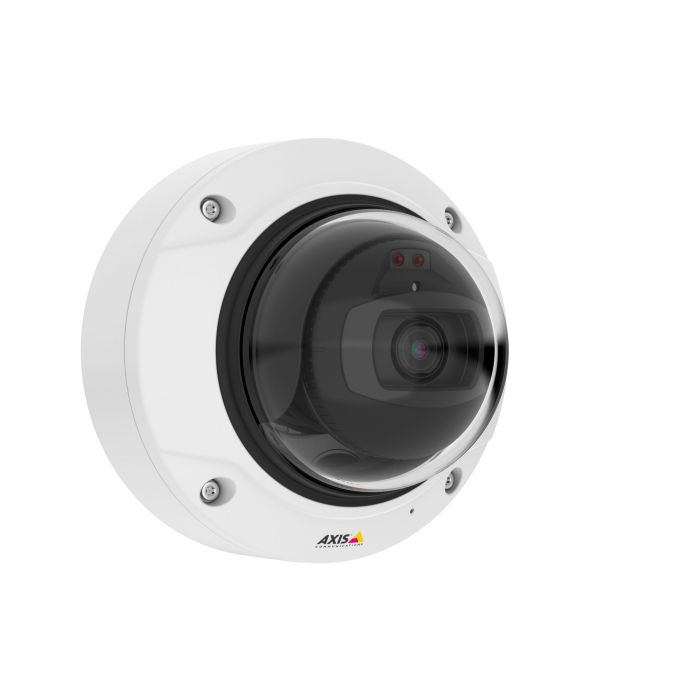

Axis Q3515-LV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product color: White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 105°. Sensor type: CMOS, Optical sensor size: 1/2.8'. Optical zoom: 3x, Digital zoom: 2x, Fixed focal length: 0.354' (9 mm)
| Performance | |
|---|---|
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EN 55032 A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 22 A, KCC KN32 A, KN35, IEC/EN/UL 60950-1, IEC/EN 6247, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10 |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP52 |
| Camera | |
| Minimum illumination | 0.02 lx |
| Tilt angle range | -45 - 45° |
| Pan range | -180 - 180° |
| Angle of rotation | 175° |
| Camera shutter speed | 1/66500 - 2 s |
| Lens viewing angle, horizontal | 105° |
| Lens viewing angle, vertical | 57° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.8' |
| Lens system | |
| Maximum aperture number | 1.3 |
| Zoom capability | Yes |
| Optical zoom | 3x |
| Digital zoom | 2x |
| Fixed focal length | 0.354' (9 mm) |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Video compression formats | AVC, H.264, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) |
| Audio | |
| Voice codecs | G.711, G.726 |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | AVC, H.264, M-JPEG |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Product colour | White |
| Mounting type | Ceiling |
| Protection features | Dust resistant, Water resistant |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Progressive scan | Yes |
| Security | |
| IP address filtering | Yes |
| Password protection | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 14.5 W |
| Certificates | |
| International Protection (IP) code | IP52 |
| Certification | EN 55032 A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 22 A, KCC KN32 A, KN35, IEC/EN/UL 60950-1, IEC/EN 6247, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Length | 55.1' (1400 mm) |
| Depth | 4.87' (123.6 mm) |
| Height | 6.37' (161.8 mm) |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Other features | |
| Video compression formats | AVC, H.264, M-JPEG |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Marca | Axis |
|---|---|
| MPN: | 01039-001 |
