Liberty DL-HD70LS-H2 70m vlc 18g hdbaset set hdmi and ir
Precio especial $7,231.00 IVA incluido + Envio $150 MXN
Antes $8,388.00
Disponible 47 Pzas
Antes $8,388.00
Disponible 47 Pzas
sku: DL-HD70LS-H2
pub
MX0000088896

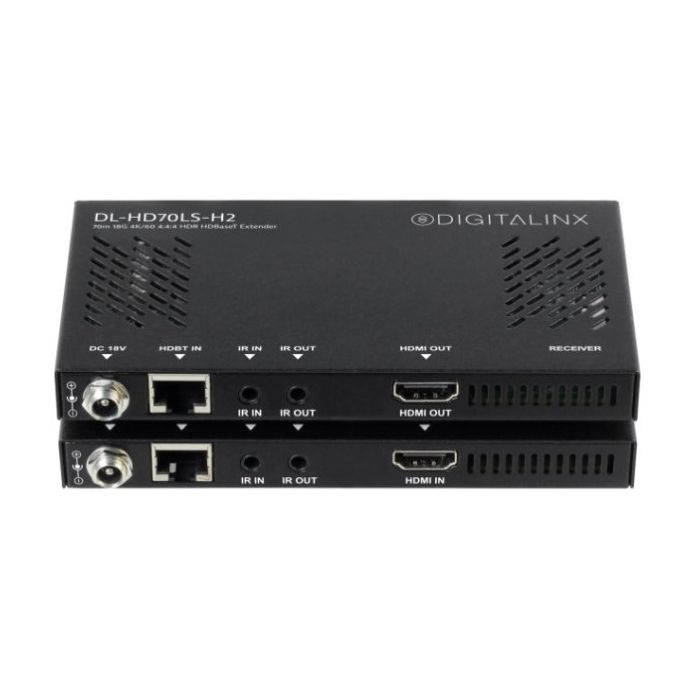

The DigitaLinx DL-HD70LS-H2 extender set transmits HDMI 2.0 audio and video, up to 4K@60Hz 4:4:4/ 8 bit color with HDR support, and bidirectional IR up to 70 meters away using a single solid core, shielded Category 6 twisted pair cable. Supports HDMI 2.0a, HDR10 and HDCP 2.2 as well as Dolby Atmos and DTS:X audio formats. Control extension supports bidirectional IR. Built in re-clocking circuitry ensures that extender set is backwards compatible with older HDMI version chip sets. The extender system uses 2:1 data compression when the signal surpasses 10Gbps, anything under 10Gbps will never be compressed. System supports flexible power so entire extender circuit can be powered by either the TX or RX side. Supports static HDR (HDR10) only when data rate exceeds 18Gbps, supports dynamic HDR (HDR10+ / Dolby Vision) when data rate is 10Gbps or less. Built-in surge protection helps ensure hassle-free and robust installations. The 18 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected. The DL-HD70LS-H2 is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
| Features | |
|---|---|
| HDCP | Yes |
| Electrostatic Discharge (ESD) protection | 8 kV |
| Consumer Electronics Control (CEC) support | Yes |
| Certification | CE, FCC |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Supported video modes | 1080p,2160p |
| Supported graphics resolutions | 1920 x 1200 (WUXGA),4096 x 2160 |
| Bandwidth | 600 MHz |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP version | 2.2 |
| Technical details | |
| HDCP | Yes |
| Electrostatic Discharge (ESD) protection | 8 kV |
| Consumer Electronics Control (CEC) support | Yes |
| Certification | CE, FCC |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Supported video modes | 1080p,2160p |
| Supported graphics resolutions | 1920 x 1200 (WUXGA),4096 x 2160 |
| Bandwidth | 600 MHz |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Remote (IR) output | 2 |
| Remote (IR) input | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power consumption (max) | 12.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 18 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Width | 136 mm |
| Height | 15.2 mm |
| Depth | 74 mm |
| Weight | 240 g |
| Packaging content | |
| IR receiver included | Yes |
| IR blaster included | Yes |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Marca | Otros |
|---|---|
| MPN: | DL-HD70LS-H2 |
