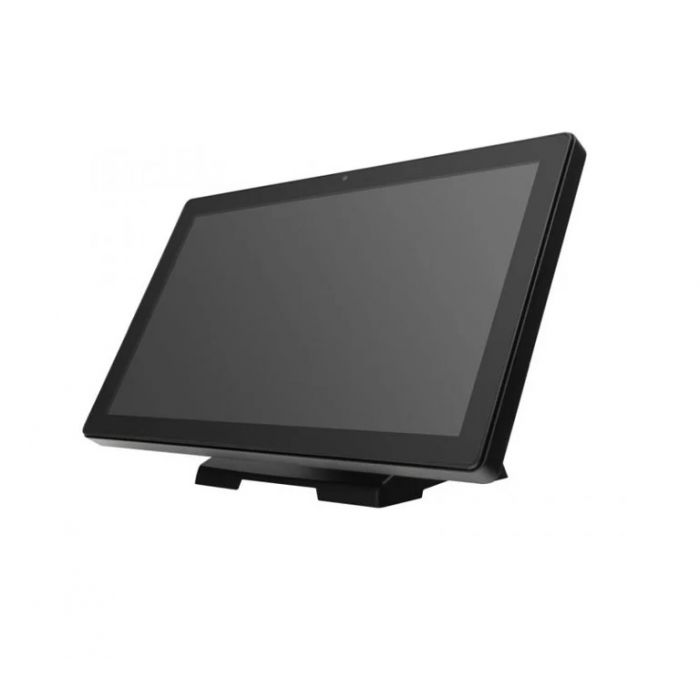

Touch Dynamic QK3800MNNNNNN qk 22" panel pc projected capacitive intel i3 processor 3m cache 8gb lv ram wd 128gb ssd windows 10 iot enterprise (64 bit) no base
Antes $46,769.00
Disponible 0 Pzas
Touch Dynamic QK22 All-in-One Panel PC - TOUCH DYNAMIC, QK 22' PANEL PC, PROJECTED CAPACITIVE TOUCH, INTEL I3 PROCESSOR, 3M CACHE, 8GB LV RAM, WD 128GB SSD, WINDOWS 10 IOT ENTERPRISE (64 BIT), NO BASE
The QK22, available with either Windows or Android operating systems, is a 21.5' display powerhouse of a panel PC. The wide LED LCD Projected Capacitive display offers enhanced durability, accurate data entry, and versatile use. The Android version is equipped with a sealed bezel, providing internal components for even more durability and protection from dust and other particles. The Windows model is available with Intel i3-7100U e.4GHz Kabylake or Intel i5-6300U 3.0GHz Skylake processor. The Android model is equipped with the Qualcomm Snapdragon 450, up to 1.8GHz processor.
Brand | Touch Dynamic |
Model | QK22 All-in-One Panel PC |
21.5' Projected Capacitive Touch Screen
|
HIGHLIGHTS
|
Sealed Bezel on Android Version
|
Next Generation Design
|
PROCESSING
|
Intel® i3-7100U 2.4GHz Kabylake (Windows)
|
Intel® i5-6300U 3.0Ghz Skylake (Windows)
|
Qualcomm Snapdragon 450 up to 1.8Ghz (Android)
|
MEMORY
|
1x DDR3-Lx1 up to 8 GB (Windows), 3GB (Android)
|
DIMENSIONS
|
Screen & Base: 21.5'' (W) x 13' (H) x 8' (D)
|
Weight of Screen & Base: 18LBS
|
OS SUPPORT
|
Windows 10 IOT Enterprise IOT 2019 LTSC, Windows 10 Professional,
|
Android 9
|
LCD & TOUCH
|
LCD Size: 21.5”
|
LCD Aspect Ratio: 16:9
|
LCD Native Resolution: 1080x1920 Pixels
|
LCD Brightness: 250 nits
|
Touch Panel: True Flat Projected Capacitive Touch
|
Qualcomm Snapdragon (Android): Sealed Bezel Design
|
EXPANSION
|
Mini PCI-e Slot: 1 (Windows), N/A (Android)
|
I/O PORTS (STANDARD)
|
USB: 2x USB 2.0 4x USB 3.0 (Windows), 2xUSB 2.0, 2x USB 3.0 Micro USB for OTG
|
(Android) Serial: 4xRJ45 (with the power option) (Windows), 2x DB9 (Android)
|
LAN: 1x Gigabit Lan
|
VGA: D-SUB15 with power options (Windows), N/A (Android)
|
Cash Drawer: x1 Direct IO Access (Windows), N/A (Android)
|
I/O PORTS (OPTIONAL)
|
2nd LAN: 1x Gigabit LAN (Windows), N/A (Android)
|
OPTIONAL PERIPHERALS
|
MSR: IDTECH or Magtek Readers
|
Webcam: 2.0MP
|
Wifi & Bluetooth: Wireless A/B/G/N/AC, Bluetooth 5
|
2D Barcode Scanner: Honeywell 2D Scanner with optional Driver s License
|
Scanning Support
|
Integrated Printer: Epson TM-M30 (Interfaces include: USB, Serial, Ethernet, WIFI)
|
Podium Kiosk: Slim Printer Base
|
STORAGE
|
Solid State Drive: 2.5' SSD 128GB up to 2TB (Windows), 32GB (Android)
|
ENVIRONMENT
|
Operating & Storage Temperature: 0ºC ~ 35ºC (32ºF ~ +95ºF),
|
-20ºC ~ 60ºC (-4ºF ~ 140ºF)
|
Marca | Touch Dynamic |
---|---|
MPN: | QK3800MNNNNNN |
