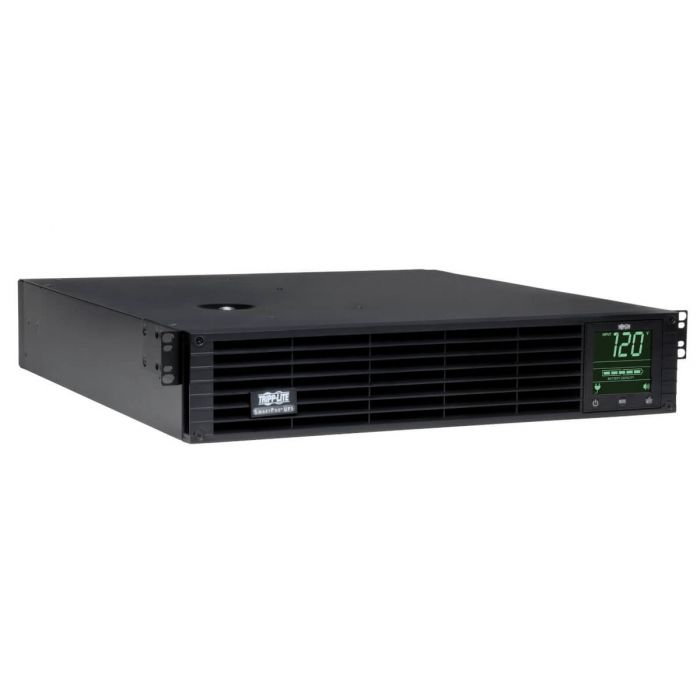

Tripp Lite SMART3000RMXLN ups smartpro interactivo onda sinusoidal 120v3kva 288kw torrerack 2u autonomía extendida
Precio especial $46,123.00 IVA incluido + Envio $150 MXN
Antes $53,503.00
Disponible 3 Pzas
Antes $53,503.00
Disponible 3 Pzas
sku: SMART3000RMXLN
pub
MX0000088714
| Marca: | Tripp Lite |
| Artículo: | UPS |
| Serie: | SmartPro |
| Tipo: | Interactivo |
| Corriente especificada de entrada (Carga Máxima): | 24A |
| Voltaje(s) Nominal(es) de Entrada Soportado(s): | 120V CA |
| Tipo de conexión de entrada del UPS: | L5-30P |
| Longitud del Cable de Alimentación del UPS (m): | 3.1 |
| Servicio Eléctrico Recomendado: | 30A 120V |
| Fase de Entrada: | Monofásico |
| Capacidad de Salida en Volts Amperes (VA): | 3000 |
| Capacidad de Salida (kVA): | 3 |
| Capacidad de Salida (Watts): | 2880 |
| Capacidad de salida (kW): | 2.88 |
| Detalles del Voltaje Nominal: | Salida nominal de 120 V en modo de respaldo por batería |
| Compatibilidad de Frecuencia: | 60 Hz |
| Tomacorrientes con Administración de Carga: | Dos bancos de carga controlables con un tomacorriente 5-15/20R |
| Breakers de salida: | Dos breakers de salida de 20A protegen a 4 tomacorrientes 5-15/20R cada uno |
| Forma de Onda de CA de Salida (Modo de CA): | Onda sinusoidal pura |
| Voltaje CD del sistema (VCD): | 48 |
| Pantalla: | Pantalla LCD de información y configuración en el panel frontal ofrece datos detallados del estado de la energía del UPS y el sitio, además de configuración de voltaje, modo de operación, función de alarma y una variedad de opciones adicionales (Para opciones detalladas de configuración y monitoreo del LCD consulte el manual) |
| Interruptores: | 3 botones controlan el estado de encendido y apagado, la selección de MODO y las funciones de control MUTE y ENTER. Interfaz de Plataforma LX: Switch de reinicio empotrado al ras para reiniciar la interfaz y restablecer los valores de fábrica |
| Indicadores LED: | Actividad y Enlace de Red (Verde): Destella para Mostrar Actividad de la Red. Velocidad de Red (amarillo): 10 Mbps (destellando), 100 Mbps (constante). Estado de la Interfaz de Plataforma LX: Funcionamiento normal (verde sólido); Actualización de Software (verde y naranja alternando ~1/s); Restablecimiento a Condiciones de Fábrica (verde y naranja alternando ~2/s). |
| Factor de Forma Primario: | Para instalación en rack |
| Altura del Rack: | 2U |
| Dimensiones: | 61.72 cm x 53.85 cm x 21.59 cm |
| Peso: | 40.82 kg |
Datos en ingles:
Tripp Lite UPS Smart 3000VA 2880W Rackmount AVR 120V Preinstalled WEBCARDLX Pure Sign Wave USB DB9 2URM - 3000 VA/2880 W - 120 V AC - 3 Minute Stand-by Time - 2U Tower/Rack Mountable - 1 x NEMA L5-30R, 8 x NEMA 5-15/20R
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite s unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.Features
- 3kVA / 3000VA / 2880W line interactive 2U rack/tower UPS; 0.96 power factor
- 120V nominal output during brownouts to 83V and overvoltages to 145V
- Interactive LCD provides UPS status information and advanced configuration options
- Expandable runtime, Hot-swap batteries, 96% efficiency, Sine wave output
- USB, RS232 & EPO ports, Pre-installed WEBCARDLX Network Interface Card
- 2 independently switchable output load banks
- NEMA L5-30P input; 8 NEMA 5-15/20R & 1 L5-30R outlets
Technical Specs
Controls/Indicators
| Status Indicators | Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec). |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
Miscellaneous
| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
Battery Information
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 48 V DC |
| Typical Battery Recharge Time | 5 Hour |
Physical Characteristics
| Weight (Approximate) | 72.80 lb |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.5' |
| Width | 17.5' |
| Depth | 19' |
Technical Information
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA L5-30R |
| NEMA 5-15/20R | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Transfer Time | 5 ms |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| 1 x NEMA L5-30R |
Management
| Network Management | SNMP Manageable |
| Alarm | UPS StartUp |
| UPS Fault | |
| Power Failure | |
| Overload | |
| Low Battery | |
| Remote Shutdown |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART3000RMXLN |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite by Eaton |
| Product Model | SMART3000RMXLN |
| Product Name | SMART3000RMXLN UPS System with Pre-installed SNMPWEBCARD |
| Product Series | SmartPro |
| Brand Name | Tripp Lite |
Power Description
| Input Voltage | 120 V AC |
| 120 V AC | |
| Output Voltage | 110 V AC |
| 115 V AC | |
| 120 V AC | |
| 110 V AC | |
| 115 V AC | |
| 120 V AC | |
| Surge Energy Rating | 570 J |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| 60 Hz | |
| Input Frequency | 60 Hz |
| 60 Hz |
| Marca | Tripp Lite |
|---|---|
| MPN: | SMART3000RMXLN |
