TeamUp Series 4K60 Web-Conferencing Switcher/Hub

4K60 18G 3 Input & 3 Output Web-Conferencing Switcher/Hub with HDMI, USB-C, USB3.0-B, & USB3.0-A ports for creating BYOM connectivity in a dedicated Zoom/Teams Room

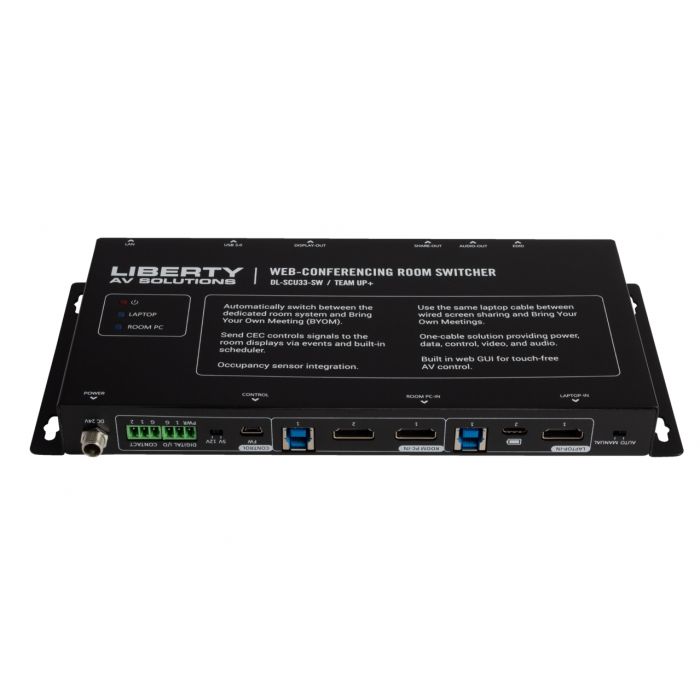

DL-SCU33-SW

DL-SCU33-SW Summary

The 4K60 Web-Conferencing Switcher/Hub (DL-SCU33-SW) is a multi-format switcherthat provides AV switching and USB routingfor BYOM (bring your own meeting)devicesto connect into dedicated cloud-based room systems. Userswill be able to easily bring-their-own-meeting (i.e. Teams desktop client) in spaces running dedicated cloud-based room clients(i.e. Zoom room client).The devices allows USB peripherals to switch between dedicated room systems & BYOM devicessuch as laptops.In addition, when BYOMis enabled, users canintegrate their laptop into adual screen environment by mirroring thelaptop soutput. The device s compact sizeallows for flexible mounting locations such asbehind a display or underneath the table; mounting bracketscomeincluded.TheUSB-C port provides up to 60 watts of charging power creating the all-in-on cable experience.Built-in USB hubprovides easyconnection ofdevices like cameras, microphones, and speakers.Easily switch between modes from third-party devices like keypad/button or leave it on auto.Integrated Digital I/O Ports andthebuilt-in schedulerprovideusers withtouchless display control using the built-in CEC Controller.The control softwarehas an event-drivenarchitecture allowing configuration to be a breeze.The existing HDMI presentation cable can be used in either mode, dedicated or BYOMmode,no need to addanother HDMI cable.

Features and Benefits

• Overview: Enables multi-formatswitching betweenBYOM(bring your own meeting)devicessuch as laptopsanddedicated room systemssuch asZoom, Teams, etc. Providing AV switching and USB routingforBYOM andcloud-based conferencing applications. Allowing USB peripherals to switch between dedicated room systems & BYOM devices. Auto switching is triggered via USB connectivity from the Laptop
• Unique Feature Set: Allow for Single and Dual Screen Capabilityeven in BYOM mode providing a seamless experience for the user by mirroring content onto the second display. The'Share' HDMI output allowsfor the existing HDMI presentation cableto beused in dedicated room system mode or BYOM mode. The HDMI Share output will follow the LAPTOP input and will not route to the display output unless the BYOM has been triggered via USB or Other
• HDMI and USB-C Video Resolutions: Supports a full range of resolutions up to 4K60 4:4:4
• USB-C Port: Provides up to 60 watts of charging power, creating an all-in-one cable connection for USB, AV, and Power
• Control Protocols: RS-232, CEC, Digital I/O, Contact Closure, and Ethernet control
• CEC Controller: Built-in CEC controllerallows for touchless display control and automation. The embedded control softwareis designedfor event-driven architecture where actions are executedin real-time
• HDMI Compliance: HDMI 2.0/1.4 backward compatible, HDCP2.3/ 2.2/1.4 backward compatible
• USB Expansion: Instantly grow from 1 USB port to 4, each equipped with USB 3.0 technology, capable of data at speeds up to 5gbps. Connect various USB peripherals to your laptop or personal computers such as web cameras, microphones, cable cards, and disk drives
• Commercial Design: Eliminate cable clutter, metal chassis with vented slots for heat dissipation, provided brackets and screws allow you to mount behind a display or underneath a conference table
• USB Protection: Overcurrent, overvoltage, and other advanced safety features allow you to maintain and protect your connected devices
• USB Compliance: Gen USB 3.1 while being fully backways compatible for USB 3.0/ USB 2.0/ USB 1.1
• USB Data Transfer Rate: Up to 5Gbps shared between all ports
• USB Support on Upstream Port: SuperSpeed (SS), HighSpeed (HS), and FullSpeed (FS) traffic. Note: Transfer rates are device and USB host controller dependent
• USB Support on Downstream Ports: SuperSpeed (SS), HighSpeed (HS), FullSpeed (FS) and low speed (LS) traffic
• Package includes: Smart hub, USB micro cable, User manual, and external power supplies
• Complete Plug and Play: NO additional driver or software required to be recognized by the computer
• Country of Origin: Taiwan
• TAA Compliant: Yes
• Regulatory approvals: FCC, CE, RoHS
• Options: TeamUp + Switchers
• Note!!! The USB-C port supports Alt-DP mode for AV signals as well as USB data and power. The use of a USB 3.2 Gen1 USB Type C cable is required. Please check your cables carefully to ensure the proper cable is used

Applications

• Zoom / Teams/Google and numerous other UC software collaboration systems
• Dual or Single Screen Collaboration Rooms
