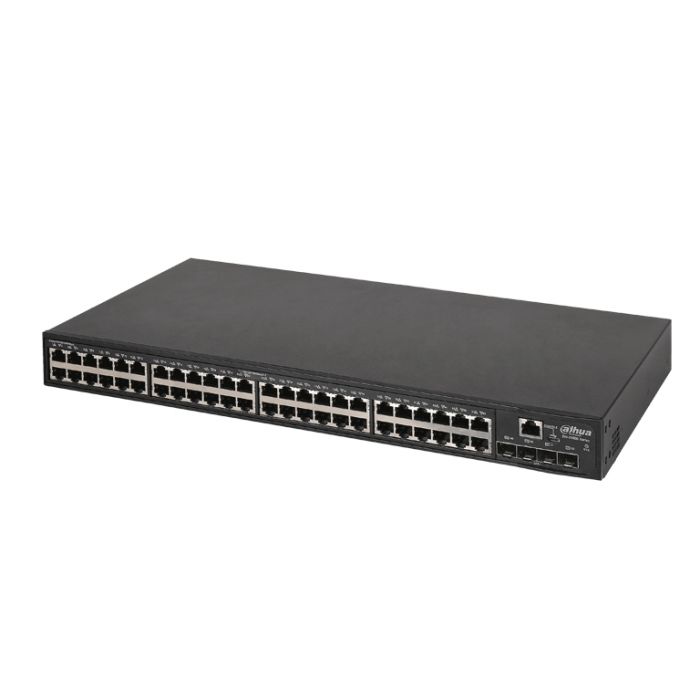

Dahua DH-S5500-48GT4XF-E s5500-48gt4xf-e - switch de agregación 48 puertos gigabit y 4 para fibra 10g.
Antes $51,056.00
Disponible 20 Pzas
Hardware Feature |
|
Ethernet Port |
48 x 10/100/1000 Mbps ports |
Optical Port |
4 x 1/10 Gbps Base-X ports |
Console Port |
1 |
Power Supply |
One power inclued |
Support single power |
|
100–240V AC 50–60 Hz (internal) |
|
Power Consumption |
Idling: 19W |
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Operating Humidity |
5%RH–95%RH |
Storage Temperature |
–40°C to 70°C (–40°F to 158°F) |
Performance |
|
Layer |
Layer 2+ |
Managed |
Yes |
Switching Capacity |
336 Gbps |
Packet Forwarding Rate |
132Mpps |
Packet Buffer Memory |
24 Mbit |
MAC Table Size |
16K |
VLAN Amount |
4094 Entries |
ARP Table |
1K Entries |
IPv4 Routing Table |
1024 Entries |
QoS Queue |
8 Entries |
Jumbo Frame |
10,000 Byte |
ACL Table |
1024 Entries (IPV4) |
Features |
|
VLAN |
Port-based VLAN |
Ring Network Protocol |
STP/RSTP/MSTP/PVST |
DHCP |
DHCP client |
Port Aggregation |
1GE/10GE port aggregation |
Mirroring |
Port mirroring |
Multicast |
IGMP Snooping /MLD Snooping |
IRF |
Distributed device management, distributed link aggregation, and distributed resilient routing |
Security |
Hierarchical user management and password protection |
ACL/QoS |
802.1p/DSCP priority marking |
System Maintenance |
Debugging information output |
Network Management |
Command line interface (CLI) configuration |
General |
|
Thunderproof |
Common mode: 2kV |
Net Weight |
3.5 kg (7.72 lb) |
Gross Weight |
4.40 kg (9.70 lb) |
Product Dimensions |
440 mm ×230 mm×43.6 mm(17.32' × 9.06' × 1.72' ) |
Packaging Dimensions |
540 mm× 340 mm×90 mm (21.26' × 13.39' × 3.54' ) |
Marca | Dahua |
---|---|
MPN: | DH-S5500-48GT4XF-E |
