Liberty Av IPEXAR-5000 digitalinx arranger controller for digi ip 5000
Antes $12,953.00
Disponible 1 Pzas
The Liberty AV Arranger controller is a purpose built Linux server appliance provisioned specifically for controlling and managing DigitalinxIP video endpoints on a Network. It is designed with an auto on feature so device powers immediately when power is applied or cycled so server application is always running. The IPEXAR requires a hardwired Ethernet connection to the DigitalinxIP AV LAN for system control. The default IP address for the IPEXAR is 169.254.1.1/16. The Arranger Controller API can be accessed via Telnet requests on TCP port 6980. The IPEXAR has three provisioned parts numbers: IPEXAR-2100; supports Digitalinxip 2100 series, IPEXAR-5000; supports DigitalinxIP 5000 series and IPEXAR-6000 which supports Digitalinxip 6000 series devices.
- System Controller for Digi IP 5000 Series IP devices
- Comes pre loaded with Arranger software which configures, manages and controls Digi IP 5000 devices on a Network
- Auto ON feature, server powers on automatically when power is present
- Requires License Key which is provided upon purchase
- Optional managed services and analytics license allows you gather data about how the system is used and to receive system error notifications by email
- Optional UI Creator control system license allows you build unlimited user interfaces to control the IP video system as well as other components via Ethernet, IR and Serial
- Contact your Liberty AV rep for more info on optional analytics and control licensing
Tech Specs
- Warranty - Yes
- Spec Sheet available - Yes
- Current Draw: 3 Amps
- DC Voltage: 12 Volts
- Depth: 5 in
- Height: 0.75 in
- Width: 5 in
- Product Weight: 0.95 lbs
- Color: Black
- Warranty (Length/Type): 1 Year
- Processor: Intel X5-Z8350 64 bit
- GPU: Intel HD Graphics
- Memory: 4GB DDR3L
- Internal Storage: 64GB eMMC 5.1
- Operating System: Debian 10

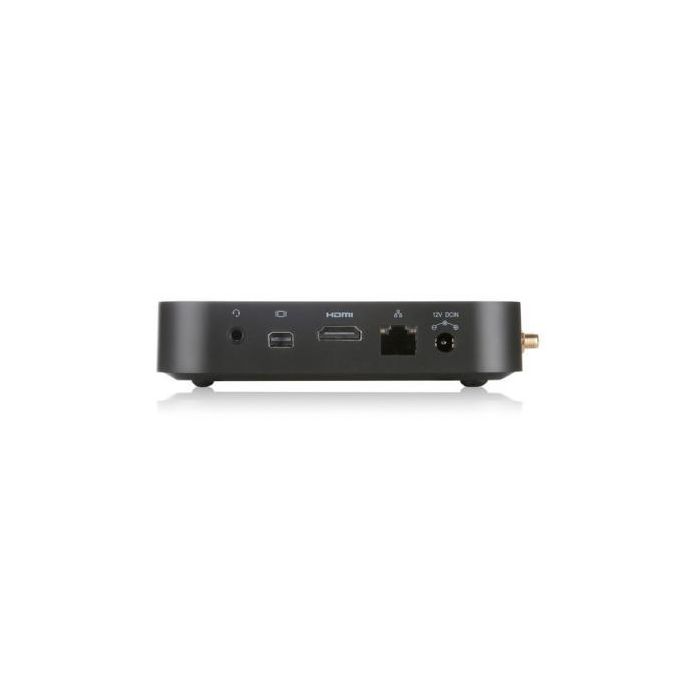

- Video Output: HDMI 1.4 , Mini Display Port
- 3.5mm Input: Purposed for Factory Reset, device rests when connection is terminated and controller rebooted
- Peripheral Interface: RJ-45 Gigabit Ethernet, Micro SD Card Reader, USB2. port x3, USB 3.1 port x1, Kensington lock ready
- Included Accessories: HDMI Cable, PC wall mount
| Marca | Otros |
|---|---|
| MPN: | IPEXAR-5000 |
