'TeamUp+' Series Multi-Format Table Box VC Collaboration Switcher

4K60 18G 3x1 Table Box presentation switcher with HDMI & USB-C inputs, USB3.0 hub on top & bottom, & simple display control

DL-SC31U-BX

DL-SC31U-BX Summary

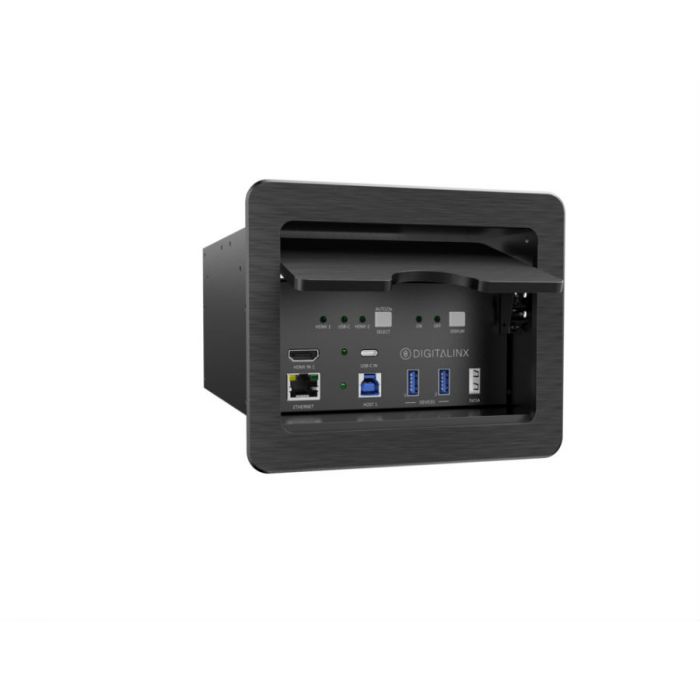

The DigitaLinx DL-SC31U-BX is a 3x1 multi format A/V and USB conference auto switcher and table pocket that supports video resolutions up to 4K@60Hz 4:4:4 8bit deep color and has a built in 4 port USB 3.x hub for integration of USB devices such as USB cameras and microphones that can switched between three USB (PC) hosts. The switcher features three video inputs; (2) HDMI and (1) USB-C. The USB-C input supports video, data (USB host) and power charging up to 40w. The 4 port USB device hub (2 top and 2 bottom) can switch between the USB (PC) hosts automatically or can be assigned to follow a video input in auto switching mode so when the video input is triggered the corresponding USB host will switch as well.

The DL-SC31U-BX gives you the ability to automate the display power ON by using pre-loaded RS232 commands whenever a video signal is introduced to the system using any A/V input or by pressing the DISPLAY control button on the front panel. It will also turn the display power OFF after a specified amount of time has passed when no video signal or switching activity is present.

The DL-SC31U-BX can be controlled by API commands using RS232 or Ethernet. A web server / GUI is built in that features A/V and USB switching control, automatic display control and input EDID management.

The DL-SC31U-BX is ideal for software based video teleconference rooms that require the consolidation and sync of A/V and USB signals from a laptop or room PC.

Features and Benefits

• Conference, Huddle, Training room 3x1 table box presentation switcher
• Complete Plug and Play, NO additional driver or software required to be recognized by the computer
• 2 HDMI & 1 USB-C inputs (HDMI 2 on bottom of box) & Ethernet pass-through
• 1 HDMI output
• 4 port USB3.0 high speed hub includes 2 USB-B host ports and 4 USB-A peripheral ports. USB-C acts as a 3rd host port, plus 1 additional USB-A for charging only
• Supports resolutions up to HDMI 2.0b, 4K/60Hz/4:4:4 8bit, HDR 10
• HDCP2.2 Compliant
• Fully function USB-C port provides up to 40w charging power
• EDID management per input
• Auto Display control to power on/off display when source is detected
• Control via TCP/IP, RS232, or front panel buttons
• Note!!! The USB-C port supports Alt-DP mode for AV signals as well as USB data and power. The use of a USB 3.2 Gen1 USB Type C cable is required. Please check your cables carefully to ensure the proper cable is used
