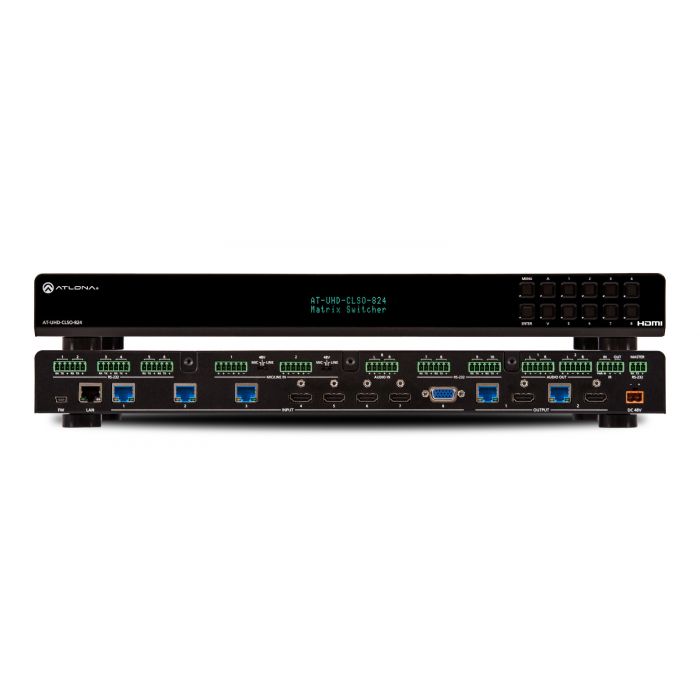

Atlona Technologies AT-UHD-CLSO-824 4kuhd 8x2 multi-format matrix switcher with dual mirrored hdmi hdbaset outputs
Precio especial $67,900.00 IVA incluido + Envio $150 MXN
Antes $78,764.00
Disponible 1 Pzas
Antes $78,764.00
Disponible 1 Pzas
sku: AT-UHD-CLSO-824
pub
MX0000087642
The Atlona AT-UHD-CLSO-824 is a 4K/UHD 8×2 matrix switcher with dual, HDBaseT and mirrored HDMI outputs for 4K/UHD @ 60Hz signals. This matrix switcher has multi-format signal-handling, Ethernet-enabled 100-meter HDBaseT™ input/output extension, and advanced audio capabilities. Presentation Matrix Switcher The CLSO-824 brings advanced multi-format matrix switching to the CLSO series of classroom and small office switchers. The mix of inputs supports remote sources at lecterns and conference room tables via HDBaseT transmission as well as local sources in the equipment rack. The matrix serves a wide array of room configurations with two HDBaseT video outputs, each featuring a mirrored HDMI port to provide an additional output for a local display or an Atlona Extender Kit. HDBaseT Inputs and Outputs The CLSO-824 offers three Ethernet-enabled HDBaseT inputs designed to provide system design flexibility. Two HDBaseT outputs on the switcher provide extended distance AV signal extension up to 330 feet (100 meters). These outputs are Ethernet-enabled to also provide extension of control signals to displays. All HDBaseT inputs and outputs feature industry standard Power over Ethernet to remotely power extender endpoints. Audio Sophisticated matrixing capabilities within the switcher include a dedicated audio mix-matrix for signals routed to the switcher’s outputs. This gives integrators the ability to mix audio signals from either of the two selected video sources along with both mic/line input signals. Audio is de-embedded from the video signal for processing and mixing with the mic/line sources. The resulting audio mix is sent to the balanced line level analog outputs and re-embedded to the digital video outputs.
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) input ports | 1 |
| RJ-45 output ports | 2 |
| RJ-45 input ports | 4 |
| Video port type | HDMI |
| Number of HDMI outputs | 2 |
| HDMI in | 4 |
| Features | |
| Audio output channels | 7.1 channels |
| Colour depth | 12 bit |
| Rack capacity | 1U |
| Product colour | Black |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048, 3840 x 2160, 4096 x 2160 |
| Maximum operating distance | 100 m |
| HDCP | Yes |
| Bandwidth | 10.2 Gbit/s |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input current | 3.125 A |
| AC adapter output voltage | 48 V |
| Power consumption (typical) | 78.54 W |
| Certificates | |
| Certification | CE, FCC, cULus, CCC, RCM |
| Weight & dimensions | |
| Width | 433.8 mm |
| Height | 44 mm |
| Depth | 255 mm |
| Weight | 3.49 kg |
| Technical details | |
| Audio output channels | 7.1 channels |
| Colour depth | 12 bit |
| Rack capacity | 1U |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Width | 433.8 mm |
| Height | 44 mm |
| Depth | 255 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048, 3840 x 2160, 4096 x 2160 |
| Maximum operating distance | 100 m |
| HDCP | Yes |
| Bandwidth | 10.2 Gbit/s |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Marca | Otros |
|---|---|
| MPN: | AT-UHD-CLSO-824 |
