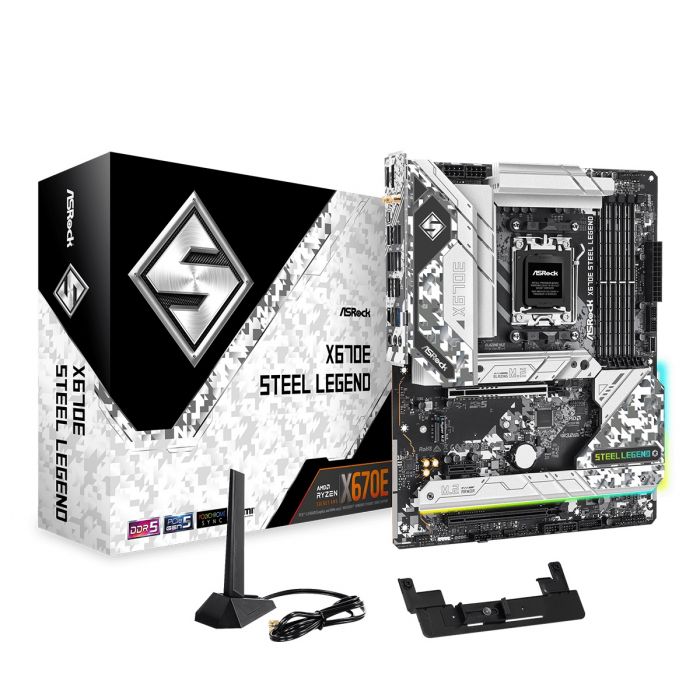

Asrock X670E STEEL LEGEND tarjeta madre soc am5 ddr5, hdmi, dp ,wifi
Precio especial $6,769.00 IVA incluido + Envio $150 MXN
Antes $7,852.00
Disponible 0 Pzas
Antes $7,852.00
Disponible 0 Pzas
Agotado
pub
MX0000087556
| Brand | ASRock |
|---|---|
| Model | X670E Steel Legend |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Supports AMD Ryzen 7000 Series Processors |
| Chipset | AMD X670E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 6600+(OC)* * Please refer to Memory Support List on ASRock s website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16* * Supports NVMe SSD as boot disks. * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * PCIE3 supports x4 mode. * Supports NVMe SSD as boot disks. * Actual support may vary by CPU. |
| PCI Express x1 | 1 x PCIe 3.0 x1* * Supports NVMe SSD as boot disks. |
| Other Slots | 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG |
|---|---|
| Second LAN Chipset | Realtek RTL8111 |
| Max LAN Speed | 10/100/1000/2500Mbps + 10/100/1000Mbps |
| Wireless LAN | 802.11ax Wi-Fi 6E Module Supports IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 6 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 304.80 mm x 243.84 mm |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Windows 11 | Supported |
|---|
| Features | Unique Feature: Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - Server-Grade Low-Loss PCB - 16+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer BIOS Feature: - 256Mb AMI UEFI Legal BIOS with GUI support Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash OS: - Microsoft Windows 11 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Package Contents | Accessories: - 1 x User Manual - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket - 1 x Graphics Card Holder |
|---|
| Marca | Asrock |
|---|---|
| MPN: | X670E STEEL LEGEND |
