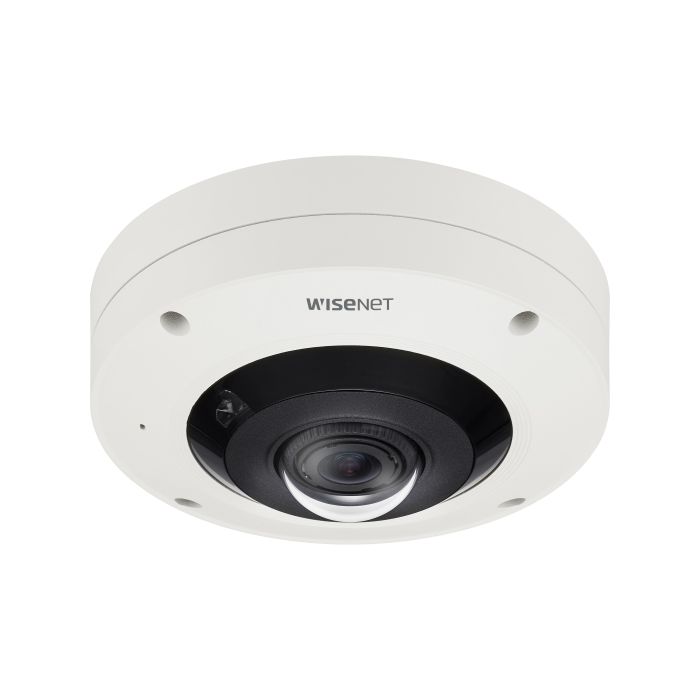

Hanwha Techwin Wisenet XNF-9010RV fisheye ip 12 megapixel / wdr 120db ptz digital 16x mapa de calor y conteo personas ip66 ik10
Precio especial $20,804.00 IVA incluido + Envio $150 MXN
Antes $24,133.00
Disponible 3 Pzas
Antes $24,133.00
Disponible 3 Pzas
sku: XNF-9010RV
pub
MX0000087516
Características de la cámara:
- Sensor de imagen: 1/2.3 12MP CMOS.
- Iluminación mínima: Color: 0.39 Lux (F2.2), B/N: 0 Lux (IR LED Encendido).
- Velocidad del shutter: 2 ~ 1/12,000s
- Dia / Noche real con filtro ICR.
- Lente fijo: 1.08 mm.
- Distancia de IR: 10 m.
- Funciones: WDR real (120dB) HLC, BLC
Video analíticos avanzados:
- Manipulación, línea virtual, entrada / salida, aparecer / desaparecer, detección de audio y detección de desenfoque.
Compresión de video y resolución máxima:
- Compresión: H.265 / H.264 / MJPEG
- Resolución máxima: 4000 x 3000 (12 MP).
Múltiples vistas:
-
- Fisheye, Panorama Individual, Panorama Doble, Panorama simple
Funciones de red y almacenamiento:
- Almacenamiento: Soporta microSD 2 slots de maximo 512GB
- ONVIF: Profile S /G / T, SUNAPI.
Interfaces y Audio:
- Audio: 1 entrada y 1 salida.
- Red: 1 puerto RJ45 10 / 100 Mbps.
- Alarmas: 2 entradas y salidas configurables
- Micrófono interconstruido.
- Cuenta con salida de video BNC: 75 Ω/BNC.
Características físicas y eléctricas:
- Temperatura de operación: -40 a 60 °C, humedad menos de 95%.
- Alimentación: 12Vcc / PoE (802.3af) / 11 W.
- Protección: Interior/exterior, IP66, IK10, NEMA 4X
- Dimensiones: Ø160 × 72 mm .
- Peso: 1100 gr.
Garantía: 3 años.
Video demostrativo de la Cámara Fisheye
Video demostrativo de la Cámara Fisheye
Nota del video: El video está tomado a 1080p (2 MP), en la práctica la imagen se visualizará 6 veces mejor ya que la grabación de la cámara es en 4K (12 MP).
Datos en Ingles:
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum |
| Camera | |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter speed | 1/5 - 1/12000 s |
| Lens viewing angle, horizontal | 187° |
| Lens viewing angle, vertical | 187° |
| Lens viewing angle, diagonal | 187° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 1/2.3' |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.2 |
| Closest focusing distance | 19.7' (0.5 m) |
| Fixed focal length | 0.0425' (1.08 mm) |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Maximum resolution | 3008 x 3008 pixels |
| Highlight Compensation (HLC) | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 12 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Number of users | 20 user(s) |
| Ethernet LAN | Yes |
| Streaming method | Multicast, Unicast |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Built-in HDD | No |
| Maximum memory card size | 512 GB |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Anti-flicker | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 11 W |
| Power consumption (max) | 9.1 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 2.83' (72 mm) |
| Diameter | 6.3' (16 cm) |
| Weight | 2.43 lbs (1.1 kg) |
| Packaging content | |
| Number of cameras | 1 |
| Marca | Otros |
|---|---|
| MPN: | XNF-9010RV |
