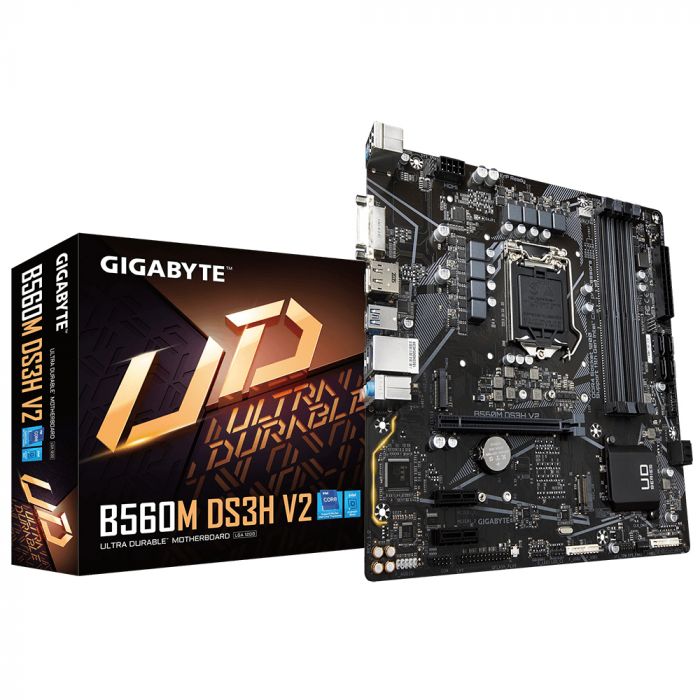

Gigabyte B560MDS3HV2 b560m ds3h v2 motherboard intel b560 express lga 1200 micro atx
Precio especial $2,774.00 IVA incluido + Envio $150 MXN
Antes $3,218.00
Disponible 0 Pzas
Antes $3,218.00
Disponible 0 Pzas
Agotado
pub
MX0000085228
Specifications
Internal I/O | |
---|---|
Number of M.2 (M) slots | 2 |
Front panel connector | Yes |
Supported storage drive interfaces | M.2,SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
TPM connector | Yes |
Serial port headers | 1 |
Parallel connector | Yes |
Number of SATA III connectors | 6 |
Number of chassis fan connectors | 3 |
Front panel audio connector | Yes |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B560 Express |
Serial port headers | 1 |
Motherboard form factor | micro ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B560 Express |
Windows operating systems supported | Windows 10 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel Core i5, Intel Core i7, Intel Core i9 |
Processor socket | LGA 1200 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
ECC | Yes |
Non-ECC | Yes |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
Maximum internal memory | 128 GB |
Storage controllers | |
Supported storage drive interfaces | M.2,SATA III |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 2.0 ports quantity | 2 |
PS/2 ports quantity | 1 |
Microphone in | Yes |
Headphone outputs | 1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DVI-D ports quantity | 1 |
DisplayPorts quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface type | Gigabit Ethernet |
Features | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B560 Express |
Windows operating systems supported | Windows 10 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
Number of M.2 (M) slots | 2 |
PCI Express x16 slots | 1 |
PCI Express x1 slots | 2 |
BIOS | |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
BIOS memory size | 256 Mbit |
Software | |
Windows operating systems supported | Windows 10 |
Marca | Gigabyte |
---|---|
MPN: | B560MDS3HV2 |
