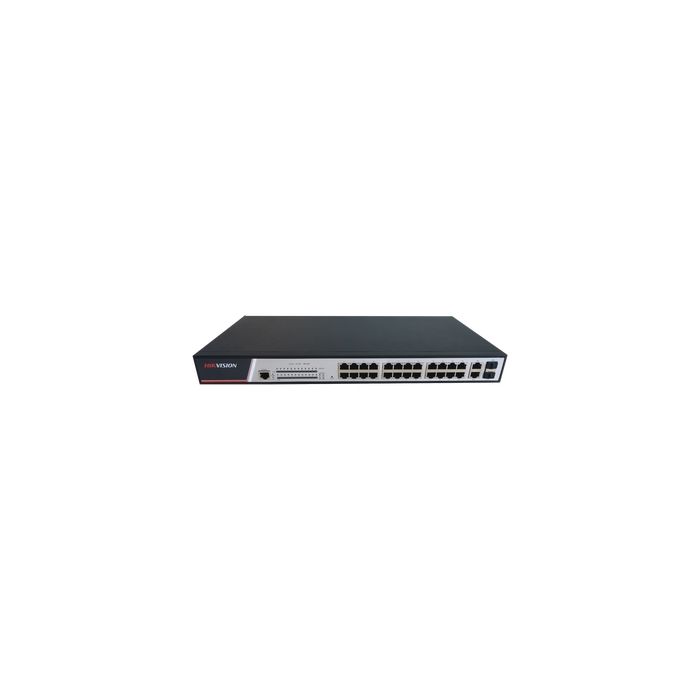

Hikvision DS-3E2326P switch administrable de 24 puertos poe 802.3 af at 100 mbps 2 sfp gigabit 380 watts total
Precio especial $13,421.00 IVA incluido + Envio $150 MXN
Antes $15,568.00
Disponible 0 Pzas
Antes $15,568.00
Disponible 0 Pzas
Agotado
pub
MX0000085170
Puertos:
- 24 Puertos RJ45 PoE 802.3 af/at 10 / 100 Mbps.
- 2 Puertos RJ45 10 / 100 / 1000 Mbps.
- 2 Puertos SFP 10 / 100 / 1000 Mbps (trasnceptores compatibles HK-SFP-1.25G-20-1310-DF / HK-SFP-1.25G-1310-DF-MM).
- Potencia total: 380 W.
Características Físicas y Eléctricas:
- Dimensiones: 440 × 232 × 44 mm.
- Alimentación: 110 - 240 vca.
- Temperatura de operación: 0 - 50 °C.
- Garantía: 2 años.
Funciones generales:
- Soporta VLAN, GVRP, 802.1Q, QinQ, QoS, IGMP, IGMP Snooping, DHCP snooping, RADIUS.
- Administración a travez de WEB, SNMP, Telnet, RMON, CLI.
- Ancho de banda: 22.8 Gbps.
- Troughput: 9.6 Mpps.
- Memoria de vídeo: 64 MB.
- Soporta IEEE 802.1D, IEEE 802.1w y IEEE 802.1s.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Traffic classification | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3z |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| QinQ implementation | Basic QinQ |
| Virtual LAN features | Stacked VLAN,Private VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Stacked VLAN,Private VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| Throughput | 9.6 Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 22.8 Gbit/s |
| Technical details | |
| Product colour | Black |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Static port security | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Root protection | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| DoS attack prevention | Yes |
| Authentication type | IEEE 802.1x,RADIUS |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | Console, Telnet, SSH2.0, Web, SNMP v1/v2/v3, TFTP, RMON |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Certificates | |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2036) |
| Certification | FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 26) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2025) |
| Design | |
| Reset button | Yes |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2036) |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 26) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2025) |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 17.3' (440 mm) |
| Depth | 9.13' (232 mm) |
| Height | 1.73' (44 mm) |
| Marca | Hikvision |
|---|---|
| MPN: | DS-3E2326P |
