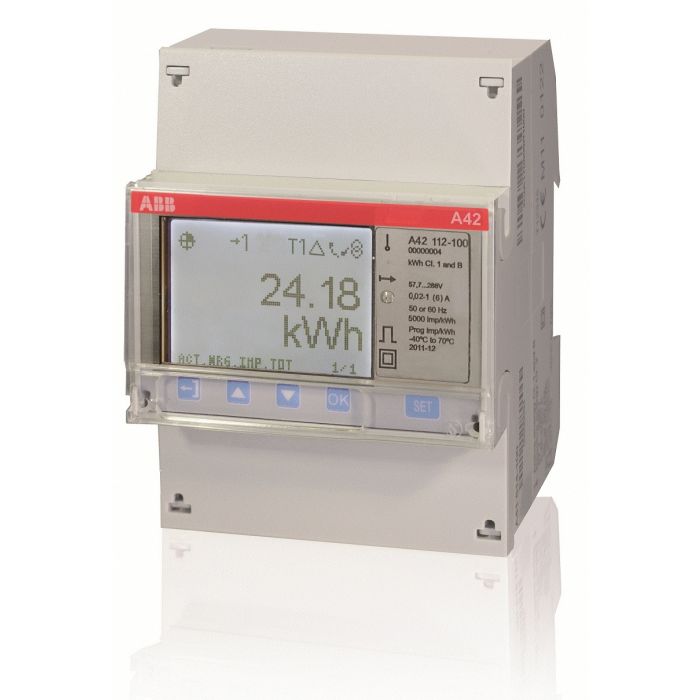

Abb 2CMA170555R1000 a42 111 - 100
Precio especial $3,339.00 IVA incluido + Envio $150 MXN
Antes $3,873.00
Disponible 0 Pzas
Antes $3,873.00
Disponible 0 Pzas
Agotado
pub
MX0000085130
Información General
-
- Tipo de producto extendido:
- A42 111-100
-
- Código de producto:
- 2CMA170555R1000
-
- ABB Type Designation:
- A42 111-100
-
- EAN:
- 7392696705554
-
- Descripción corta:
- A42 111-100, Contador de energía 'Steel', IR port, Single-phase, 6 A
-
- Descripción larga:
- Advanced DIN-rail meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase transformer connectedfor active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
Technical
-
- Standards:
- IEC 62052-11
-
- Function:
- Electricity meter
-
- Sub-Function:
- Steel
-
- Rated Voltage (Ur):
- 57.7-288 V
-
- Rated Current (In):
- 1 A
Maximum 6 A
-
- Current Rating:
- 6 A
-
- Rated Frequency (f):
- 50 / 60 Hz
-
- Power Consumption (@Pcons):
- 0.801 W
-
- Communication Interface:
- IR port
-
- Accuracy:
- Active Energy Class B MID (±1%)
-
- Measuring Instrument Conformity:
- Measuring Instruments Directive
-
- Meter Tariff Rating:
- One-Tariff
-
- Pulse Output Rate:
- 1-999999
-
- Number of Poles:
- 1
-
- Number of Phases:
- Single-phase
-
- Number of Counter Positions:
- 7
-
- Number of Digital In/Outputs:
- 1 DO
-
- ABB Type Designation:
- A42 111-100
-
- Meter Type:
- Transformer connected
-
- Mounting Type:
- DIN rail
-
- Pulse Output Type:
- Electrical
-
- Type of Indicator:
- Digital
-
- Enclosure Material:
- Polycarbonate in transparent front glass. Glass reinforced
polycarbonate in bottom case and upper case. Polycarbonate
in terminal cover.
-
- Connecting Capacity Main Circuit:
- 0.5 ... 10 mm²
Ambiente
-
- Temperatura ambiente:
- Funcionamiento -40 ... 70 °C
-
- Grado de protección:
- IP20
-
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
-
- Environmental Information:
- 2CMC484005D0001
Dimensiones
-
- Width in Number of Modular Spacings:
- 4
-
- Ancho del product:
- 70 mm
-
- Alto del producto:
- 26.5 mm
-
- Largo del product:
- 65 mm
-
- Peso del product:
- 0.197 kg
-
- Size:
- 97X70X65
Información de Embalaje
-
- Embalaje Nivel 1 Unidades:
- box 1 piece
-
- Embalaje Nivel 1 Ancho:
- 100 mm
-
- Embalaje Nivel 1 Alto:
- 68 mm
-
- Embalaje Nivel 1 Largo:
- 94 mm
-
- Embalaje Nivel 1 Peso:
- 0.269 kg
-
- Embalaje Nivel 1 EAN:
- 7392696705554
Clasificación
-
- Cantidad mínima de pedido:
- 1 piece
-
- Código arancelario:
- 90283011
-
- E-Number (Finland):
- 6625003
-
- E-Number (Sweden):
- 0980691
-
- Country of Origin:
- Italy (IT)
Certificados y Declaraciones (Número de Documento)
-
- Declaración de conformidad - CE:
- 2CMC484002D0001
-
- Environmental Information:
- 2CMC484005D0001
-
- Instrucciones y manuales:
- 2CMC484010M4901
-
- RoHS Information:
- 2CMC484006
Descargas Populares
-
- Ficha técnica, información técnica:
- 2CMC484002M0201
-
- Instrucciones y manuales:
- 2CMC484010M4901
Clasificaciones
-
- ETIM 7:
- EC001506 - Kilowatt-hour meter
-
- ETIM 8:
- EC001506 - Kilowatt-hour meter
-
- Categoría RAEE:
- 5. Small Equipment (No External Dimension More Than 50 cm)
-
- WEEE B2C / B2B:
- Business To Consumer
-
- CN8:
- 90283011
-
- Object Classification Code:
- P
| Marca | Abb |
|---|---|
| MPN: | 2CMA170555R1000 |
