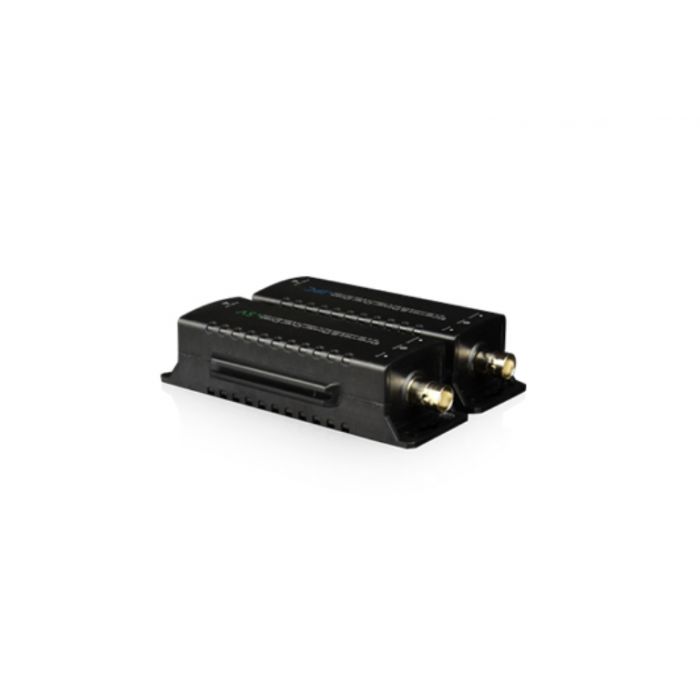

Saxxon UTP3-VEPOC01 utp3vepoc01- extensor poe por coaxial ethernet y energia cable (imagen ilustrativa)

Precio especial $30.00 IVA incluido + Envio $150 MXN
Antes $35.00
Disponible 0 Pzas
Agotado
pub
MX0000083588
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo


Using a single coaxial two-way transmission of 60Mbps Ethernet signal, as far as can be Ethernet, and power transmission to 300m;Anti-interference ability, network delay is less than 0.02ms, the basic realization of real-time transmission of video surveillance;Support IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX,IEEE802.3 af / at standards;Plug and play, no software and protocol conversion;can be spliced, desktop, wall-mounted, but also with set lines finishing capabilities, can simply respond to a variety of installation applications.

Sold as a pair

  • Model: UTP3-VEPOC01
  • Supplied as a pair – 1 x SV base end unit + 1 x IPC end unit
  • Ports: 1 x 10/100Base-TX RJ45 + 1 x BNC
  • Transmission media: RG59 or above coaxial cable & Cat5e / 6
  • Transmission distance: Ethernet cable: 0 ~ 100mCoaxial cable : 0-300m (Recommend)
  • Network standard: IEEE802.3 ? IEEE802.3u
  • Delay: < 20us
  • PoE Standard: 802.3af / at (PSE / PD)
  • PsE Type End-span and Mid-span
  • Power Pin Assignment: 1/2 (+), 3/6 (-) ; 4/5 (-), 7/8 (+)
  • PoE Power Output: ≤30W
  • Lightning protection: 2KV Execute : IEC61000-4-5
  • ESD 6KV Contact discharge 8KV Air discharge Execute, IEC61000-4-2
  • Power Dissipation: < 2W
  • Work temperature: -10 ? ~ 55 ?
  • Dimension: (L × W × H) 113mm × 45.5mm × 29mm
  • Weight: 50g
  • Plug-and-play, no other software and transfer agreement required
  • Built-in splicing slot, with magnet and hanger, unique and integrated design, splicing, desktop and wall-mounted installations available, which suits in all kinds of engineering installation
Más información
MarcaSaxxon
MPN:UTP3-VEPOC01
