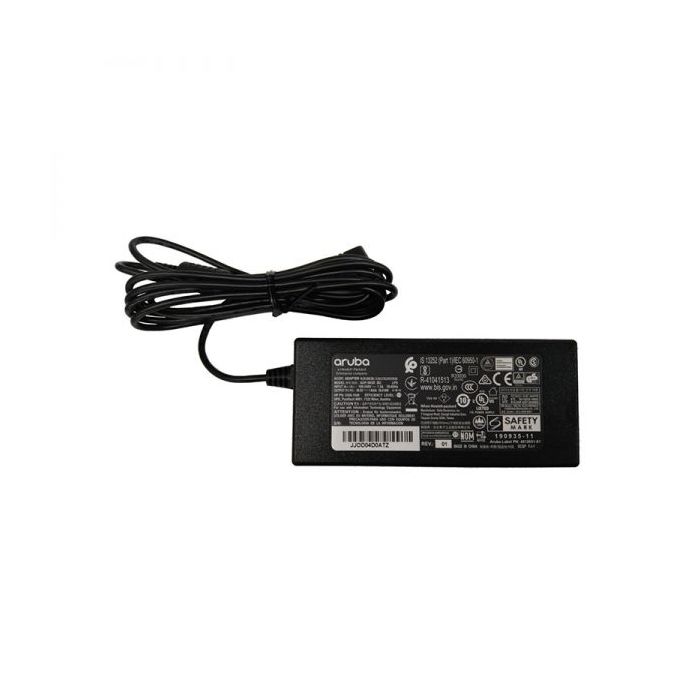

Aruba R3K01A pwr adptr 48v 50w ac dc 1.35 3.5mm

Precio especial $1,467.00 IVA incluido + Envio $150 MXN
Antes $1,702.00
Disponible 0 Pzas
Agotado
pub
MX0000083442
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo


Product Name Aruba Ap-635 RW Campus Ap
Manufacturer Part Number R7J27A
Product Type Wireless Access Point
Network Band Tri Band
Frequency Band 2.40 GHz

5 GHz

6 GHz

Antenna Form Factor Internal
Wireless LAN Standard 802.11ax
Bluetooth Standard Bluetooth 5
Ethernet Technology 2.5 Gigabit Ethernet
USB Yes
Number of Network (RJ-45) Ports 2
Product Family 630
PoE (RJ-45) Port Yes
Indoor / Outdoor Indoor
Wireless Transmission Speed 3.90 Gbit/s
Form Factor Ceiling Mountable
Encryption Standard WPA

WPA2

WPA3

WPA2-MPSK

Data Encryption Yes
MIMO Technology Yes
Beamforming Technology Yes
PoE PD Port Yes
Height 2'
Width 8.7'
Depth 8.7'
Product Series 630
Product Model AP-635

R7J27A Specification

Ports

E0, E1: Two Ethernet wired network ports (RJ-45)
Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
2.5Gbps speed complies with NBase-T and 802.3bz specifications
POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)

Mounting

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately).

Connectivity, standard

WLAN: tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

Input voltage

12 Vdc (+/- 5%) or 48 Vdc (nominal) POE

Power Consumption

23.8W worst case (POE powered), 20.7W worst case (DC). Excludes power needed to supply up to 5W to an attached USb device.

Heat dissipation

66.3 BTU/hr worst case (POE powered), 57.9 BTU/hr worst case (DC)

Certifications

UL2043 plenum rating
Wi-Fi Alliance
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6E (ax, 6GHz)
WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband
Wi-Fi Location
Passpoint (release 2)
Bluetooth SIG
Ethernet Alliance (POE, PD device, class 5)

Regulatory

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950 IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2

Wi-Fi antenna

Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.6dBi in 2.4GHz, 7.0dBi in 5GHz and 6.3dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9dBi in 2.4GHz, 4.9dBi in 5GHz and 4.3dBi in 6GHz.

Radio coverage

Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO

Más información
MarcaAruba
MPN:R3K01A
