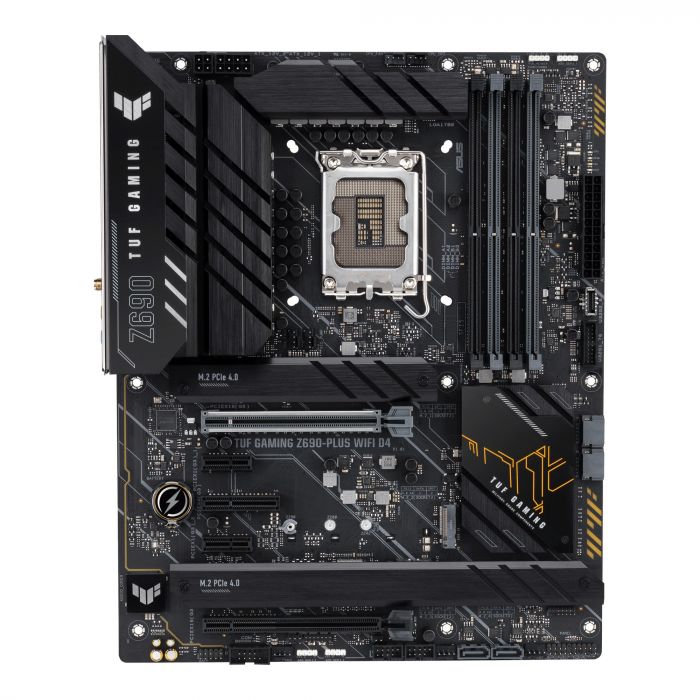

Asus Z690-PLUS tuf gaming wifi d4 intel z690 lga 1700 atx

Precio especial $6,724.00 IVA incluido + Envio $150 MXN
Antes $7,800.00
Disponible 0 Pzas
Agotado
pub
MX0000083281
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo




Specifications



Internal I/O
Number of M.2 (M) slots 4
Thunderbolt headers 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
12V power connector Yes
Supported storage drive interfaces M.2,SATA
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Power fan connector Yes
Peripheral (Molex) power connectors (4-pin) 1
Number of SATA III connectors 4
Number of COM connectors 1
Number of chassis fan connectors 4
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
Technical details
Motherboard chipset family Intel
Motherboard chipset Intel Z690
Parallel processing technology support Not supported
HDMI version 2.1
Motherboard form factor ATX
Component for PC
Audio
Audio output channels 7.1 channels
Performance
Supported storage drive types HDD & SSD
Motherboard chipset family Intel
Motherboard chipset Intel Z690
RAID levels 0,1,5,10
Windows operating systems supported Windows 10,Windows 11
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer Intel
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor socket LGA 1700
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Non-ECC Yes
Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5000,5133,5333 MHz
Maximum internal memory 128 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA
RAID levels 0,1,5,10
RAID support Yes
Graphics
Parallel processing technology support Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
DisplayPort version 1.4
S/PDIF out port Yes
Microphone in Yes
Headphone outputs 1
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DisplayPorts quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.2
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Features
Motherboard chipset family Intel
Motherboard chipset Intel Z690
Windows operating systems supported Windows 10,Windows 11
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 4
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x4 slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 192 Mbit
Software
Windows operating systems supported Windows 10,Windows 11
Drivers included Yes
Weight & dimensions
Height 12' (305 mm)
Width 9.61' (244 mm)
Packaging content
Drivers included Yes
Cables included SATA
Other features
Height 12' (305 mm)
Packaging content 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide
Más información
MarcaAsus
MPN:Z690-PLUS
