Trendnet TEG284WS teg 284ws pz switch web smart gigabit de 28 puertos
Precio especial $4,460.00 IVA incluido + Envio $150 MXN
Antes $5,174.00
Disponible 0 Pzas
Antes $5,174.00
Disponible 0 Pzas
Agotado
pub
MX0000082519
Description
TRENDnet s 28-Port Gigabit Web Smart Switch, model TEG-284WS, is a cost-effective switch solution for high-speed gigabit applications. Advanced traffic management, access management controls, trouble shooting, and monitoring protocol support makes this a powerful backbone solution for SMB networks. The web-based management interface offers features for traffic control, troubleshooting, access controls, and monitoring.
Web Smart Management
Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.
High-Speed SFP
Offers four shared gigabit SFP slots to allow for long distance fiber optic connections.
Hardware Design

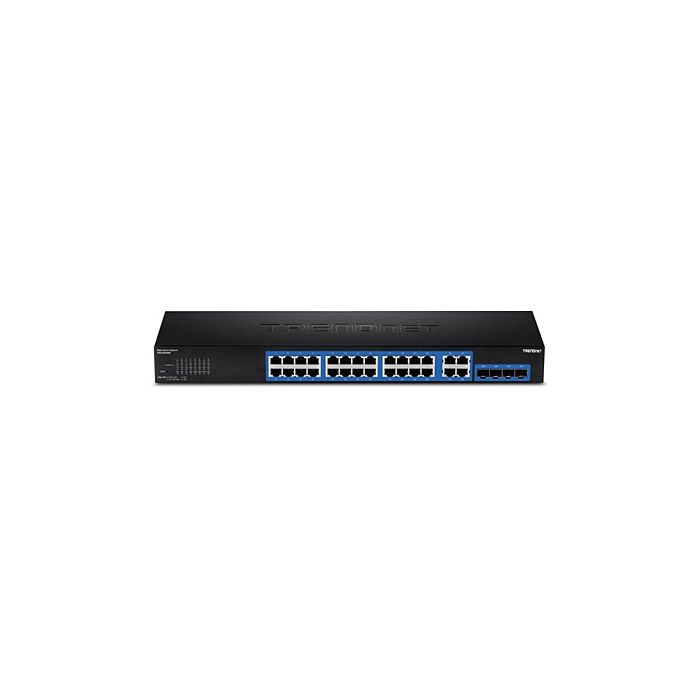

Fanless rack mountable 1U metal housing features 24 gigabit ports and 4 shared gigabit ports (RJ-45/SFP).
IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.
Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
Troubleshooting
Traffic statistics and a convenient cable diagnostic test aid in network troubleshooting
Access Control
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
Web Smart Management
Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.
High-Speed SFP
Offers four shared gigabit SFP slots to allow for long distance fiber optic connections.
Hardware Design
Fanless rack mountable 1U metal housing features 24 gigabit ports and 4 shared gigabit ports (RJ-45/SFP).
IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.
Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
Troubleshooting
Traffic statistics and a convenient cable diagnostic test aid in network troubleshooting
Access Control
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Virtual Cable Test (VCT) | Yes |
| Networking | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| 10G support | No |
| Virtual LAN features | Private VLAN,VLAN Identifier ( VLAN ID),Voice VLAN,Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Private VLAN,VLAN Identifier ( VLAN ID),Voice VLAN,Tagged VLAN |
| Data transmission | |
| Multicast MAC address table | 8000 entries |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 256 |
| Jumbo frames | 10000 |
| Throughput | 41.7 Mpps |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Mean time between failures (MTBF) | 787004 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Security | |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | HTTP/HTTPS (SSL v2/3 TLS), SNMP v1, v2c, v3, RMON v1, IPv6 |
| Certificates | |
| Certification | CE, FCC, UL |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Rack mounting | Yes |
| Performance | |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 787004 h |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server |
| Power | |
| Power consumption (max) | 17.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 17.3' (440 mm) |
| Depth | 5.51' (140 mm) |
| Height | 1.73' (44 mm) |
| Weight | 4.74 lbs (2.15 kg) |
| Packaging data | |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Marca | Trendnet |
|---|---|
| MPN: | TEG284WS |
