Canon 3101C011AA multifuncional laser image class mf743cdw monocromatica 40 p

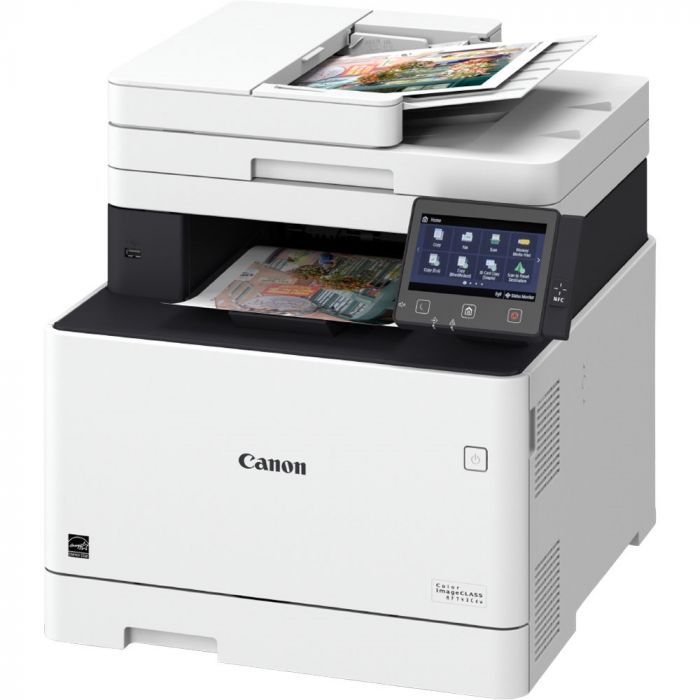

Color imageCLASS MF743Cdw

MAIN UNIT

Print, Copy, Scan, Fax, Send (Lite)

3101C011

Canon Custom Processor

5' Color Touch Panel

1 GB

USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection, Near Field Communication

PAPER CAPACITY (LETTER, 20 LB. BOND)

300 Sheets

Standard: 250-sheet Paper Cassette, 50-sheet Stack Bypass
Optional: 550-sheet Paper Cassette (Cassette Unit AF-1)
Maximum: 850 Sheets

75 Sheets

Cassettes: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (10 Envelopes)
Stack Bypass: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (1 Envelope)

SUPPORTED MEDIA SIZES

Cassettes: A4, A5, B5, Letter, Legal, Statement, Executive, Envelope: COM10, Monarch, C5, DL, Custom (Min. 3' x 5' to Max. 8.5' x 14')
Stack Bypass: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL
Custom (Min. 3' x 5' to Max. 8.5' x 14')

Cassettes: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m²)
Stack Bypass: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m²)

From Power On: 13 Seconds or Less;
From Sleep Mode: 6.1 Seconds or Less

Standard (Desktop): 18.8' x 18.8' x 18.4' (478 mm x 478 mm x 467 mm)
Box: 23.7' x 18.9' x 23.2' (602 mm x 479 mm x 589 mm)

Standard (Desktop): 21.4' x 43.8' x 29' (544 mm x 1,112 mm x 736 mm)
Fully Configured: 21.4' x 43.8' x 34.1' (544 mm x 1,112 mm x 866 mm)

Unit: Approx. 64 lb. (29.0 kg)
Boxed Weight: Approx. 76.1 lb.(35 kg)

Windows 7/Windows 8.1/Windows 10/Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016 / Mac OS X v10.9.5 (or later)

PRINT SPECIFICATIONS

Laser Beam Printing

Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)

Approx. 7.5 Seconds

750 - 4,000 Pages

600 x 600

UFR II

Automatic (Standard)

Available from USB Memory (JPEG, TIFF, PDF)

Apple® AirPrint,® Canon PRINT Business, Mopria™ Print
Service

COPY SPECIFICATIONS

Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)

Platen: 9.5 seconds/11.1 seconds (BW/Color)
ADF: 9.9 seconds/11.8 seconds (BW/Color)

600 x 600

Platen: Up to Letter;
ADF: Up to Legal

Up to 999 Copies

25% - 400% (1% Increments)

25%, 50%, 64%, 78%

129%, 200%, 400%

Paper Setting, Favorite Setting, Two-sided, Original Type Selection, Cancel, N-on-1, Density Adjustment, Sharpness, Erase Frame, Collate, Copy ID Card

SCAN SPECIFICATIONS

Single-Pass Duplexing Automatic Document Feeder

50 Sheets (20 lb. Bond)

Legal, Letter, Statement

13-28 lb. Bond (50-105 g/m²)

Sheet, Book

ScanGear MF for TWAIN, and WIA

Push Scan: Up to 300 x 600
Pull Scan: Up to 600 x 600

Canon PRINT Business

Single-sided: 14/28 ipm (300 x 600 dpi) (Color/BW)
Double-sided: 27/51 ipm (300 x 600 dpi) (Color/BW)

Standard USB Memory (JPEG, TIFF, PDF)

SEND SPECIFICATIONS

Email/Internet FAX (SMTP), SMB, FTP

LDAP (50)/Local (300)/Speed Dial (281)

600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other)

File: FTP, SMB
Email/iFax:: SMTP, POP3, iFax (Simple)

Standard: TIFF, JPEG, PDF (Compact, Searchable)
Optional: PDF (Encrypted, Digital Signature)

FAX SPECIFICATIONS

MODEM SPEED

Super G3: 33.6 kbps
G3: 14.4 kbps

MH, MR, MMR, JBIG

RESOLUTION (dpi)

400 x 400, 200 x 400, 200 x 200, 200 x 100

SENDING / RECORDING SIZE

Statement to Legal

FAX MEMORY

Up to 512 Pages

SPEED DIALS

Max. 281

GROUP DIALS / DESTINATIONS

Max. 299 Dials

SEQUENTIAL BROADCAST

Max. 310 Addresses

Yes

FAX FEATURES

RX Mode, Resolution, Two-sided Original, Density, Sharpness, Favorite Settings, Duplex Fax

SECURITY SPECIFICATIONS

Standard: Department ID Authentication

Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP

Standard: Secure Print

Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES) WPA2-PSK (AES)
Wi-Fi Access Point: WPA2-PSK (AES)

ENVIRONMENTAL SPECIFICATIONS

Temperature: 50 to 86º F;
Humidity: 20 to 80% RH (no condensation)

AC 120-127 V:6.5 A, 60 Hz

Maximum: Approx. 1470 W
Standby: Approx. 20.5 W
Sleep Mode: Approx. 0.6 W
Typical Electricity Consumption (TEC) Rating: 0.31 kWh

ENERGY STAR® Qualified, Rated EPEAT Silver¹

FOOTNOTES

1 For latest EPEAT ratings (Gold/Silver/Bronze), please visit www.epeat.net.
2 Includes consumables.
3 Print speed is based on internal testing. Print speed may vary, depending on the number of copies selected as well as the settings for size, type, and orientation of paper.
4 Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more information, including compatibility, please visit https://www.usa.canon.com/mobile-app. Please see the respective websites for Apple AirPrint and Mopria Print Service for compatibility and additional information.
5 Warranty program is subject to certain conditions and restrictions. See warranty card for details.
