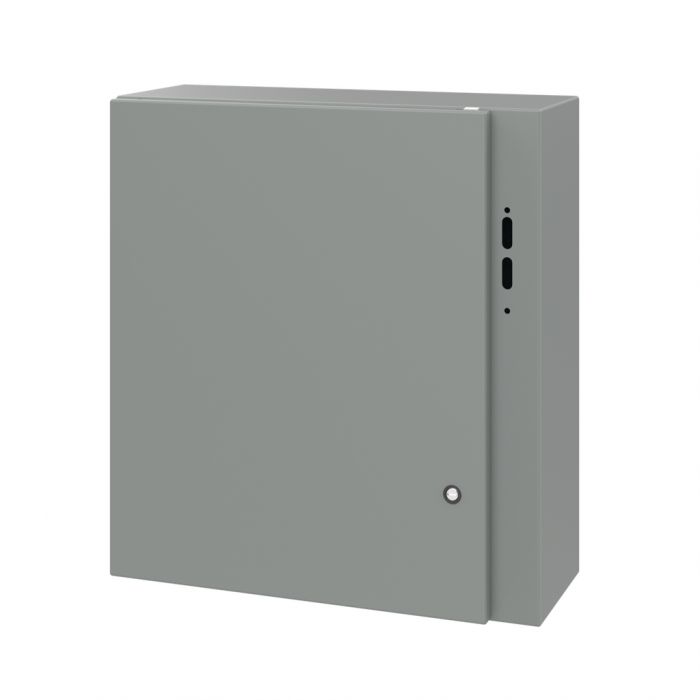

Hoffman CDSC24228-SLV type 12 disconnect enclosure
Precio especial $8,564.00 IVA incluido + Envio $150 MXN
Antes $9,934.00
Disponible 0 Pzas
Antes $9,934.00
Disponible 0 Pzas
Agotado
pub
MX0000081967
Concept Disconnect Enclosure, Type 4, 24.00x22.00x8.00, Gray, Steel
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange channels away liquids
- Bonding provision on door; grounding stud on body
- Holes in body for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Corner-formed doors
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Door alignment device on doors wider than 30 inches (762mm)
- Concept-style latching system interlocks with the disconnect handle for added safety
- Unique integrated door handle with tool-to-open feature and padlocking option
- Self-grounding latch system with double seal
- Four hinges on 60-inch-high enclosures
- Simple easy-to-remove and install hinge pins with captivation clip
- High-torque threadless studs and fasteners on door
- V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
PRODUCT ATTRIBUTES
- Height: 24 in / 610 mm
- Width: 22 in / 559 mm
- Depth: 8 in / 203 mm
- Protection Rating: NEMA Type 4; IP66
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Body Thickness: 16 ga / 1.52 mm
- Door Thickness: 14 ga / 1.9 mm
- Panel Size: 22.20 x 18.20 in / 564 x 462 mm
- Conductive Panel: CP2420G
- Mounting: 22.50 x 20.50 in / 572 x 521 mm
- Concept Panel: CP2420
- Latch Quantity: 1
- Latch Style: 2-point
- Weight: 65 lb
| Marca | Hoffman |
|---|---|
| MPN: | CDSC24228-SLV |
