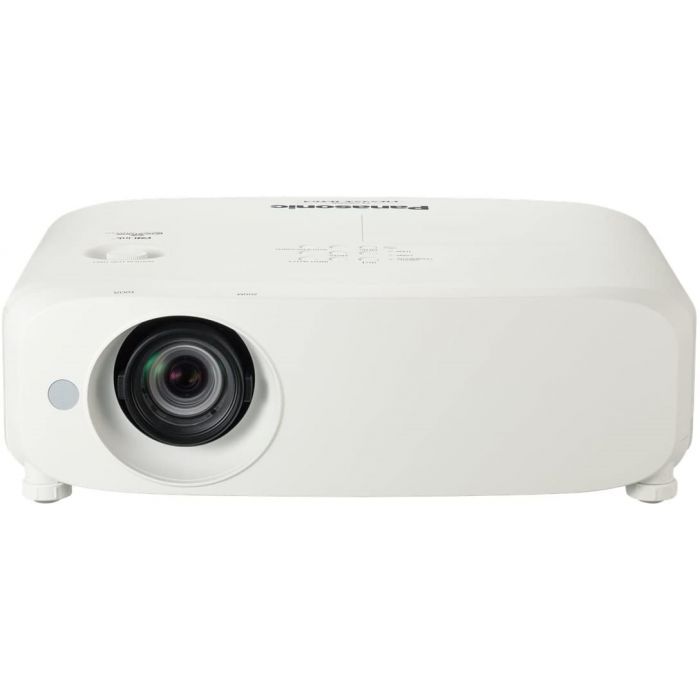

Panasonic PT-VW545NU 3 lcd high brightness portable projector (5500lm wxga 10000:1 contrast 16x zoom wireless network miracast digital link usb viewer display daylight view basic rgb hdmi x 2 rj45 aud

Precio especial $21,254.00 IVA incluido + Envio $150 MXN
Antes $24,655.00
Disponible 0 Pzas
Agotado
pub
MX0000081951
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo


Español

Panasonic PT-VW545NU. Brillo de proyector: 5500 lúmenes ANSI Tecnología de proyección: 3LCD Resolución original del proyector: WXGA (1280x800). Duración de lámpara: 5000 h Potencia de bombilla: 280 W Tipo de lámpara: UHM. Intervalo de longitud focal: 1531 - 2464 mm Enfoque: Manual Rango de apertura: 16 - 19. Señal analógica: NTSCNTSC 4.43PALPAL 60PAL MPAL NSECAM Formatos gráficos soportados: 640 x 400640 x 480 (VGA)1920 x 1080 (HD 1080)1920 x 1200 (WUXGA) Formato de vídeo soportado: 480i480p576i576p720p1080i1080p. Tipo de conector HDMI: De tamaño completo Tipo de serie de interfaz: RS-232C.
PRINCIPALES CARACTERÍSTICAS
Tecnología de proyección: 3LCD
Resolución: WXGA (1280x800)
Brillo de proyector: 5500 lúmenes ANSI
Número de puertos HDMI: 2 Wifi: Si
PESO Y DIMENSIONES
Altura: 125 mm
Profundidad: 332 mm
Peso: 49 kg
Ancho: 389 mm
MEDIOS DE ALMACENAJE
Tarjeta de lectura integrada: No
Tipo de reproductor de disco óptico: No se incluye
PUERTOS E INTERFACES
Cantidad de puertos USB 2.0: 2
Tipo de ranura CardBus PCMCIA: No
Ethernet LAN (RJ-45) cantidad de puertos: 1
Entrada de video compuesto: 1
Entrada de CA: Si
Entrada de audio (LR): 1
Puerto - RS-232: 1
Puerto DVI: No
Tipo de conector HDMI: De tamaño completo
Número de puertos HDMI: 2
Tipo de serie de interfaz: RS-232C
Cantidad de puertos VGA (D-Sub): 3

 Ingles

Description

On the bright side – up to 5500lm brightness With high brightness ranging from 5000lm to 5500lm, the PT-VZ580 series of portable projectors is at least 200lm brighter than the VZ570 series. You can expect deep blacks, pure highlights, crisp graphics and easy-to-read text. Picture perfect images A winning formula for imaging brilliance is complemented by a high 16000:1 contrast ratio. The PT-VZ580 series features resolutions from XGA to WUXGA, bringing native Full HD video to big screens in small spaces. This gives pin-sharp, detailed images for an immersive viewing experience. With the colour adjustment and correction function you can easily correct for slight variations in the colour reproduction range when using multiple projection, particularly in side-by-side configuration. More efficient parts for easy maintenance In the PT-VZ580 Series we have increased the air filter replacement cycle to a maximum of 7,000 hours and it can be washed twice: reducing the total cost of ownership. The high efficiency lamp also has a replacement cycle of 7,000 hours in ECO2 mode, reducing the need for maintenance over long periods of use, lowering maintenance costs and reducing environmental impact. Simple wireless connection with Plug and Share Thanks to Plug and Share, it s easier than ever to project wirelessly with the PT-VZ580 series. Plug and Share gives you the option connecting to the projector with nothing more than a USB stick. Simply plug a USB stick into the projector and the configuration files are automatically copied to it – there s no need to key in the network information. Then plug the USB into your computer and run Plug and Share straight from your USB stick – without having to install on your computer. Share your screen from your mobile with Miracast Several projectors in the PT-VZ580* Series come with Advanced Miracast for an improved wireless connection. Your Android device forms a direct Wi-Fi connection with the projector so you can discover it and connect to share your screen. With Advanced Miracast it takes a third less time to connect and the connectivity ratio is increased by 40% (compared to the VZ57N series). The projectors are the first series to support Moderator Mode and the Cut-In function, making them perfect for collaborating in meetings. Miracast is available with the following models: PT-VZ585N, PT-VW545N and PT-VX615N Flexible installation Adding to the range of options for connecting wirelessly, wired connection is also more flexible for this series. You can connect with a single DIGITAL LINK cable with extended reach (up to 150m), giving you more possibilities when installing the projectors. The 1.6x zoom lens gives you the flexibility to project from a wide range of distances, making it easier to install the unit even when space is limited. DIGITAL LINK is available with the following models: PT-VZ585N, PT-VW545N and PT-VX615N Easy to see, even in bright rooms Daylight View Basic technology makes it possible to see images clearly, even in brightly-lit rooms. A built-in sensor measures the light level in the room and the technology optimises the halftone colour and brightness levels accordingly.

Specifications

Projector
Number of colours 16.78 million colors
Projector native resolution WXGA (1280x800)
Native aspect ratio 16:10
Supported aspect ratios 4:3,16:10,16:9
Screen size compatibility 30 - 300'
Contrast ratio (typical) 16000:1
Vertical scan range 24 - 100 Hz
Horizontal scan range 15 - 91 kHz
Uniformity 85%
Matrix size 0.64'
Keystone correction, vertical -35 - 35°
Keystone correction, horizontal -35 - 35°
Projection technology 3LCD
Projector brightness 5500 ANSI lumens
Heat dissipation 1314 BTU/h
Light source
Light source type Lamp
Service life of light source 5000 h
Lamp type UHM
Lamps quantity 1 lamp(s)
Lamp power 280 W
Service life of light source (economic mode) 7000 h
Lens system
Zoom ratio 1.6:1
Zoom capability Yes
Focus Manual
Focal length range 15.31 - 24.64 mm
Aperture range (F-F) 1.6 - 1.9
Throw ratio 1.08 - 1.76: 1
Zoom type Manual
Video
Analog signal format system NTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM
Full HD No
Supported video modes 480i,480p,576i,576p,720p,1080i,1080p
Supported graphics resolutions 640 x 400,640 x 480 (VGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Ports & interfaces
HDMI connector type Full-size
VGA (D-Sub) ports quantity 3
HDMI ports quantity 2
USB 2.0 ports quantity 2
Composite video in 1
Audio (L/R) in 1
Serial interface type RS-232
DVI port No
CardBus PCMCIA slot type No
AC (power) in Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100 Mbit/s
Wi-Fi Yes
Wi-Fi standards 802.11a,802.11b,802.11g,802.11n
Ethernet LAN (RJ-45) ports 1
Storage
Optical disc player type Not included
Card reader integrated No
Features
HDCP Yes
Noise level 37 dB
Noise level (economic mode) 29 dB
Multimedia
Built-in speaker(s) Yes
Number of built-in speakers 1
RMS rated power 10 W
Design
Market positioning Portable
Product type Standard throw projector
Housing material Plastic
Product colour White
LED indicators Yes
Placement Ceiling
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power source AC
Power consumption (typical) 385 W
Power consumption (standby) 12 W
Software
Windows operating systems supported Yes
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 106299.2' (0 - 2700 m)
Weight & dimensions
Weight 10.8 lbs (4.9 kg)
Width 15.3' (389 mm)
Depth 13.1' (332 mm)
Height 4.92' (125 mm)
Packaging content
Remote control included Yes
Remote control type IR
Cables included AC
Other features
RS-232 ports 1
Más información
MarcaPanasonic
MPN:PT-VW545NU
