Otros WWCLP1701-NAR sato rfid cl4nx plus 203dpi 41" thermal transfer printer uhf lanusbser & rtc

Precio especial $81,530.00 IVA incluido + Envio $150 MXN
Antes $94,575.00
Disponible 1 Pzas
sku: WWCLP1701-NAR
pub
MX0000081921
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo


Description

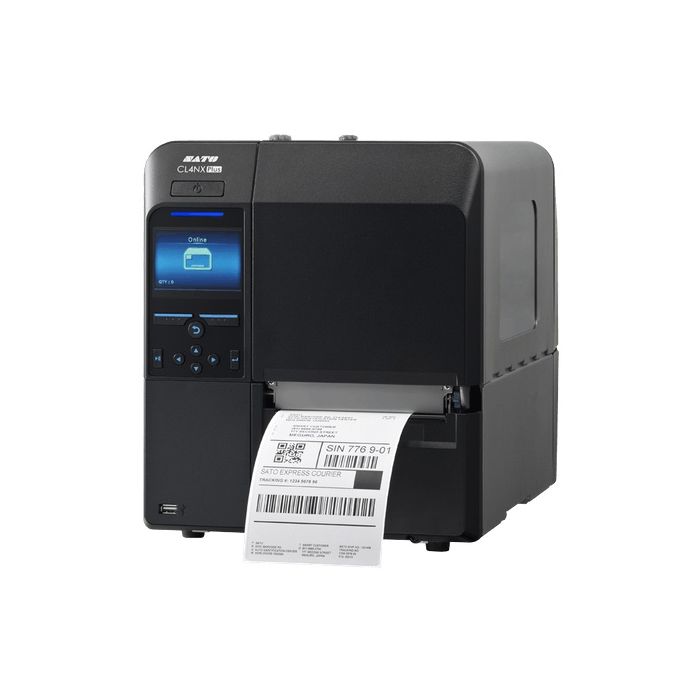

SATO s CL4NX Plus Printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more. Ease of Use Built with integrity, designed with the operator and productivity in mind, CL4NX Plus is the next evolution in this product series and will surpass your expectations of today s printing technology. With the support of up to 10-inch (254mm) OD of media and 1968-foot (600m) ribbon and incorporating Smart Print head technology to keep track of usage specific to the print head installed. The platen roller with the Pure Line indicator provides a visual wear indicator so users can be proactive when it is necessary to change this critical component. Speaking of those consumable components, the CL4NX Plus is still one of the easiest industrial tabletop printer models to replace the print head and platen roller with no tools required. Micro Label Print Mode The Micro Label Print Mode provides higher print accuracy for small pitch labels and can even dispense labels as small as 10mm. Using SATO Application Enabled Printing (AEP), you can create custom standalone applications that can be run directly on the printer independent of host software and connect peripheral devices directly to the printer such as keyboards, weigh scales, barcode scanner for data input. RFID Businesses can save labor, speed up their operations and enjoy many advantages from using the CLNX Plus RFID Series of printers. These RFID Series of printers can print text and barcodes on UHF, HF and NFC tags/labels and encode data in their embedded chips at the same time. In addition to being equipped with on-screen menus that save users the trouble of adjusting antenna position manually, the printer is capable of checking RFID chips prior to encoding to verify their readiness to use and prevent failures. The CLNX Plus RFID Printers are rich in Benefits and Features. SATO RF Analyze (SRA) function optimizes the antenna and inlay setting automatically for fast and stable encoding. Users can now find the best settings to encode RFID tags/tags when their characteristics vary randomly due to lot differences or adjusting the write/read conditions as needed when encoding errors appear. Registering commonly used settings, can save up to 10 write/read tags/labels types. The user can now select and load these store settings to encode multiple media with the same printer. Having a compatibility with specialty RFID labels/tags supports the encoding of various RFID labels/tags including tags used with metals. 60° Wide Print Head Opening with Pure Line Platen Roller Best in class head opening of 60° will allow easier access to load media and perform routine maintenance. This Pure Line wear indicator on the platen roller provides a visual gauge as to when the platen needs to be replaced. Micro Label Print Mode Higher tolerance (+/-0.7 mm) for Increased print image accuracy when using small label sizes (<53mm length). 10-inch OD Media Supply and 600m ribbon More media per roll and longer ribbon lengths means less downtime replenishing supplies. 14 ips print speed at either 203 or 305 dpi! Up to 14 inches per second for fast batch printing. Best of class print speed at 305 dpi!

Specifications

Printing
Type POS printer
Print technology Direct thermal / Thermal transfer
Print speed 14 ips
Print speed 355 mm/sec
Maximum resolution 203 x 203 DPI
Performance
Type POS printer
Print technology Direct thermal / Thermal transfer
Print speed 14 ips
Print speed 355 mm/sec
Maximum resolution 203 x 203 DPI
Built-in barcodes CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, PDF417, QR Code, UPC-A, UPC-E
Paper handling
Maximum media length 98.4' (2.5 m)
Supported paper width 39.5 - 128 mm
Printing media thickness 0.06 - 0.268 µm
Maximum roll diameter 10' (25.4 cm)
Maximum printing width 4.09' (10.4 cm)
Ports & interfaces
Connectivity technology Wired & Wireless
USB 2.0 ports quantity 3
Bluetooth version 3.0+HS
Bluetooth Yes
USB port Yes
USB connector USB Type-A / USB Type-B
Serial interface Yes
Serial interface type RS-232C
Near Field Communication (NFC) Yes
Network
Ethernet LAN Yes
Print technology
Type POS printer
Print technology Direct thermal / Thermal transfer
Print speed 14 ips
Print speed 355 mm/sec
Print quality
Maximum media length 98.4' (2.5 m)
Maximum resolution 203 x 203 DPI
Maximum printing width 4.09' (10.4 cm)
Technical details
Maximum media length 98.4' (2.5 m)
Display type LCD
Maximum printing width 4.09' (10.4 cm)
Product colour Black
Built-in barcodes CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, PDF417, QR Code, UPC-A, UPC-E
Features
Product colour Black
Built-in barcodes CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, PDF417, QR Code, UPC-A, UPC-E
Design
Display diagonal 3.5'
Display type LCD
Colour display Yes
Product colour Black
Built-in display Yes
Display
Display diagonal 3.5'
Display type LCD
Colour display Yes
Built-in display Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power source type AC
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 30 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 30 - 80%
Weight & dimensions
Width 18' (457 mm)
Depth 10.7' (271 mm)
Height 12.6' (321 mm)
Weight 33.3 lbs (15.1 kg)
Más información
MarcaOtros
MPN:WWCLP1701-NAR
