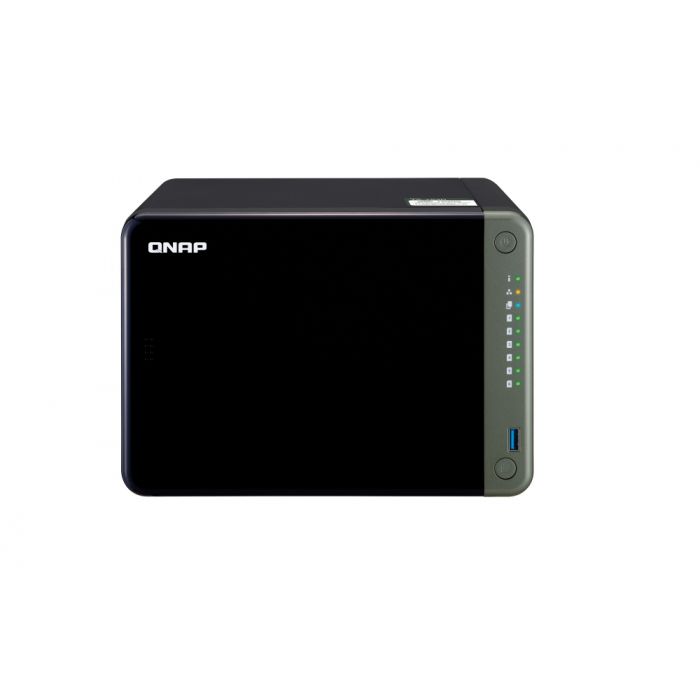

Qnap TS-653D-4G-US ts-653d 6-bay desktop nas. intel celeron gemini lake j4125 quad-core 2.0ghz with 4gb ddr4 ram, 2 x 2.5gbe
Precio especial $19,360.00 IVA incluido + Envio $150 MXN
Antes $22,458.00
Disponible 0 Pzas
Antes $22,458.00
Disponible 0 Pzas
Agotado
pub
MX0000080431
Specifications
| Storage | |
|---|---|
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Bad block scan | Yes |
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32,HFS+,NTFS,exFAT,ext3,ext4 |
| RAID levels | 0,1,5,6,10,50,60,JBOD |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5' |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Tjunction | 105 °C |
| Thermal Design Power (TDP) | 10 W |
| Processor threads | 4 |
| Processor socket | BGA 1090 |
| Processor package size | 25 x 24 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Gemini Lake Refresh |
| Processor cache | 4 MB |
| Processor boost frequency | 2.7 GHz |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4+1x2,4x1,2x1+1x2+1x2 |
| On-board graphics adapter model | Intel® UHD Graphics 600 |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 8 GB |
| Processor ARK ID | 197305 |
| Processor frequency | 2 GHz |
| Processor family | Intel® Celeron® |
| Processor model | J4125 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 GB |
| Memory clock speed | 2400 MHz |
| Maximum RAM supported | 8 GB |
| Memory slots | 2 |
| Flash memory | 4096 MB |
| Memory form factor | SO-DIMM |
| Network | |
| Load balancing system | Yes |
| Link aggregation | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| WLAN adapter supported | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32,HFS+,NTFS,exFAT,ext3,ext4 |
| RAID levels | 0,1,5,6,10,50,60,JBOD |
| Graphics | |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter model | Intel® UHD Graphics 600 |
| On-board graphics adapter ID | 0x3185 |
| On-board graphics adapter dynamic frequency (max) | 750 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter burst frequency | 750 MHz |
| On-board graphics adapter base frequency | 250 MHz |
| Maximum on-board graphics adapter memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| Design | |
| Cooling type | Active |
| Fan diameter | 3.54' (9 cm) |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| LED indicators | HDD, LAN, Power, Status, USB |
| Chassis type | Tower |
| Cable lock slot | Yes |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Product colour | Black |
| Noise level | 21.3 dB |
| LED indicators | HDD, LAN, Power, Status, USB |
| Chassis type | Tower |
| Buzzer | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Backup button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Built-in BitTorrent client | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Web-based management | Yes |
| Security algorithms | 256-bit AES,FIPS 140-2,HTTPS |
| Reset button | Yes |
| Operating system version | 4.4.2 |
| Operating system installed | QNAP Turbo System |
| Noise level | 21.3 dB |
| Management protocols | SNMP |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Third-party support | Yes |
| Snapshot | Yes |
| USB copy function | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 3.54' (9 cm) |
| Fan voltage | 12 V |
| Number of fans | 2 fan(s) |
| Security | |
| Cable lock slot type | Kensington |
| Security algorithms | 256-bit AES,FIPS 140-2,HTTPS |
| Cable lock slot | Yes |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operating system version | 4.4.2 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Management protocols | SNMP |
| Power | |
| Power supply location | External |
| Power supply unit (PSU) capacity | 120 W |
| Fan voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 35.437 W |
| Power consumption (sleep) | 18.634 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 9.25' (235 mm) |
| Depth | 8.9' (226 mm) |
| Height | 6.61' (168 mm) |
| Weight | 6.33 lbs (2.87 kg) |
| Package weight | 10.1 lbs (4.56 kg) |
| Packaging content | |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Processor special features | |
| UART | Yes |
| Thermal Monitoring Technologies | Yes |
| Number of execution units | 12 |
| Maximum number of PCI Express lanes | 6 |
| Intel® Turbo Boost Technology | No |
| Intel® Smart Response Technology | No |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Memory types supported by processor | DDR4-SDRAM,LPDDR4-SDRAM |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 10.1 lbs (4.56 kg) |
| Cables included | AC, LAN (RJ-45) |
| Other features | |
| Processor ARK ID | 197305 |
| Marca | Qnap |
|---|---|
| MPN: | TS-653D-4G-US |
